Automatic Transmission/Transaxle: Tools and Equipment





Required Service Material

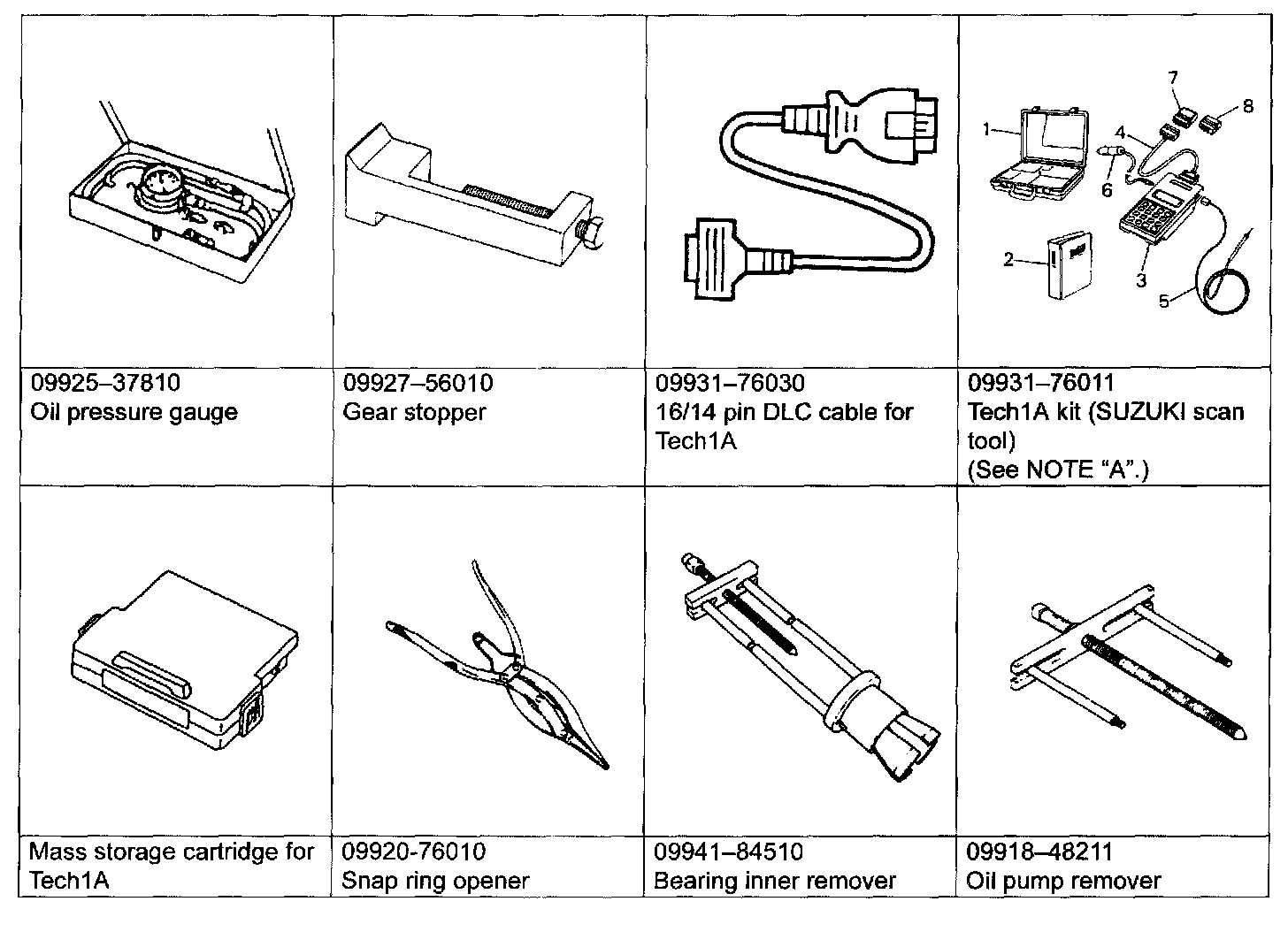

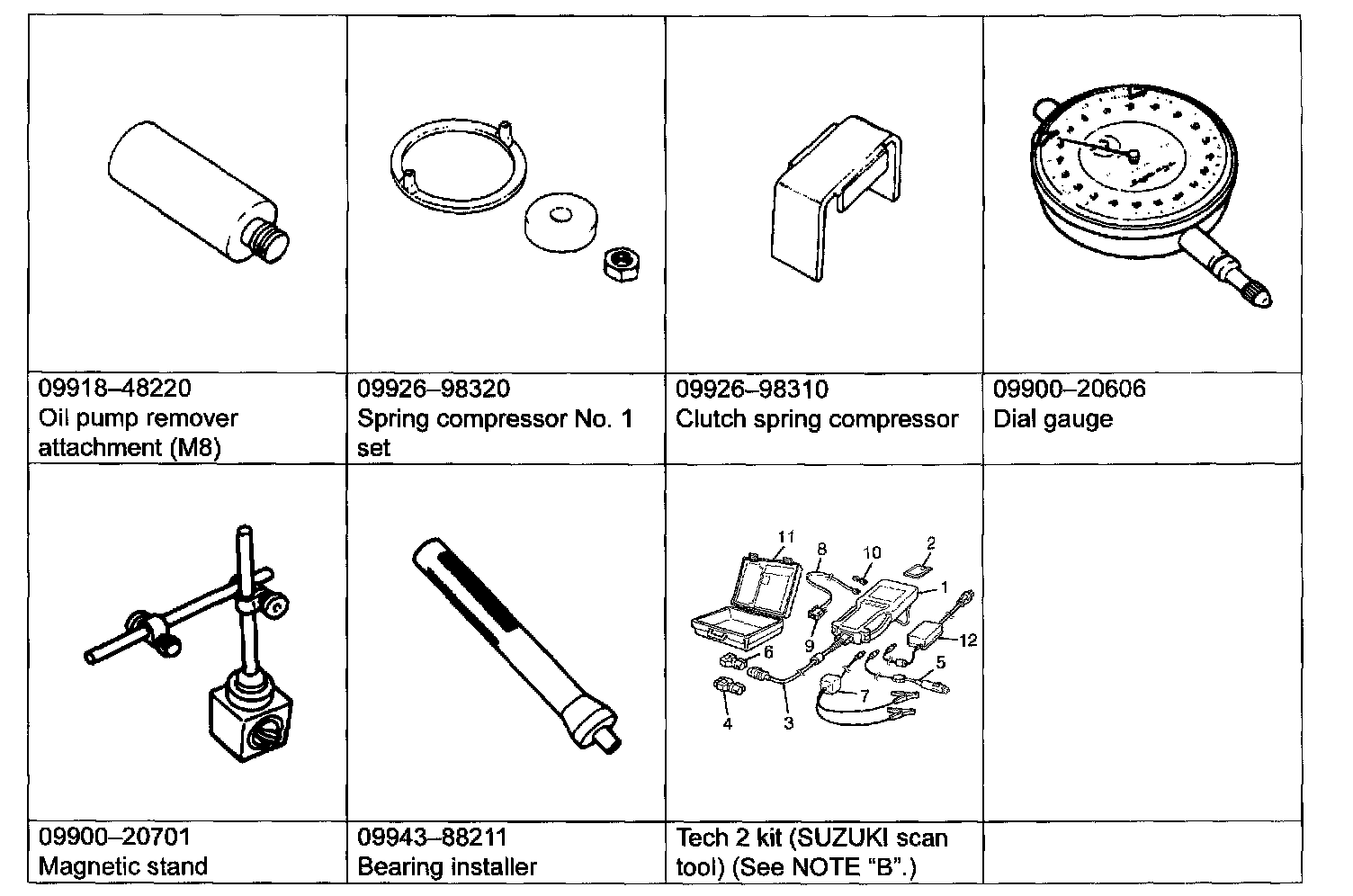

Special Tool








NOTE:
^ "A": This kit includes the following items and substitutes for the Tech 2 kit.
1. Storage case, 2. Operator's manual, 3. Tech 1A, 4. DLC cable (14 / 26 pin, 09931-76040), 5. Test lead/ probe, 6. Power source cable, 7. DLC cable adaptor, 8. Self-test adaptor
^ "B": This kit includes the following items and substitutes for the Tech 1A kit.
1. Tech 2,2. PCMCIA card, 3. DLC cable, 4. SAE 16119 adapter, 5. Cigarette cable,
6. DLC loopback adapter, 7. Battery power cable, 8. RS232 cable, 9. RS232 adapter,
10. RS232 loopback connector, 11. Storage case, 12. Power supply
