Accessory Control Display: Service and Repair
INFORMATION DISPLAY REMOVAL AND INSTALLATIONRemoval 1.

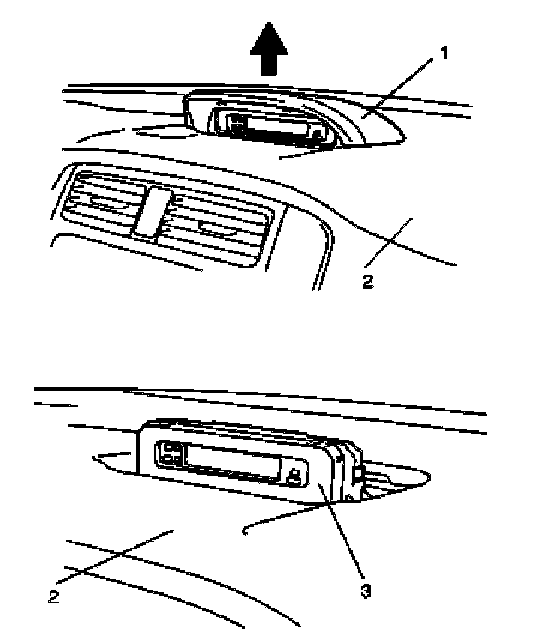

Remove information display garnish (1) from instrument panel (2) pulling it arrow direction as shown.
2.
Remove 2 mounting screws of information display (3).
3.
Remove information display (3) from instrument panel (2).
4.
Disconnect information display coupler.
InstallationReverse removal procedure.
