Accessories and Optional Equipment: Testing and Inspection

AUDIO SYSTEM (IF EQUIPPED) SYMPTOM DIAGNOSIS

Audio System (If Equipped) Symptom Diagnosis (Part 1):

RADIO

NOTE: Electronic part / system with undiagnosed problem may cause electromagnetic interference. Electromagnetic interference condition may have poor radio reception. To test for presence of electromagnetic interference in part / system, perform the following procedures.

1. Turn ignition switch to OFF.
2. Systematically disconnect the electronic part / system connector(s) one at a time.
3. Turn ignition switch to ON.
4. Check any improvement in radio reception.

Audio System (If Equipped) Symptom Diagnosis (Part 2):

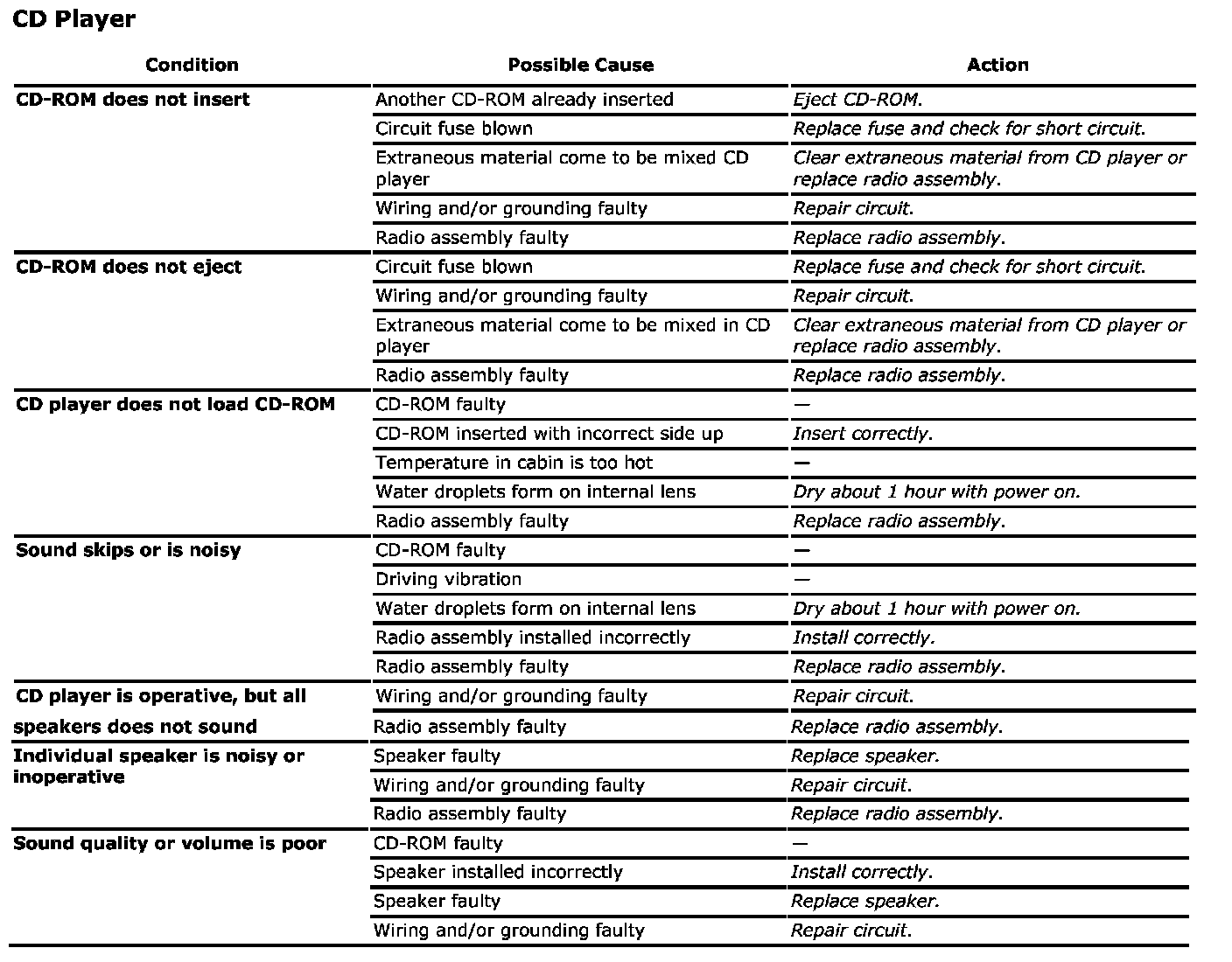

CD PLAYER
