Rear Door Assembly

REAR DOOR LOCK ASSEMBLY REMOVAL AND INSTALLATION

Reference: Rear Door Lock Assembly Components

Removal
1. Remove rear door glass referring to Rear Door Glass Removal and Installation.

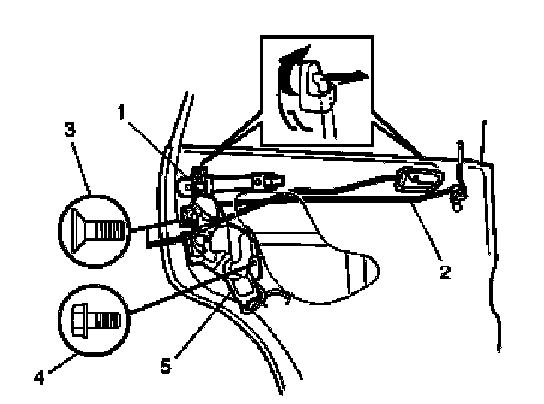

2. Disconnect door opening control rod (1) and door latch control rod (2).
3. Disconnect door lock motor lead wire (if equipped).




4. Loosen door latch mounting screw (3), door latch actuator bolt (4) and remove door latch Assembly (5).

Installation
Reference: Rear Door Lock Assembly Inspection
Reverse removal procedure to install rear door lock assembly referring to the following instruction and Front Door Lock Assembly Removal and Installation.
