Keyless Entry System Circuit Inspection

Keyless Entry System Circuit Inspection

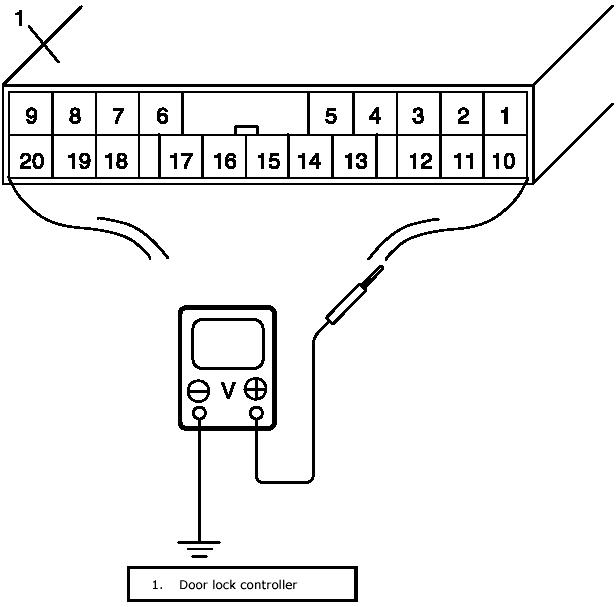

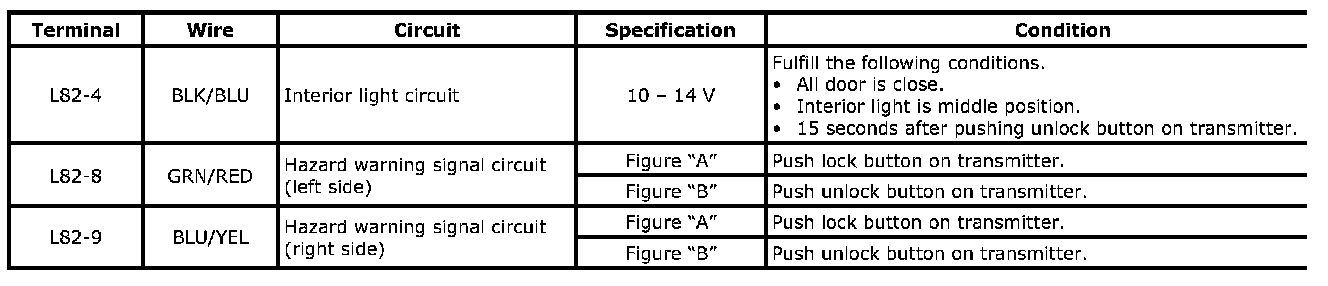

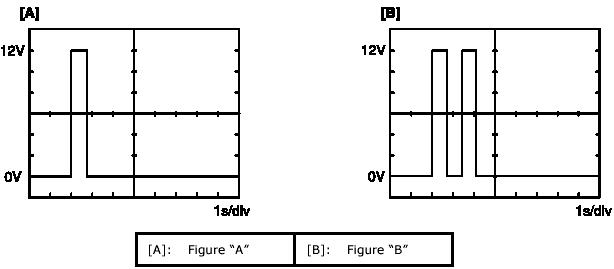

Check that the voltage between the following terminals and body ground are specifications under each conditions.
If check result is not as specified, check applicable circuit.
If circuit is normal, recheck keyless entry system circuit as follows.

1. Substitute a known-good door lock controller and transmitter.
2. Recheck keyless entry system circuit.
