Trunk Lid Lock Assembly (For Sedan Model) Removal and Installation

TRUNK LID LOCK ASSEMBLY (FOR SEDAN MODEL) REMOVAL AND INSTALLATION

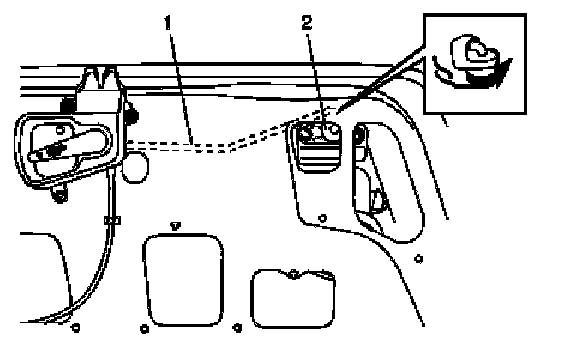

Reference: Trunk Lid Lock Assembly (for Sedan Model) Components

Removal
1. Disconnect trunk lid lock control rod (1).




2. Remove trunk lid lock cylinder (2).
3. Loosen trunk lid latch bolts (1) and clip (2), and remove trunk lid latch assembly (3).




4. Disconnect trunk lid opener wire (4).

Installation

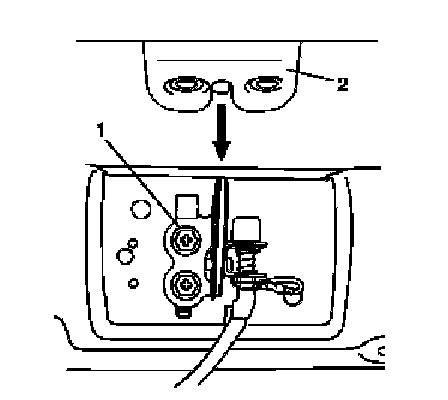

Reference: Trunk Lid Lock Assembly (for Sedan Model) Removal and Installation
Reverse removal procedure to install trunk lid lock assembly noting the following instruction.




- Adjust latch striker (1) so that its center aligns with the center of groove in trunk lid latch base (2).
