Blower Motor Relay: Testing and Inspection

Blower Motor Relay Inspection

1. Disconnect negative (-) cable at battery.
2. Remove glove box.

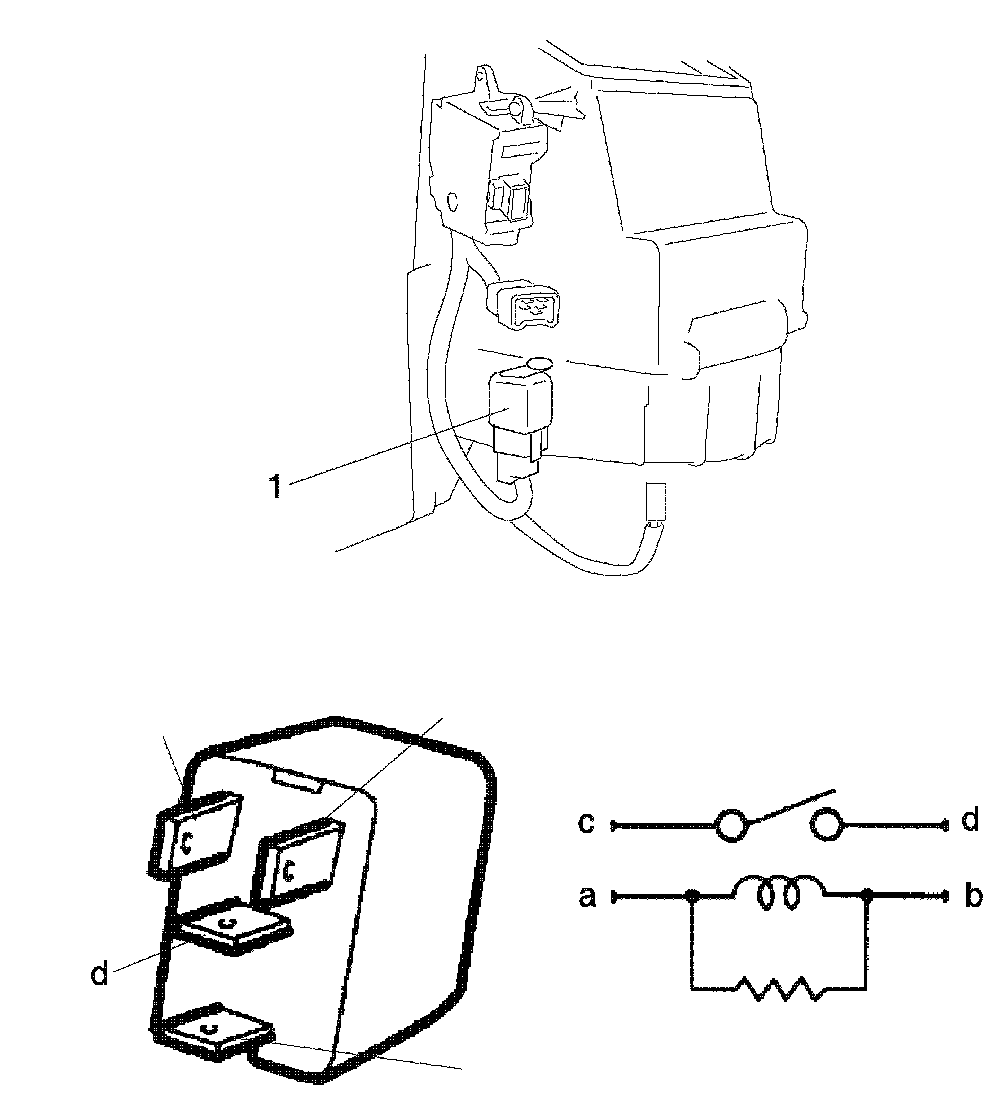

3. Remove blower motor relay (1).
4. Check if there is no continuity between terminal "c" and "d". If there is continuity, replace relay.
5. Check if there is continuity between terminals "c" and "d" when a 12 V battery is connected to terminals "a" and "b".
- If malfunction is found, replace it with a new one.
