ECM Power and Ground Circuit Check

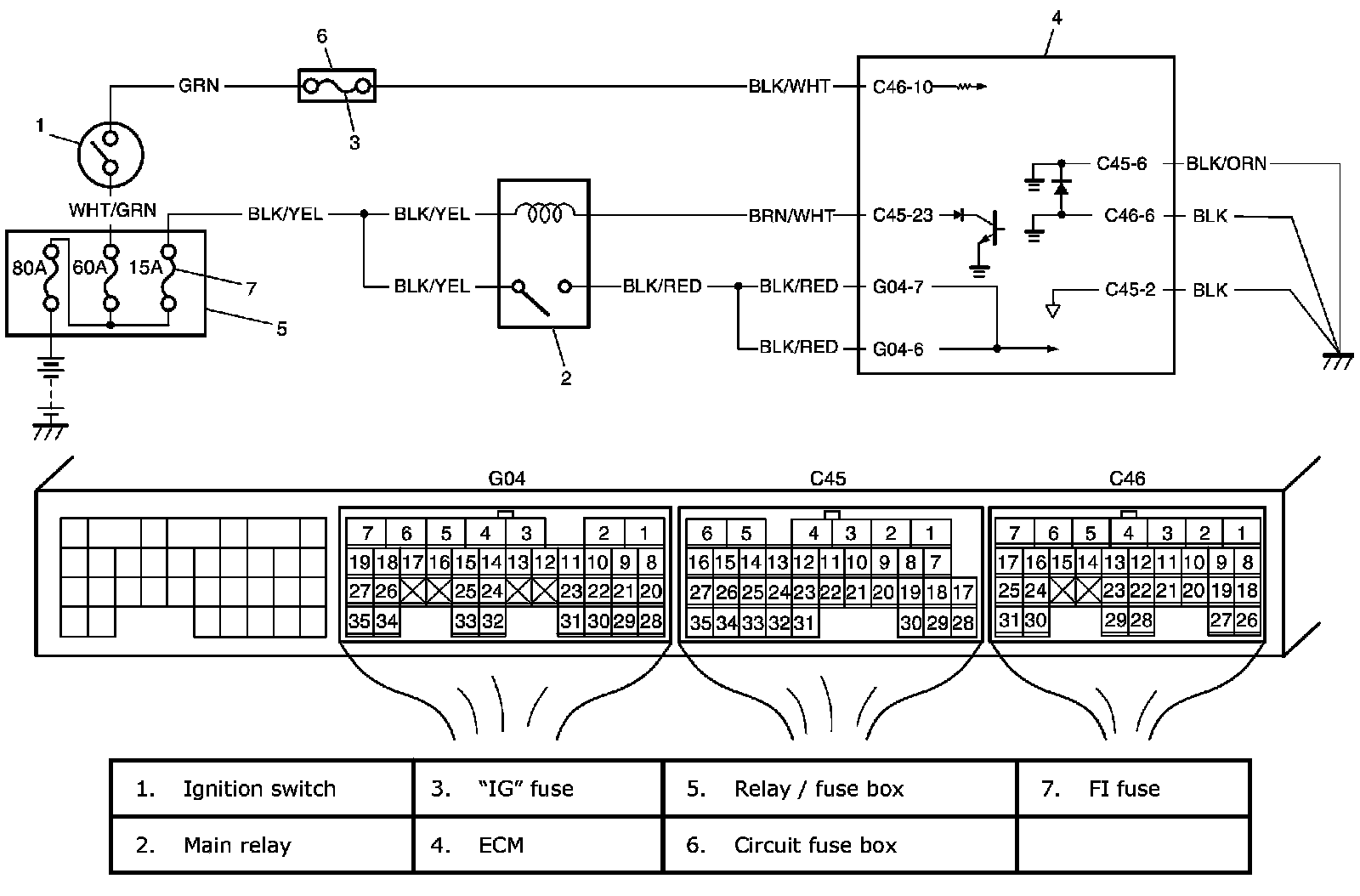

ECM Power and Ground Circuit CheckWiring Diagram:
Wiring DiagramCircuit DescriptionWhen the
ignition switch tuned ON, the main relay turns ON (the contact point closes) and the main power is supplied to ECM.

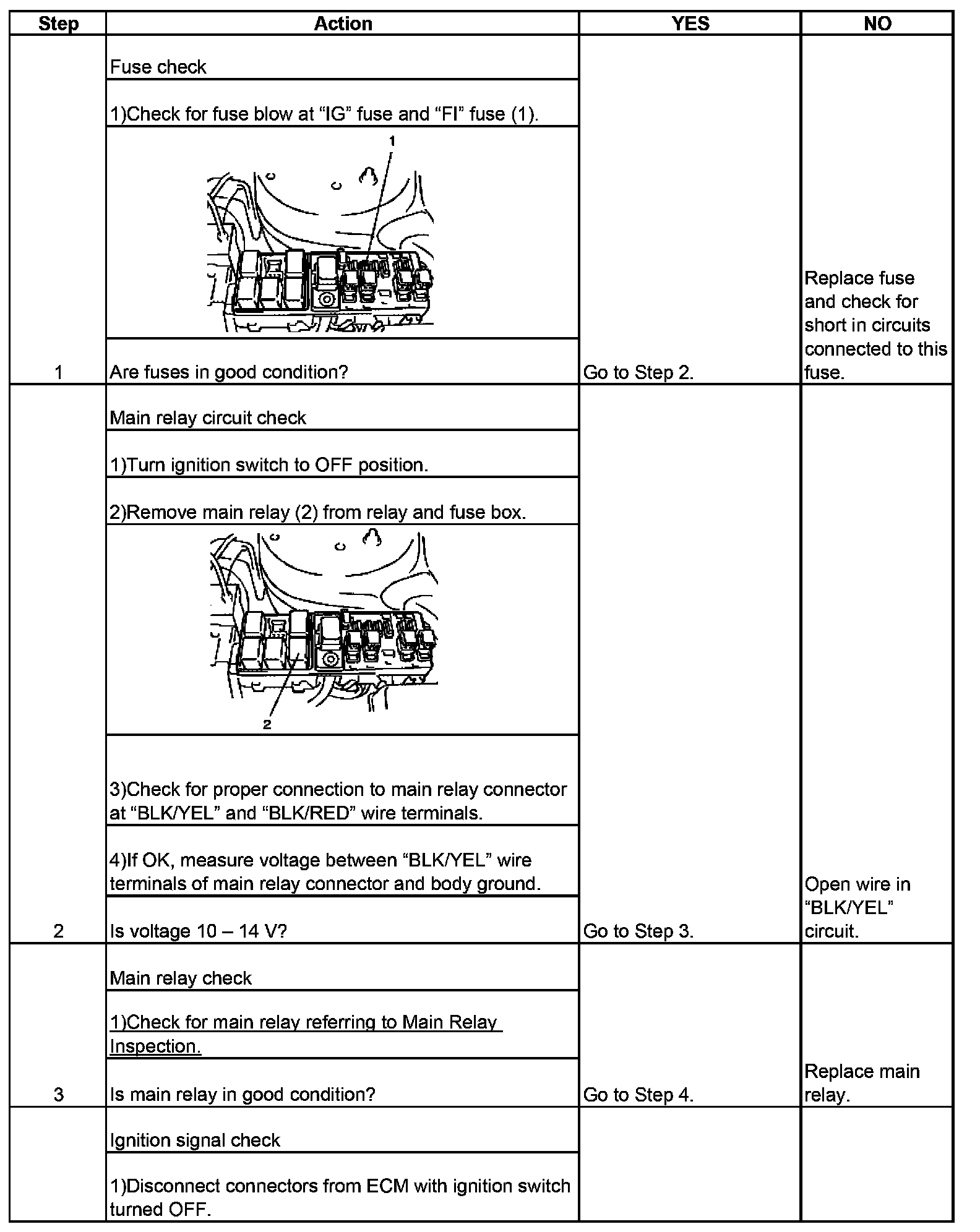

Step 1-4(Continued):

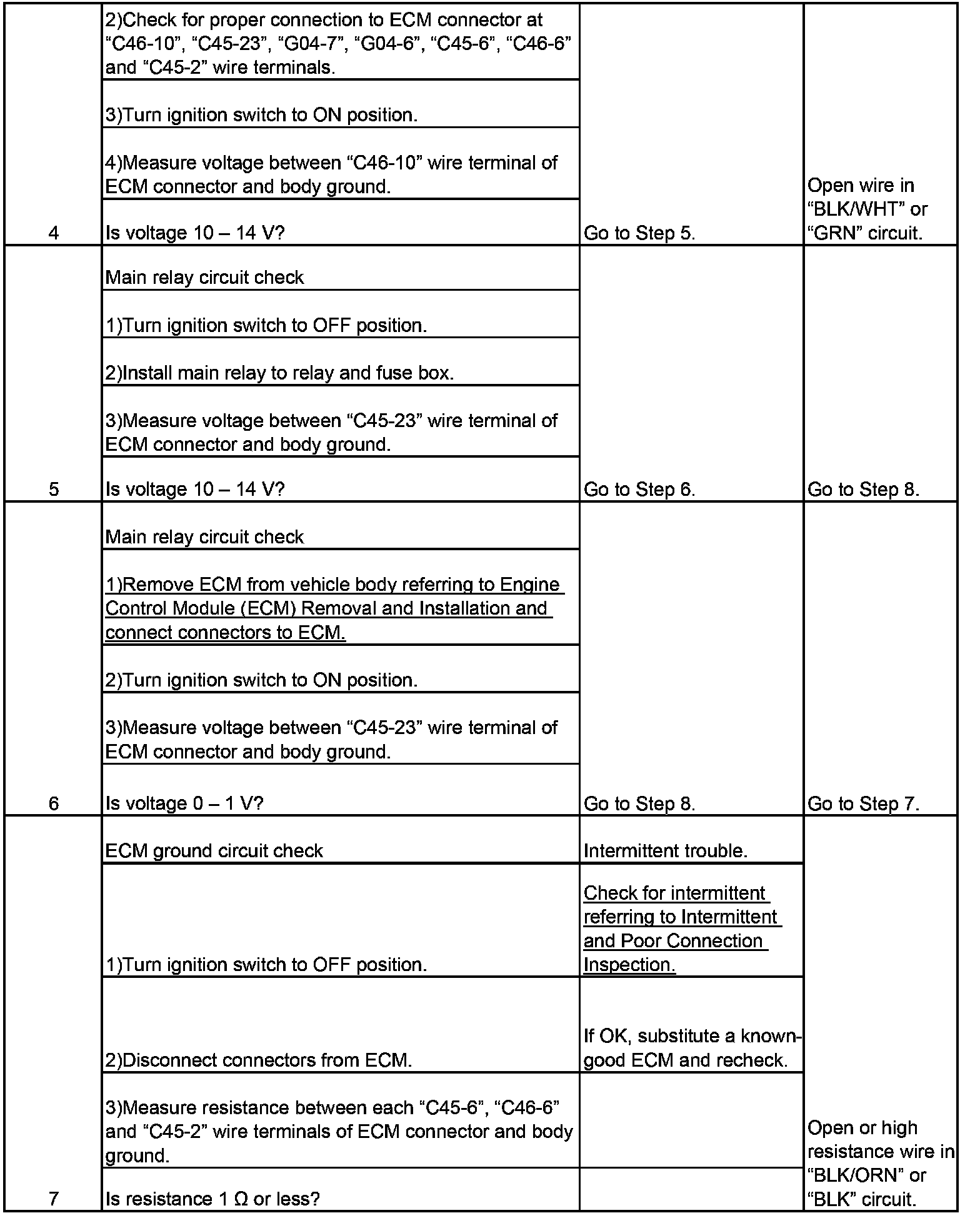

Step 4(Continued)-7:

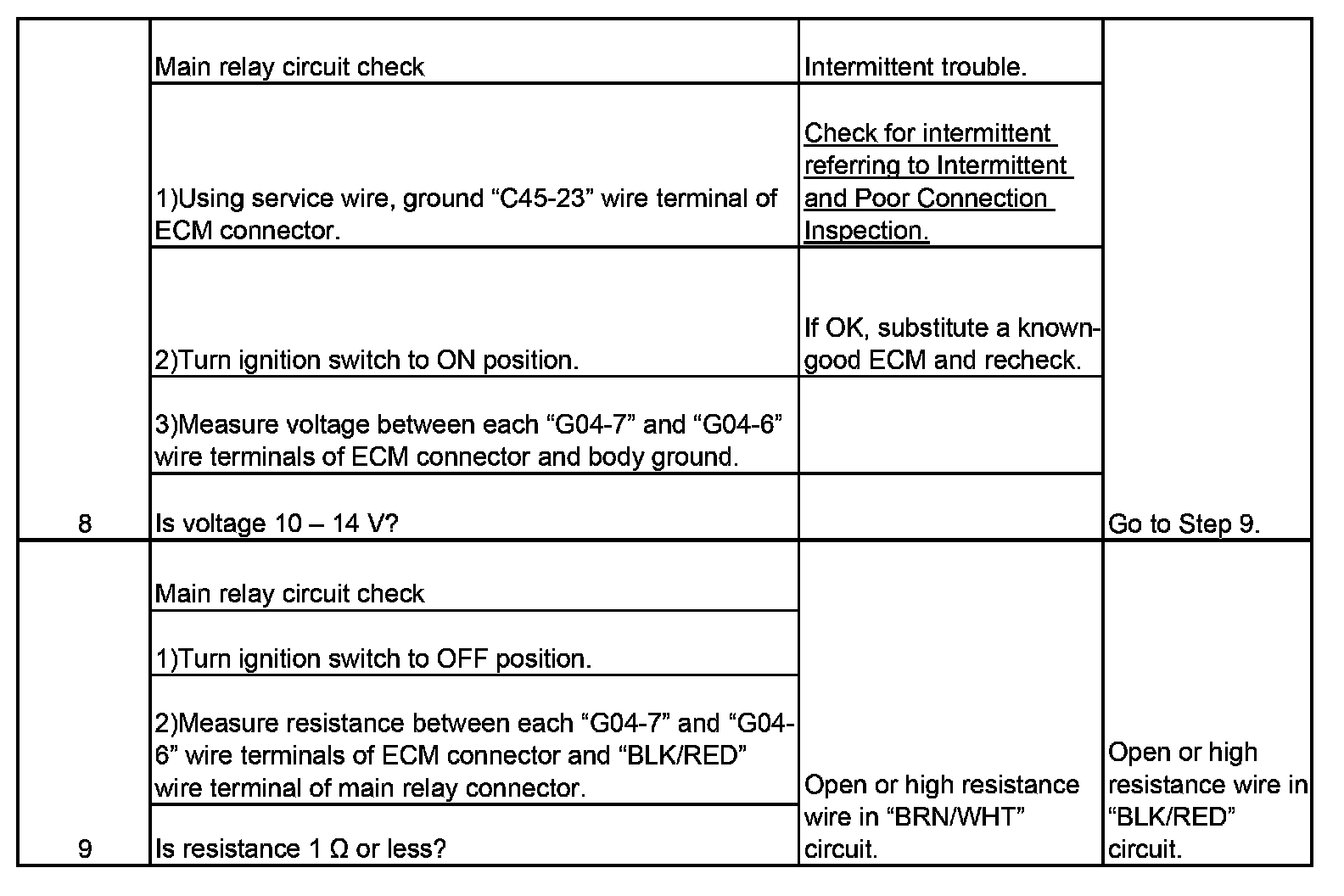

Step 8-9:
Troubleshooting
