Emissions - Revised DTC P0456 Diagnostic Procedures

AERIO

Section Title: Engine
TSB No. TS 08 02106

Division: Automotive
Category: Technical

SUBJECT:
MIL ON; DTC P0456
(EVAPORATIVE EMISSION SYSTEM LEAK DETECTED)

MODEL(S):
AERIO (RH423)

YEAR:
2006

CONDITION:
Service manual update of diagnostic procedures for DTC P0456 (Evaporative Emission System Leak Detected)

CAUSE:
Diagnostic procedure changes








CORRECTION:

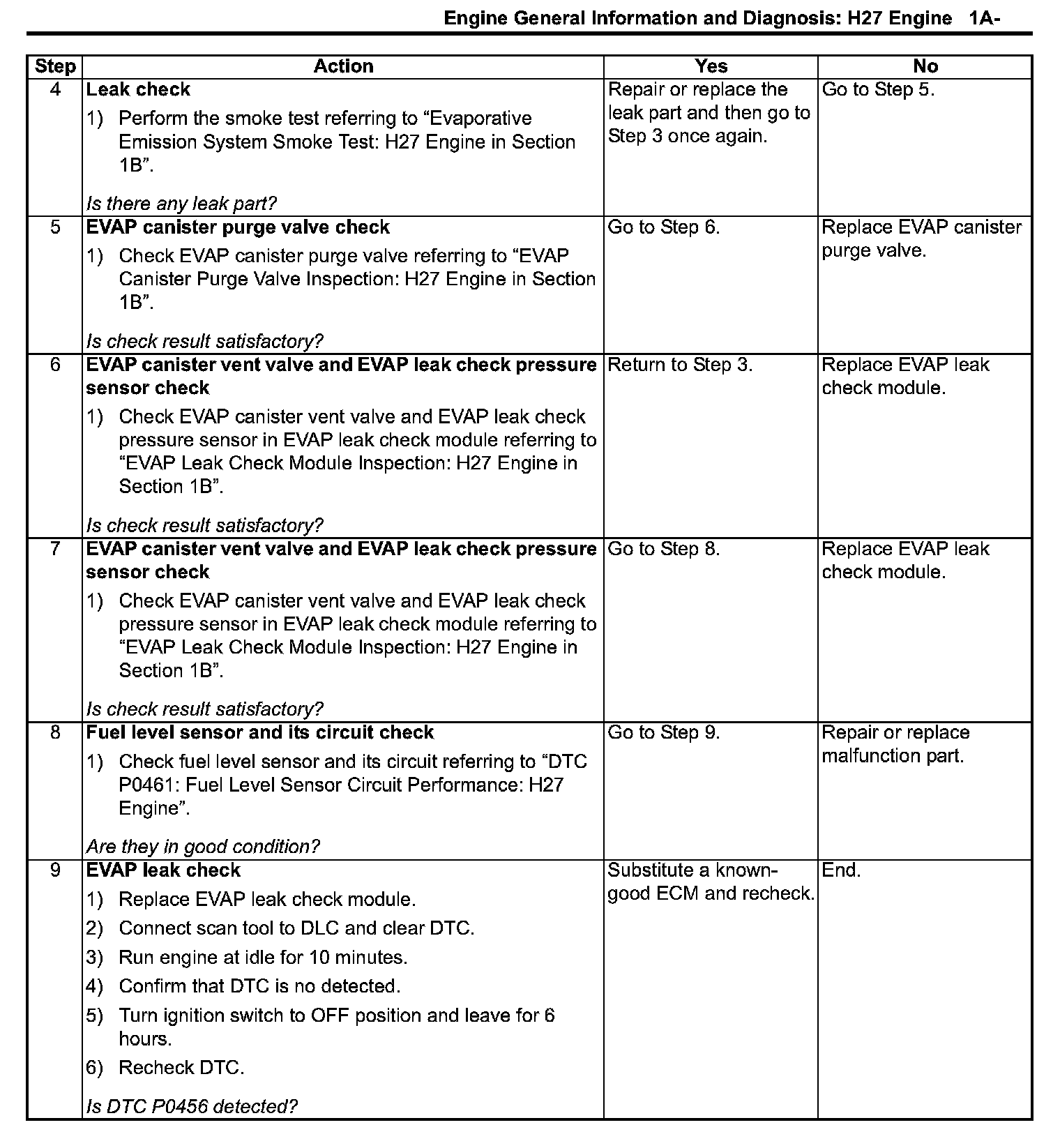

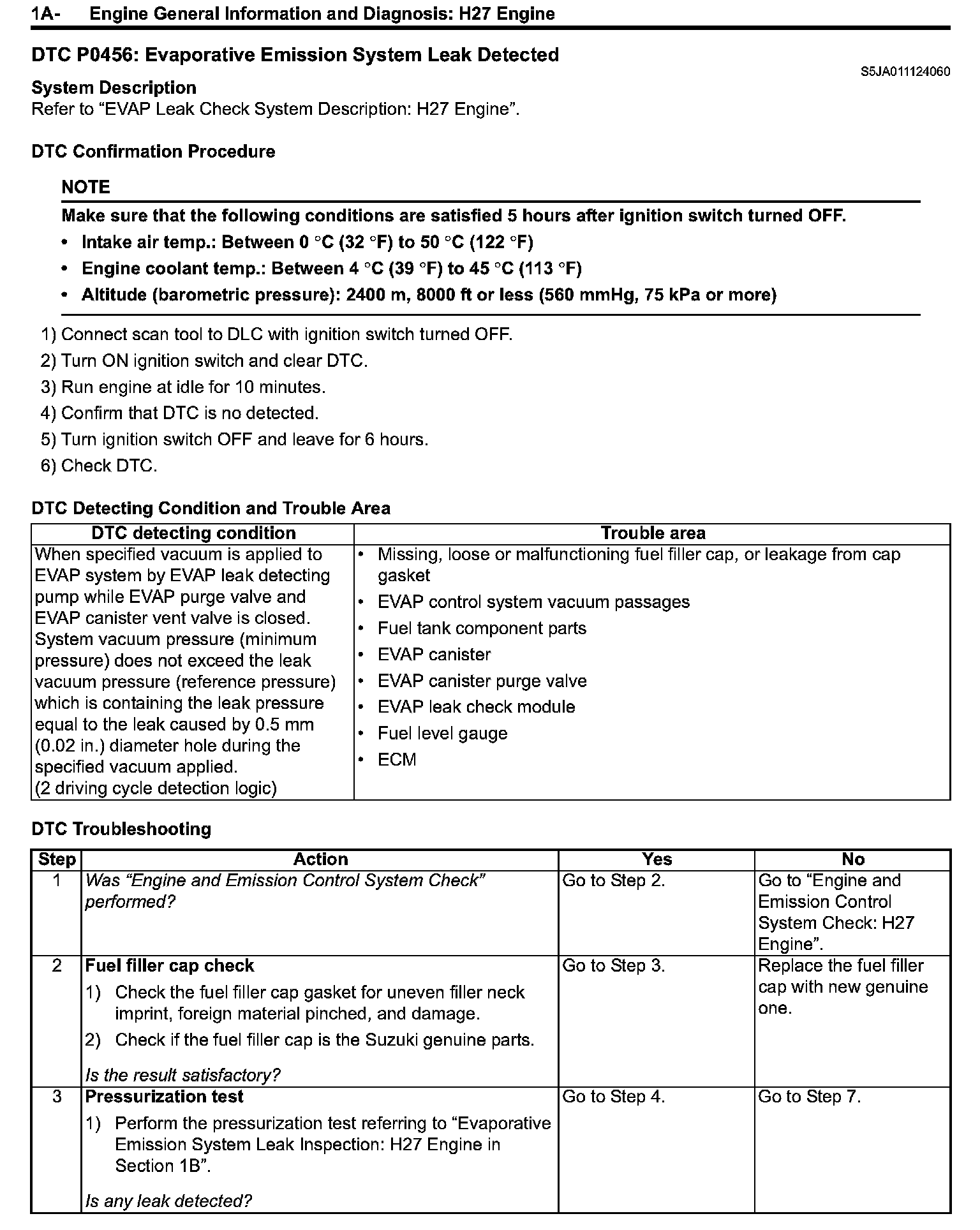

Begin by "crossing-out" the existing diagnostic information for DTC P0456 in the service manuals shown in the chart below. Then copy the attached pages and insert them into these manuals in their respective locations.





AFFECTED SERVICE MANUALS

NOTE:
These updates will appear in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been updated.
