Fuel Injector: Service and Repair
Fuel Injector Removal and InstallationRemoval
CAUTION: A small amount of fuel may be released when it is removed from delivery pipe.
Place a shop cloth under delivery pipe so that released fuel is absorbed in it.
1) Relieve fuel pressure.
2) Remove engine cover.
3) Disconnect couplers from each injector.
4) Remove delivery pipe from cylinder head.
5) Remove fuel injector.
Installation

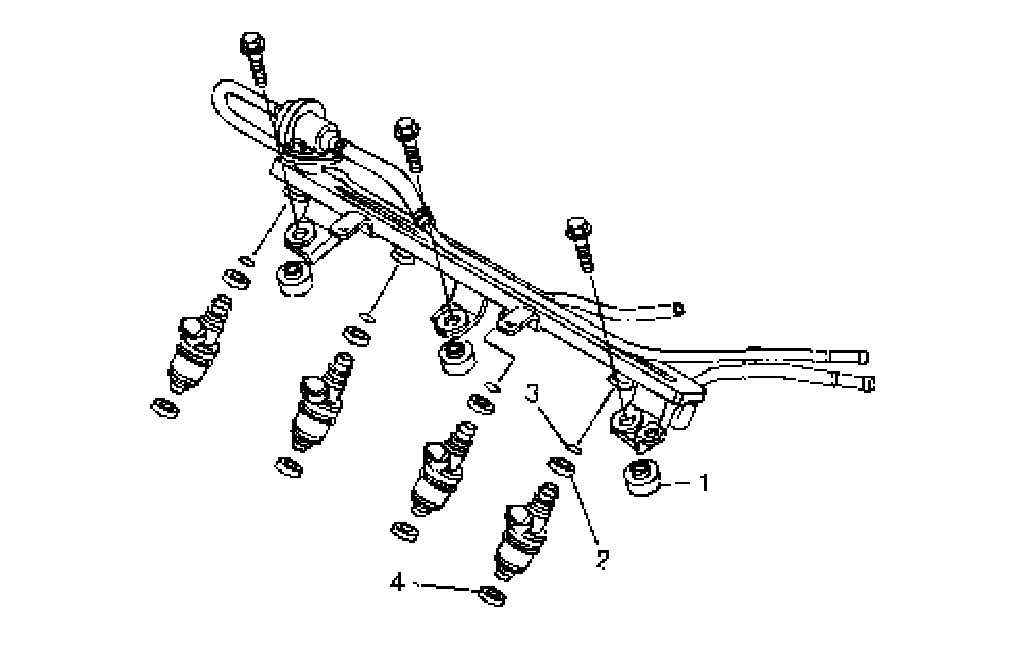

1) Replace injector O-ring (3) with new one using care not to damage it. Install grommet (2) to injector.
2) Check if insulator (1) is scored or damaged. If it is, replace with new one. Install insulators and cushions (4) to cylinder head.

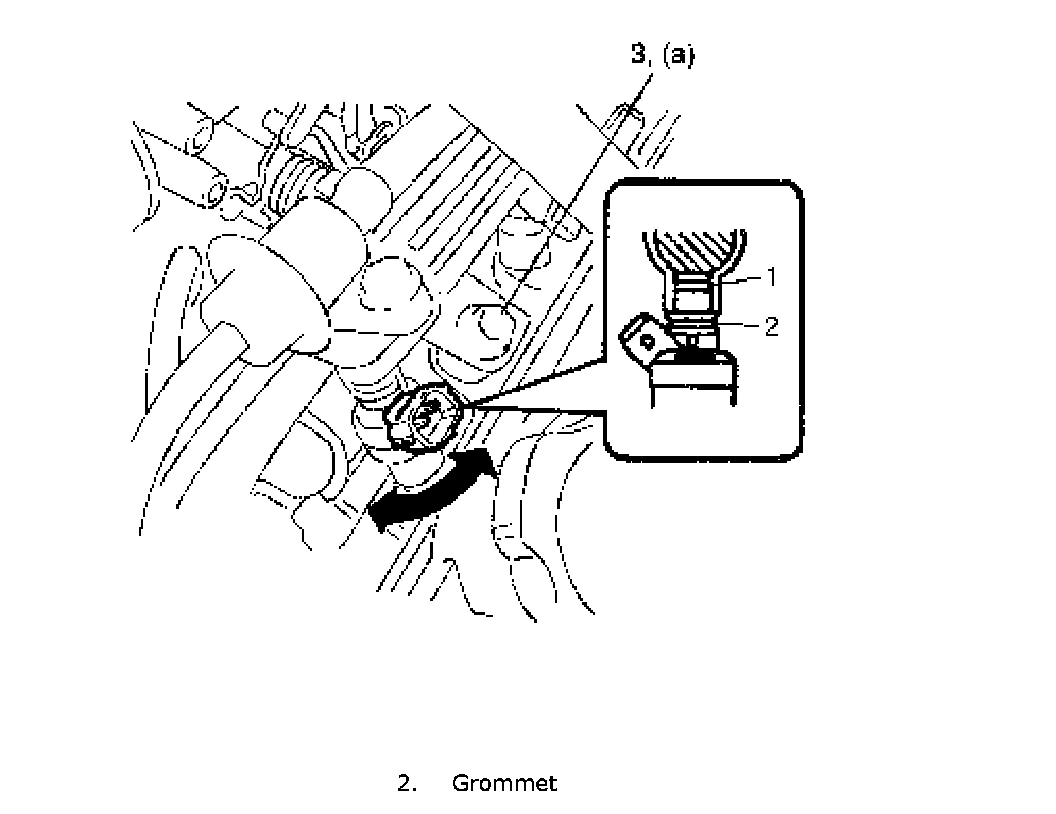

3) Apply thin coat of fuel to O-rings (1) and then install injectors into delivery pipe and cylinder head.
Make sure that injectors rotate smoothly. If not, probable cause is incorrect installation of O-ring. Replace O-ring with new one.
4) Tighten delivery pipe bolts (3) to specified torque and make sure that injectors rotate smoothly.
Tightening torque
Fuel delivery pipe bolts (a): 25 Nm (2.5 kgf-cm, 18.0 ft. lbs.)
5) Connect couplers to injector securely and clamp injector wire.
6) Install engine cover.
7) With engine "OFF" and ignition switch "ON", check for fuel leaks around fuel line connection.
