A/T Description

A/T Description
This automatic transaxle is a full automatic type with 3-speed plus overdrive (O/D).
The torque converter is a 3-element, 1-step and 2-phase type and is equipped with an electronically controlled lock-up mechanism. The gear shift device consists of 3 sets of planetary gear units, 3 disc type clutches, 3 disc type brakes, a band type brake and 3 one-way clutches.
The gear shift is done by selecting one of 6 positions (P, R, N, D, 2 and L) by means of the select lever installed on the floor. On the shift knob, there is an overdrive (O/D) off switch which prevents shift-up to the overdrive mode.

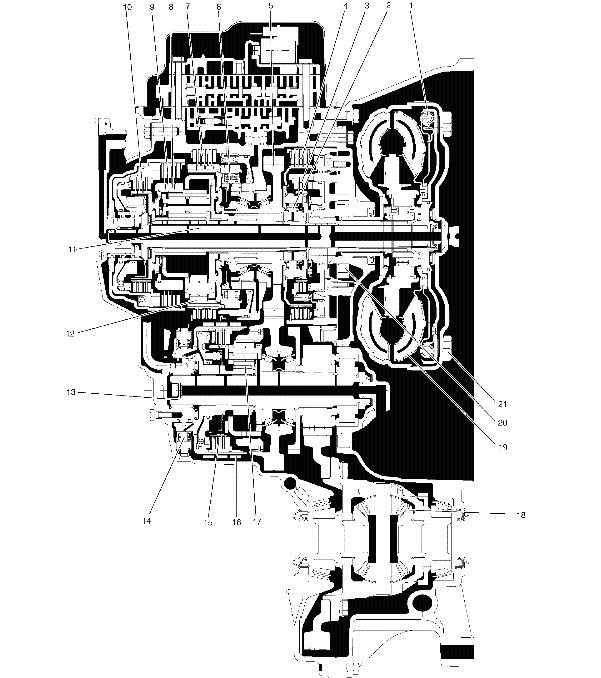

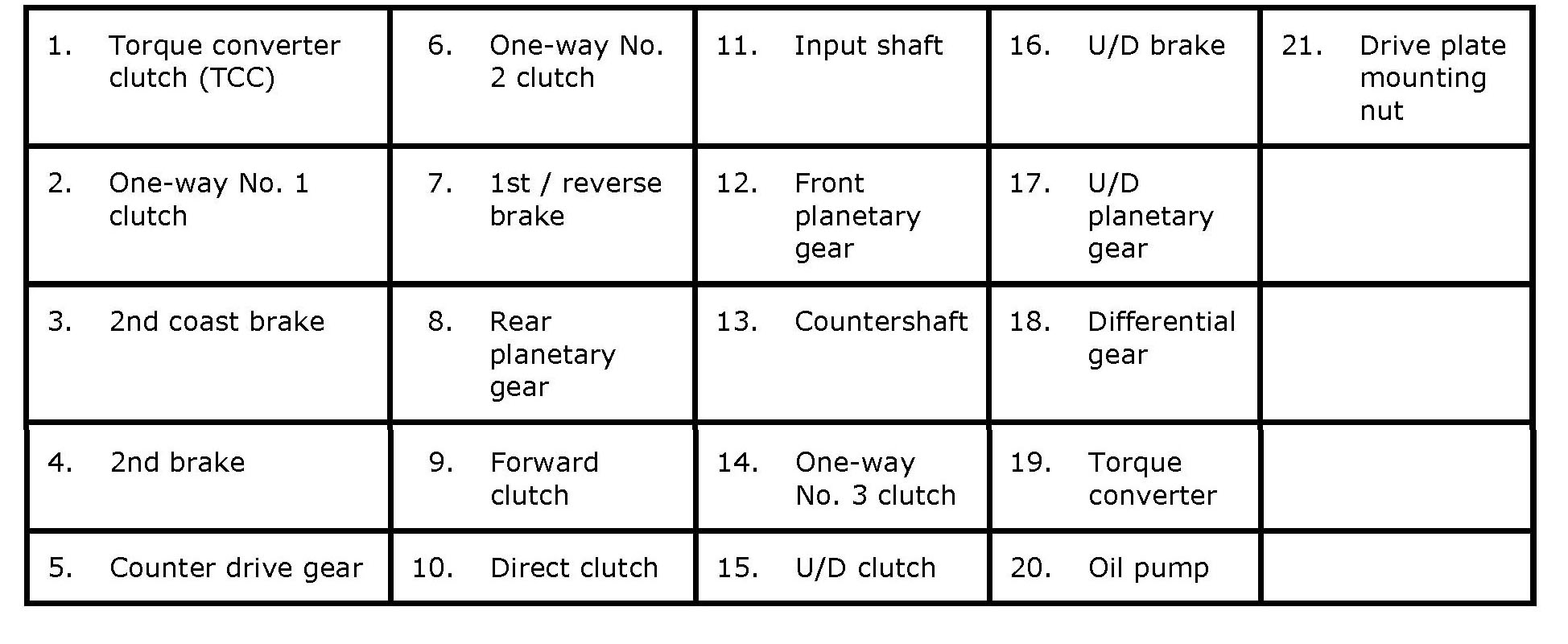

2WD

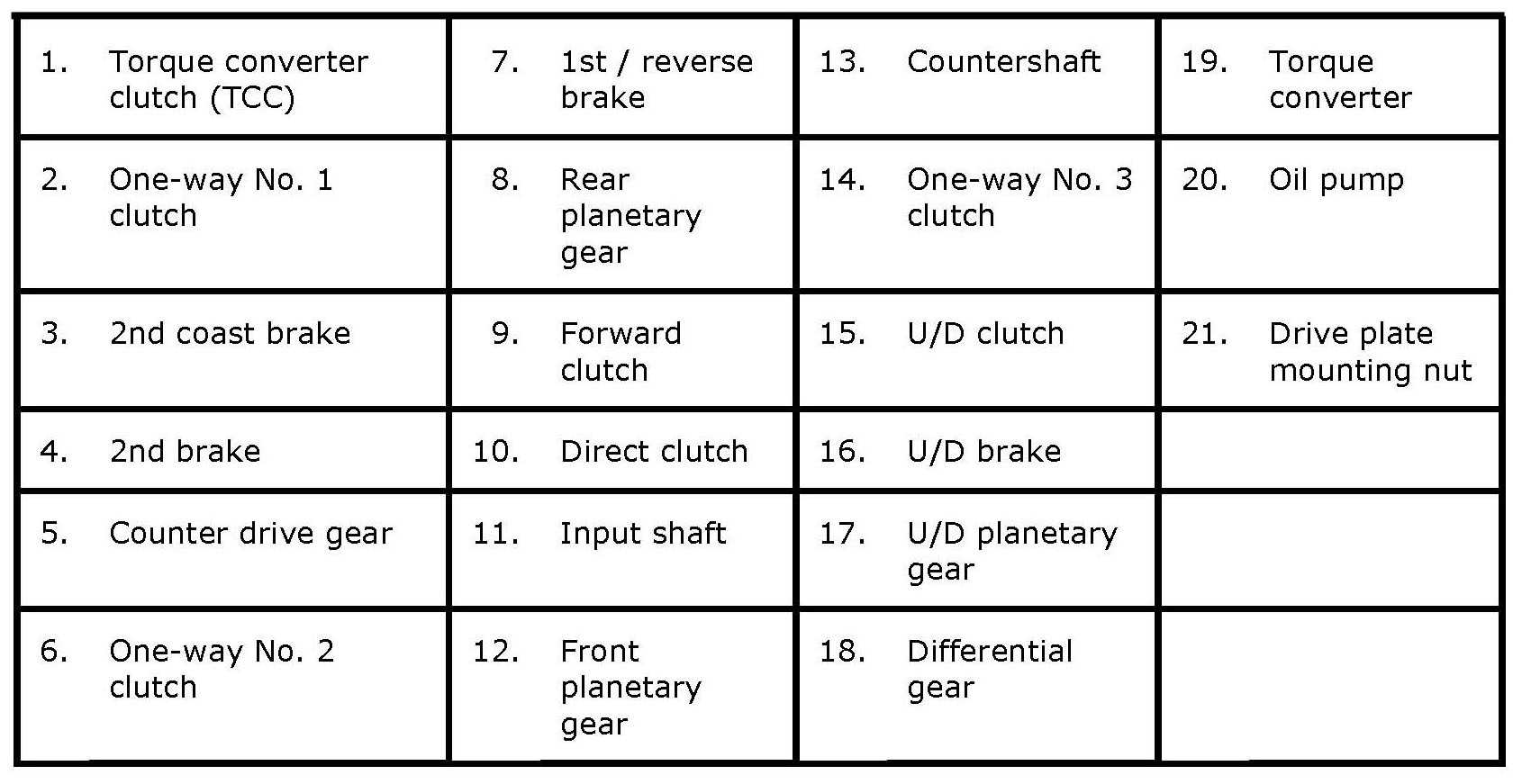

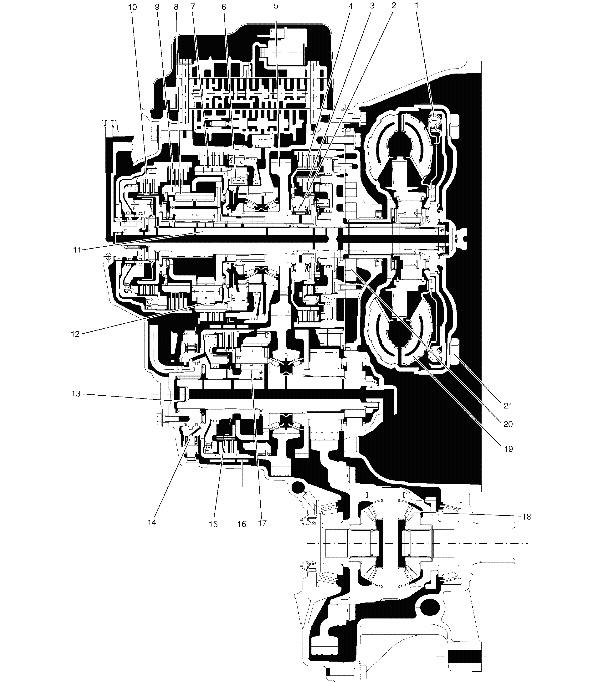

4WD
