Arm Rest: Service and Repair

Rear Seat Center Armrest Removal And Installation

Removal

1. Lower the rear seatback.

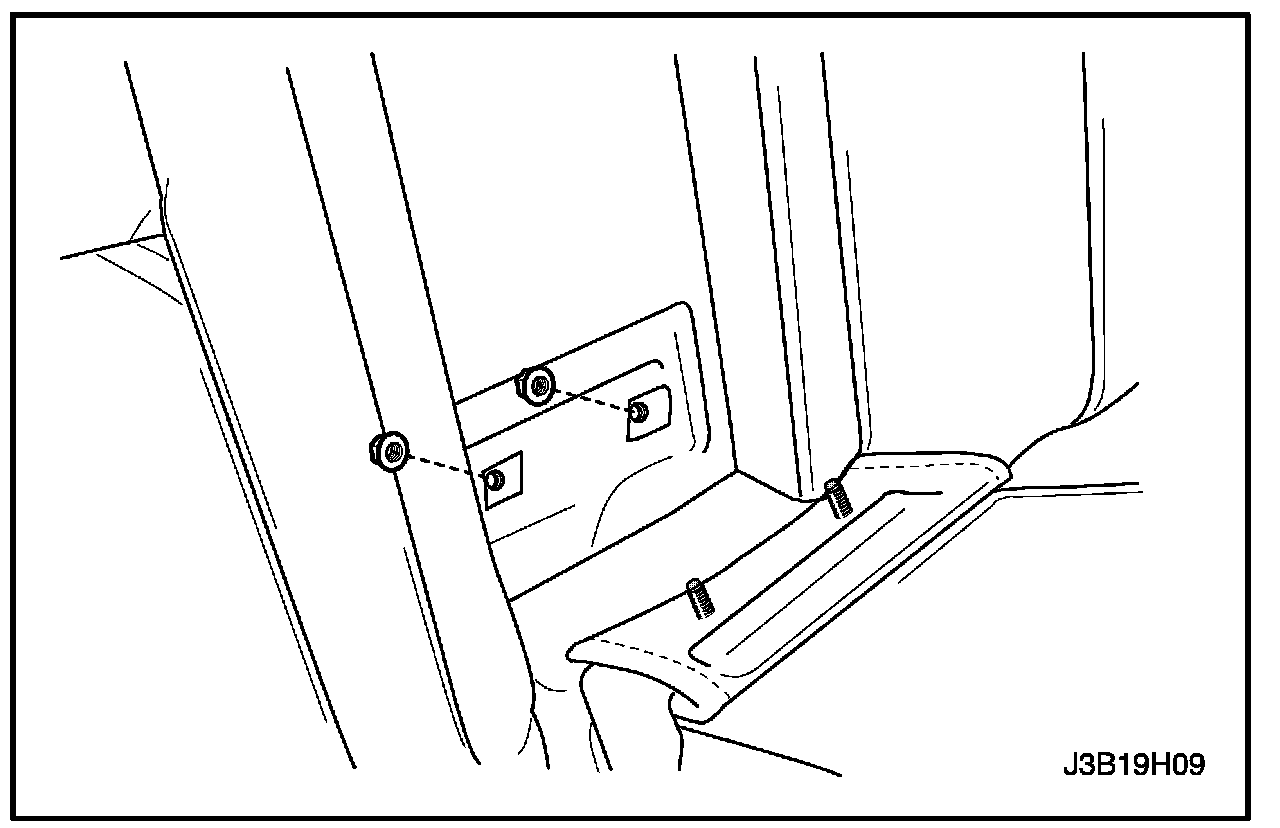

2. Remove the nuts and the armrest.

Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

1. Install the armrest with the nuts.

Tighten:
Tighten the armrest nuts to 24 Nm (18 ft. lbs.).

2. Raise and secure the rear seatback in the upright position.
