Headliner: Service and Repair

Formed Headliner Removal And Installation

Tools Required:
KM-475-B Trim Remover

Removal

1. Disconnect the negative battery cable.
2. Remove the sunroof molding, if equipped.
3. Remove the passenger assist handles.
4. Remove the plastic retaining clips in the headliner on the driver's side.
5. Remove the sun visors.
6. Remove the power sunroof control switch, if equipped.
7. Remove the A-, B-, and C-pillar trim panels.

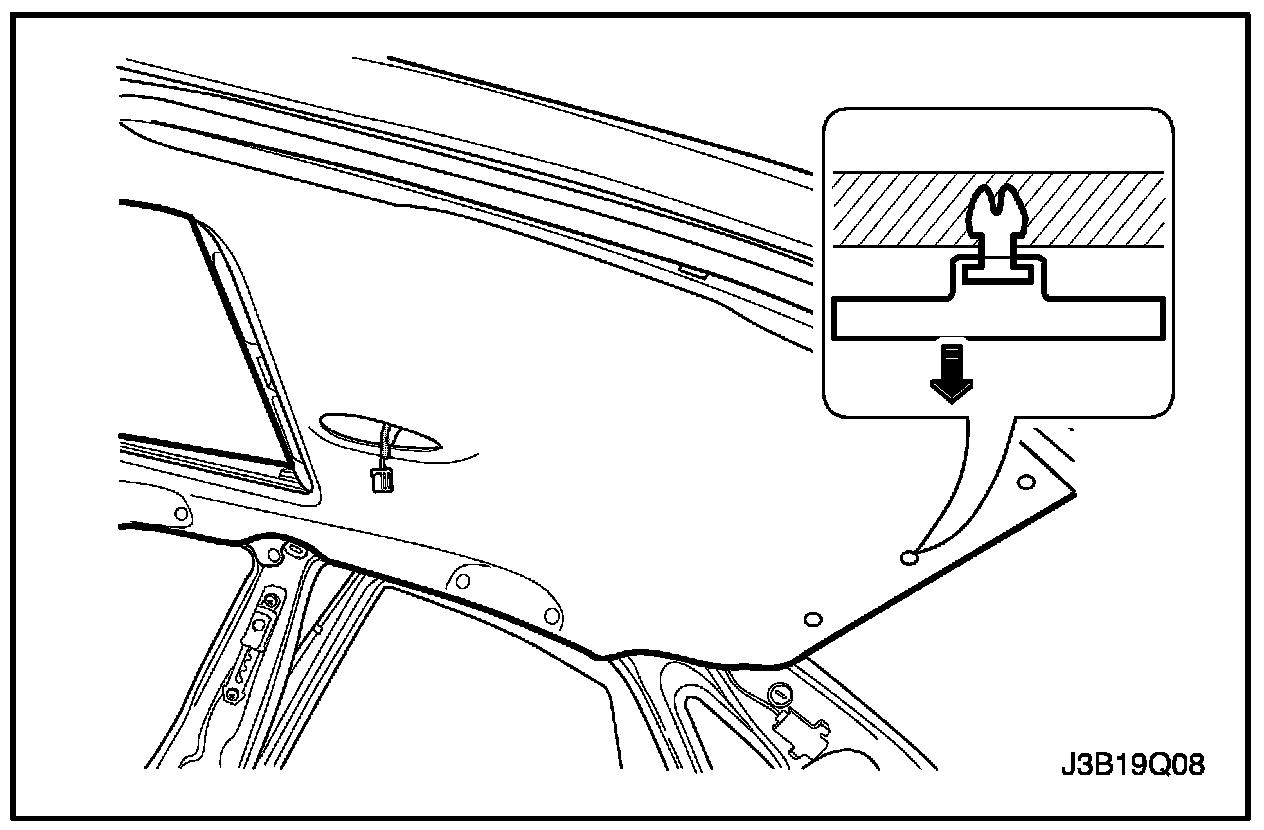

8. Remove the plastic retainers in the headliner using the trim remover KM-475-B.
9. Recline both front seats.
10. Remove the headliner.







Installation

1. Recline both front seats.
2. Install the headliner behind the seats around the doors.
3. Install the plastic retainers.







4. Install the A-, B-, and C-pillar trim panels.
5. Install the power sunroof control switch, if equipped.
6. Install the sun visors.
7. Install the plastic retainers in the headliner on the driver's side.
8. Install the passenger assist handles.
9. Install the sunroof molding, if equipped.
10. Connect the negative battery cable.
