Engine Under Covers Removal and Installation
Engine Under Covers Removal And InstallationRemoval 1.
Raise and suitably support the vehicle.
2.

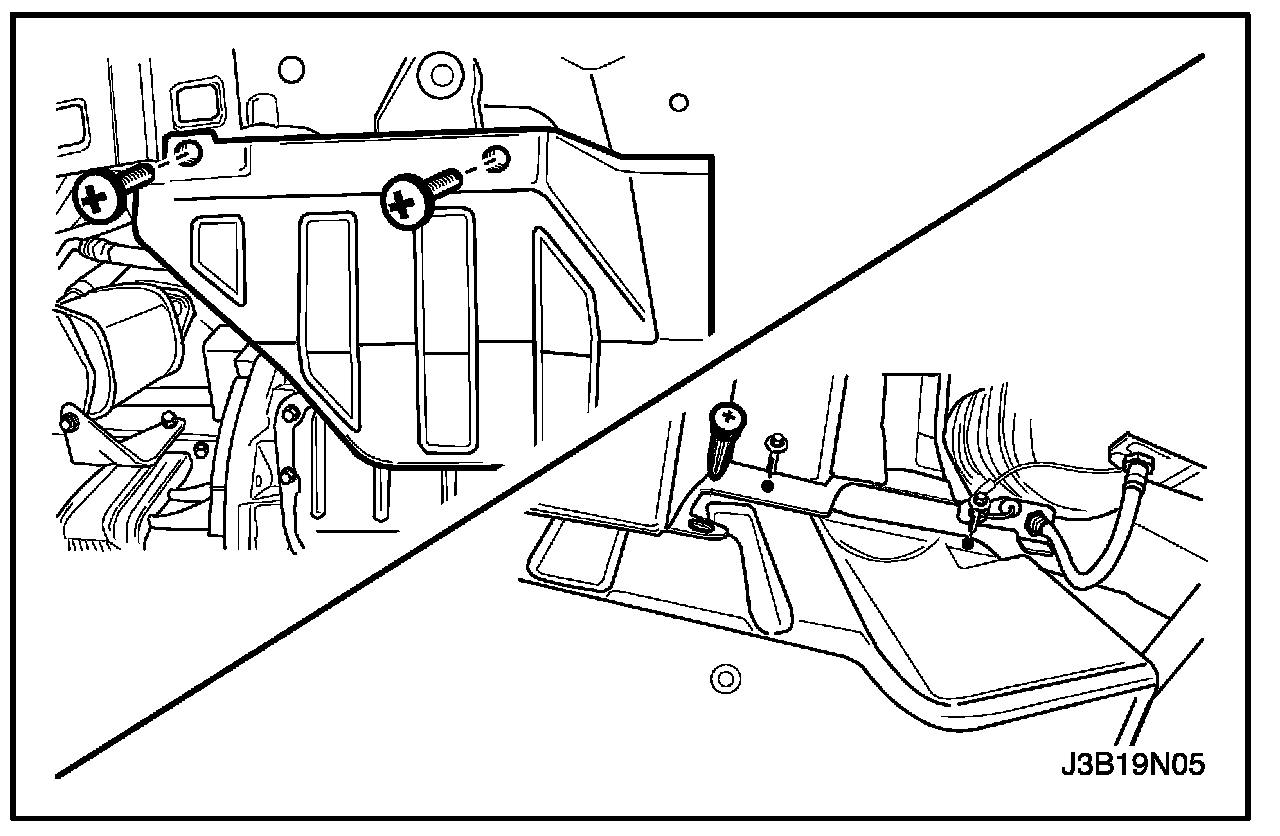

Remove the bolts and the engine under cover.
Installation 1.
Install the engine under cover with the bolts.
Tighten:
Tighten the engine under cover bolts to 3.5 Nm (31 in. lbs.).
2.
Lower the vehicle.
