Brake Pedal Assy: Service and Repair
Brake Pedal Removal and Installation Removal 1.

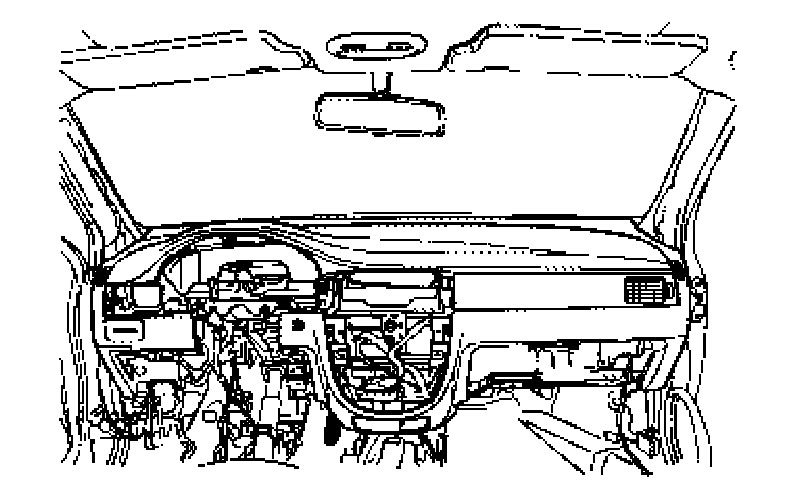

Remove the instrument panel.
2.

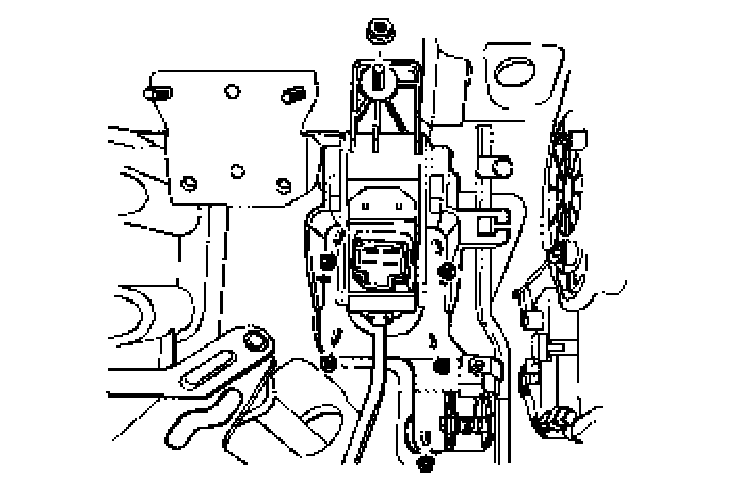

Remove the nuts from the brace.
3.
Remove the brake pedal.
Installation 1.

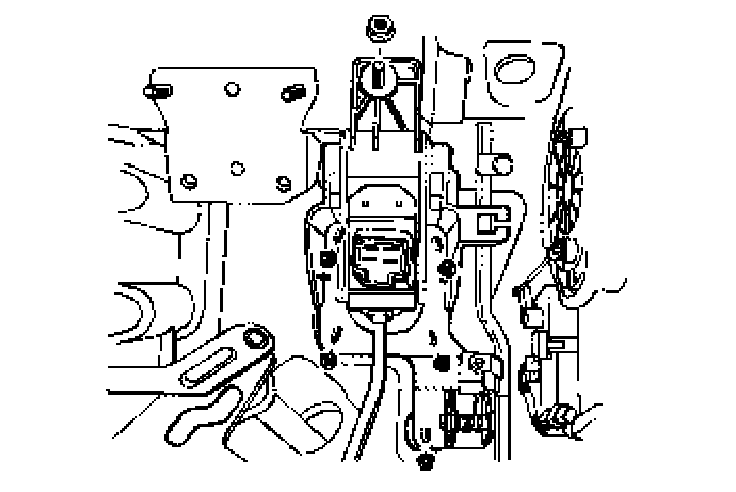

Install the brace with nuts.
Tighten: Tighten the brace with nuts to
22 Nm (16 ft. lbs.).
2.
Install the brake pedal.
3.

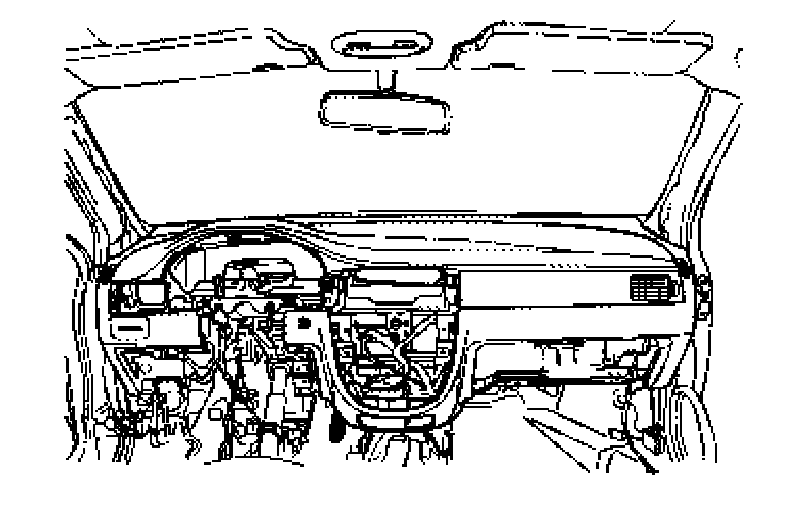

Install the instrument panel.
