Control Assembly Knob Lighting
Control Assembly Knob Lighting Removal and InstallationRemoval 1.
Disconnect the negative battery cable.
2.

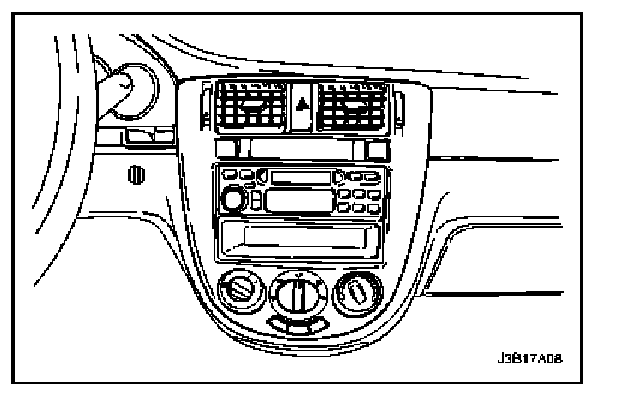

Remove the center molding.
3.

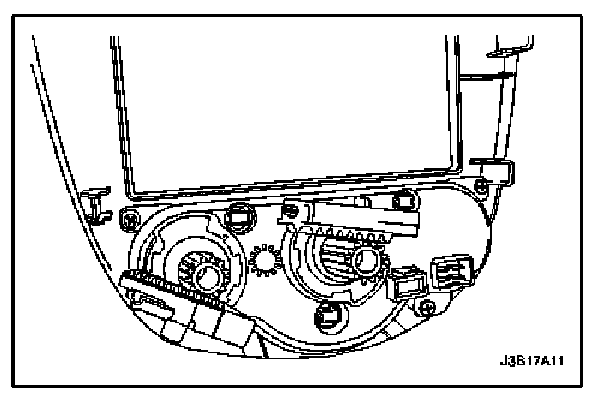

Turn the bulb holder to the left and pull out the bulb.
Installation 1.
Install the bulb into the holder and turn the bulb to the right.
2.
Install the
control assembly.
3.
Connect the negative battery cable.
4.
Check the knob light for proper operation.
