License Plate Lamp: Service and Repair

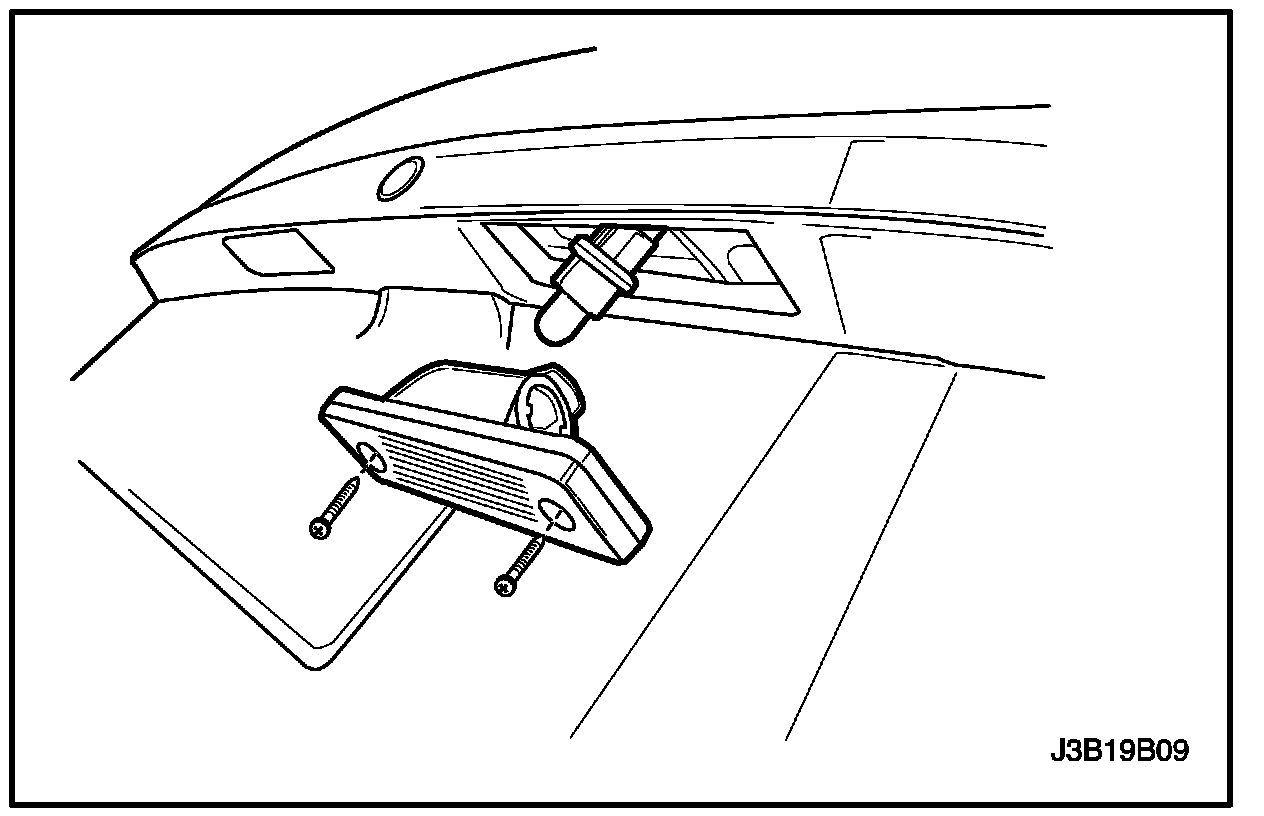

License Plate Lamps Removal and InstallationRemoval 1.
Disconnect the negative battery cable.
2.
Remove the screws.
3.
Remove the lamp assembly.
4.
Remove the lamp socket from the lamp housing.
5.
Remove the bulb.
Installation 1.
Install a new bulb.
2.
Install the lamp socket in the lamp housing.
3.
Install the lamp assembly with the screws.
4.
Connect the negative battery cable.
