Brake Switch, Cruise Control and Accelerator Pedal Position (APP) Sensor Circuit

Brake Switch, Cruise Control and Accelerator Pedal Position (APP) Sensor Circuit:

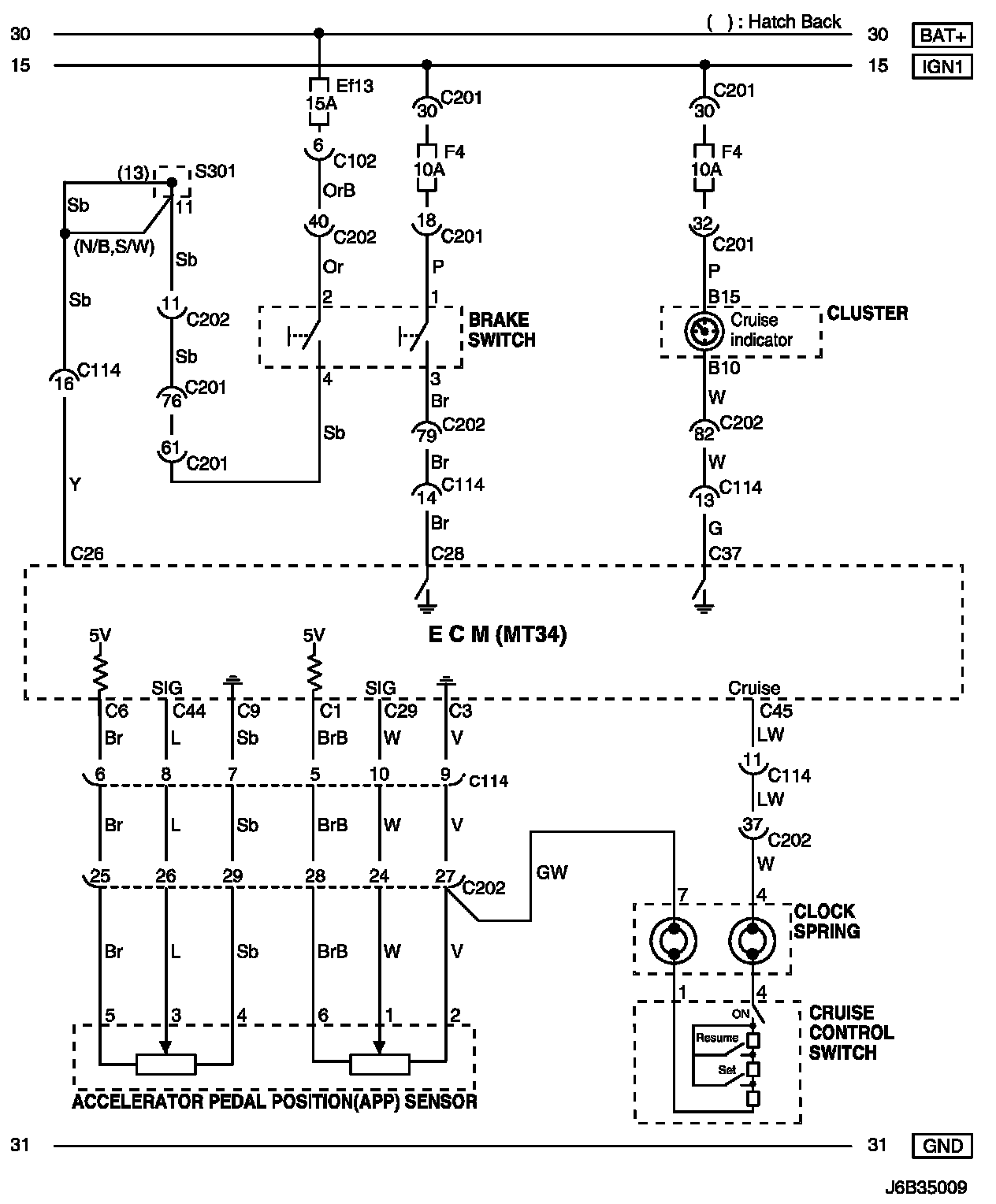

WIRING DIAGRAM

C102 - S301:




CONNECTOR INFORMATION

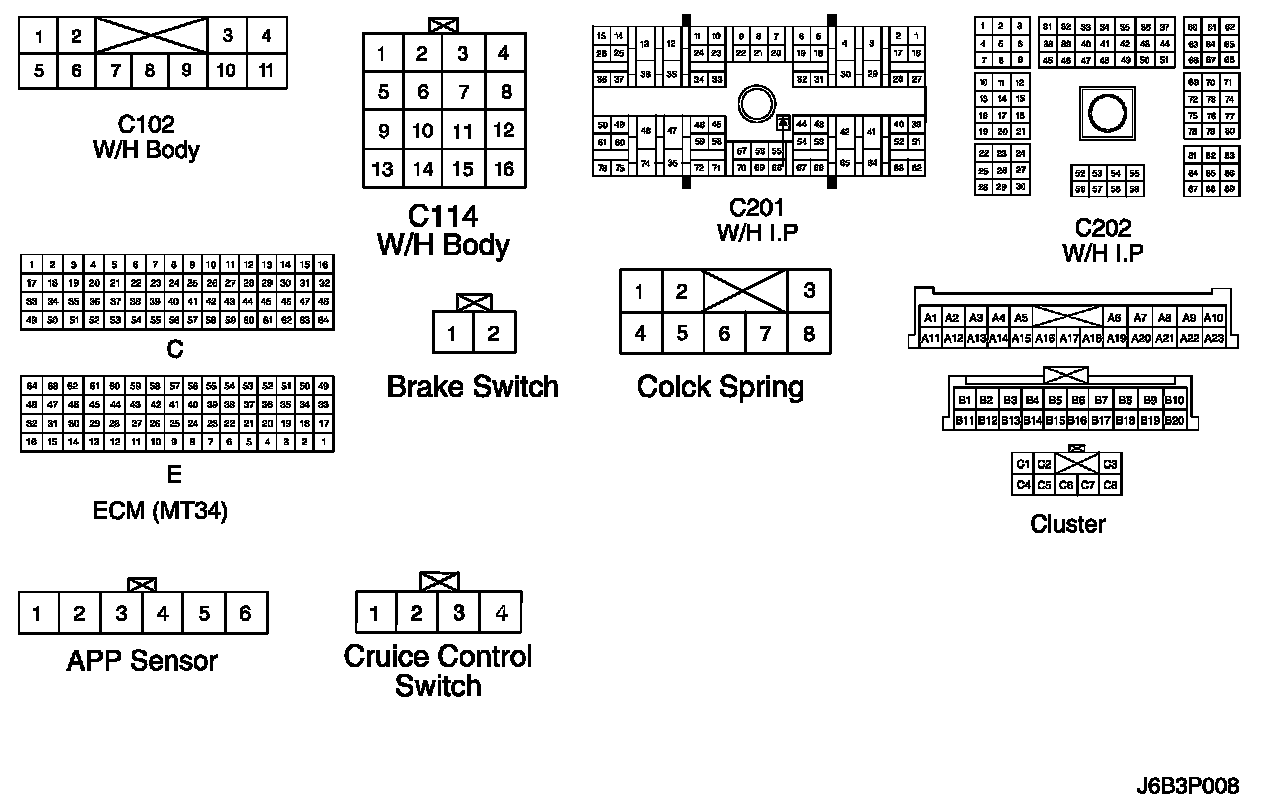

Connector Identification Symbol and Pin Number Position:




CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

S301 (Notchback):




S301 (Hatchback):




S301 (Station Wagon):




SPLICE PACK

W/H ENGINE:

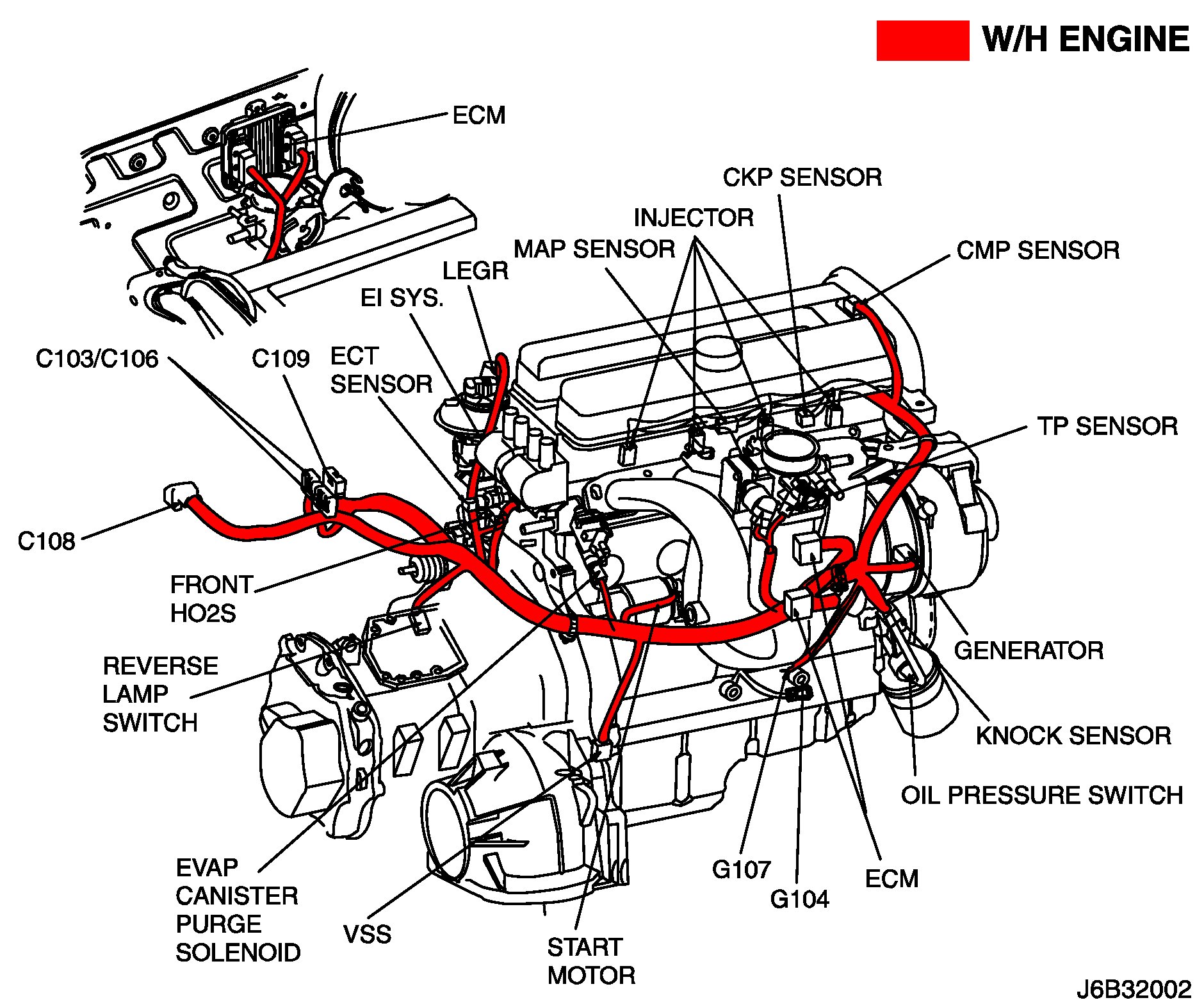

POSITION OF CONNECTORS AND GROUNDS
