Steering Column: Testing and Inspection

Steering Column Diagnosis
Lock System

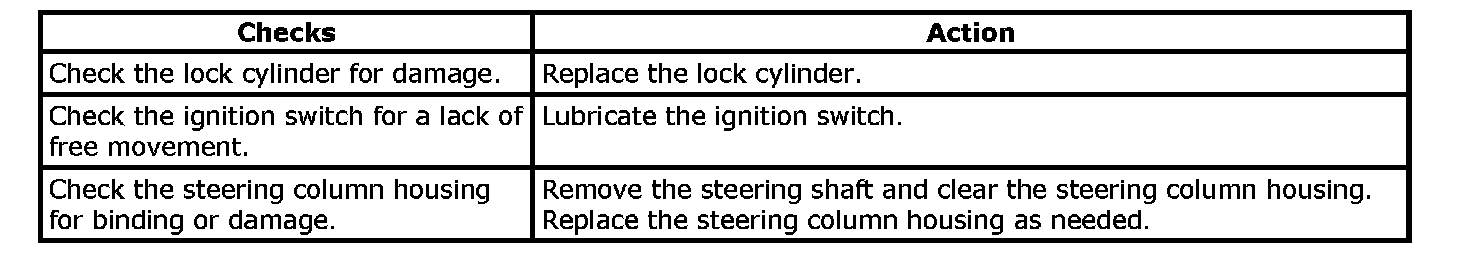

Lock System Will Not Unlock

Lock system Will Not Lock

High Lock Effort

Key Cannot Be Removed in the Lock Position

Column

Noise in the Column

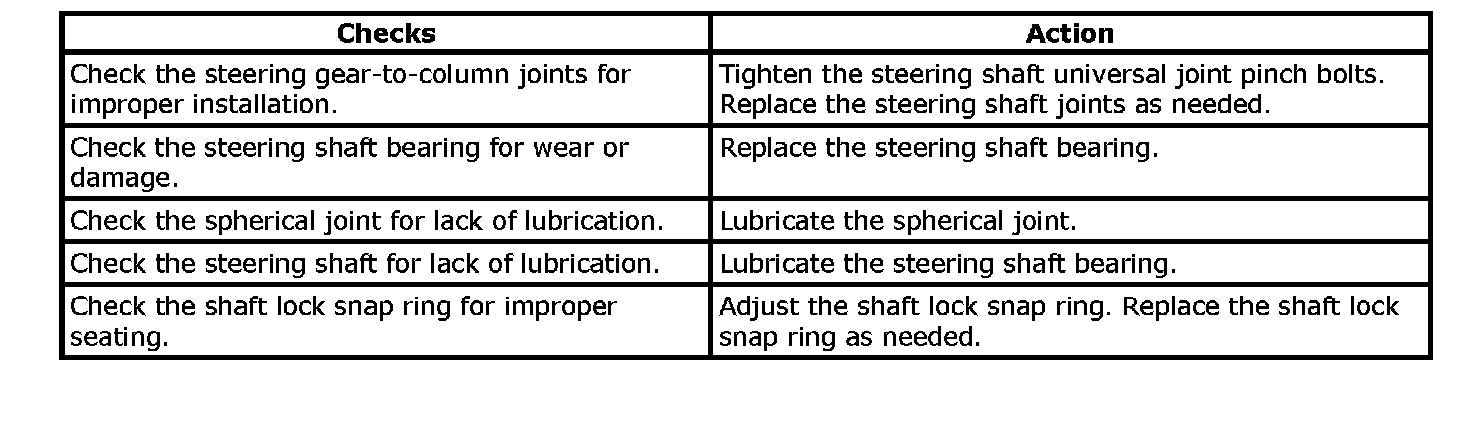

High Steering Shaft Effort

Lash in the Steering Column

Loose Steering Wheel

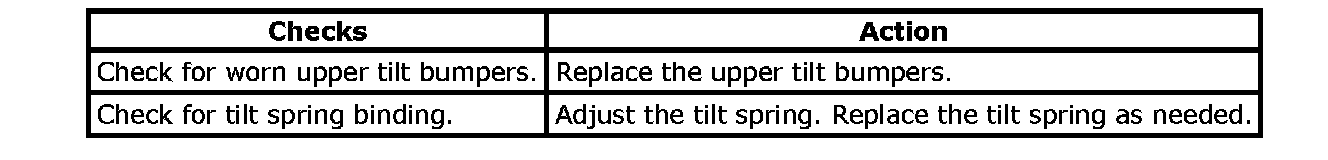

Noise When Tilting the Column

Turn Signal / Dimmer Switch

Turn Signal Will Not Stay in the Turn Position

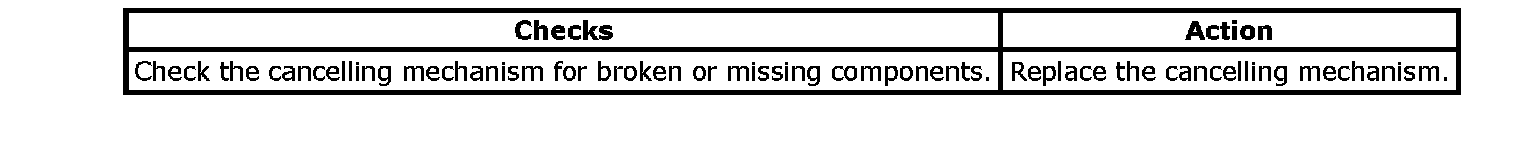

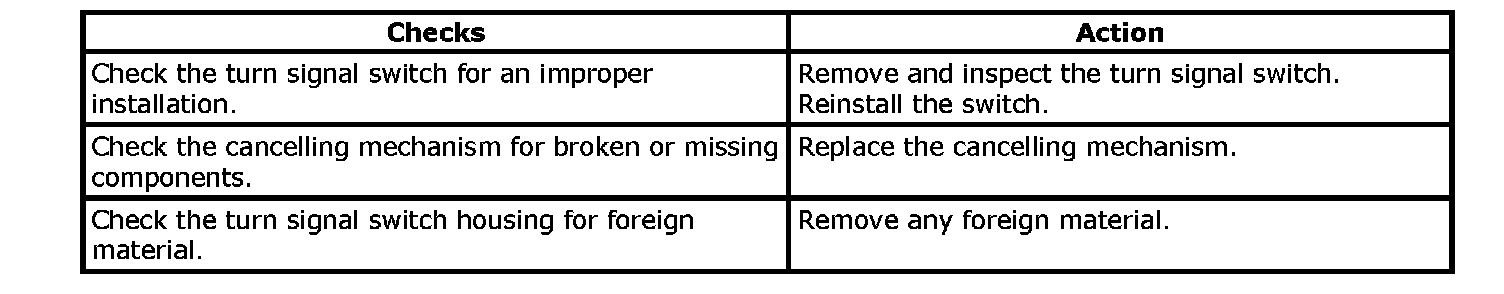

Turn Signal Will Not Cancel

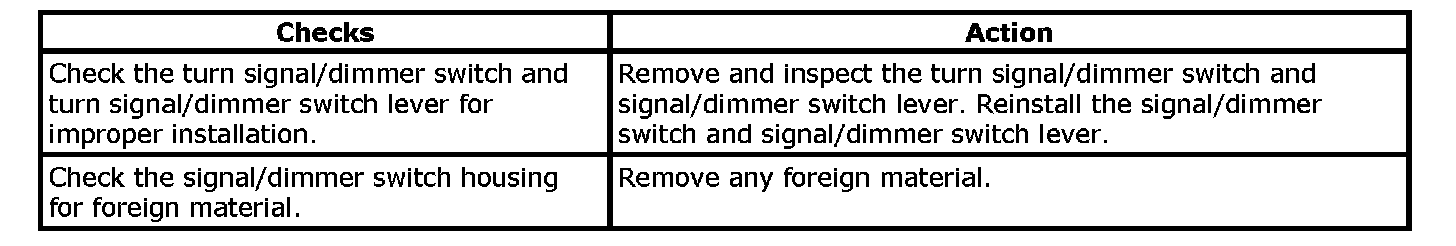

Turn Signal / Dimmer Switch Difficult to Overate

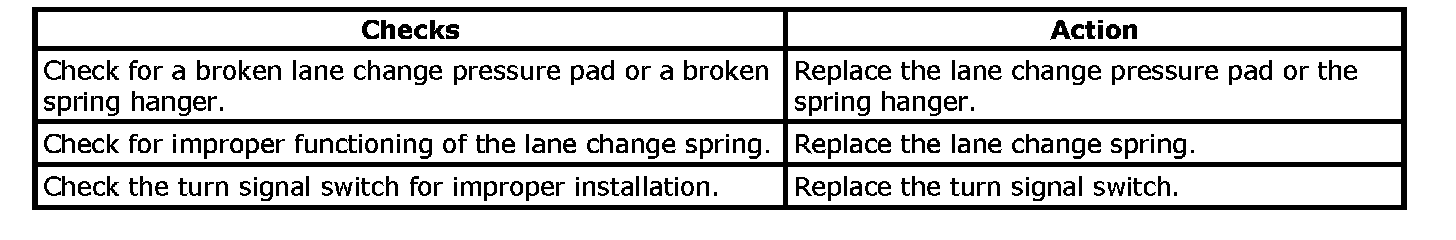

Turn Signal Will Not Indicate Lane Change

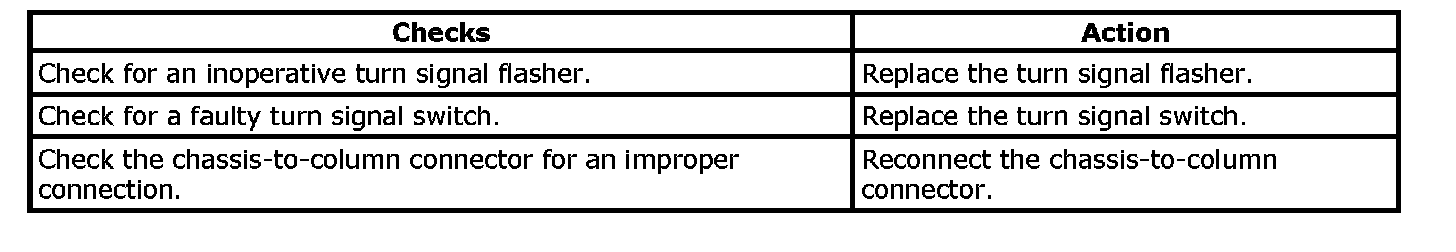

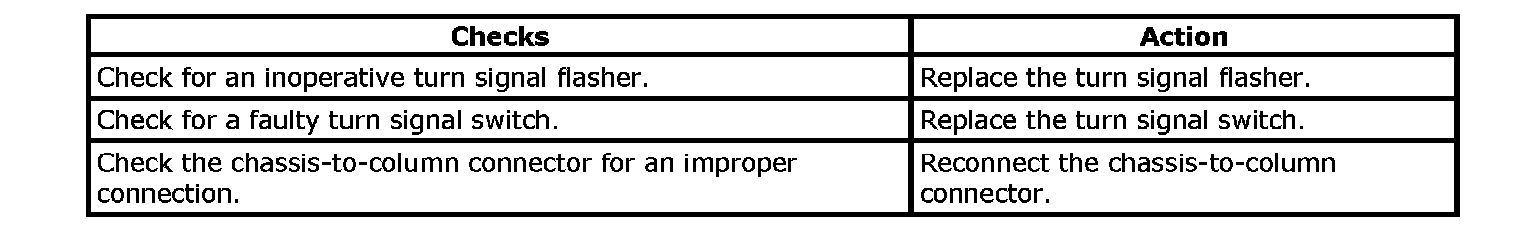

No Turn Signal Lights

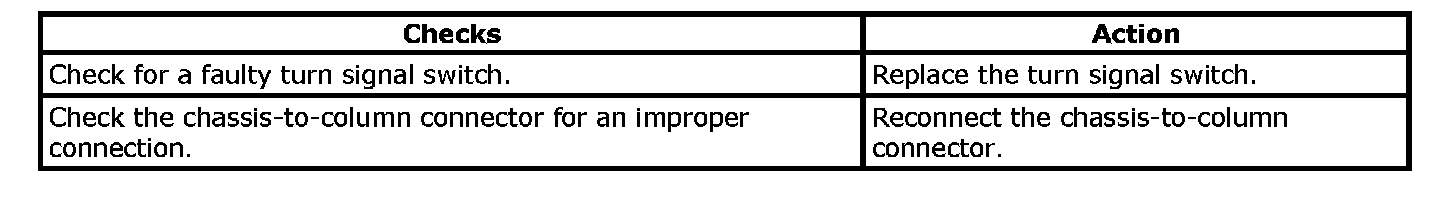

Turn Indicator Lights on, But Not Flashing

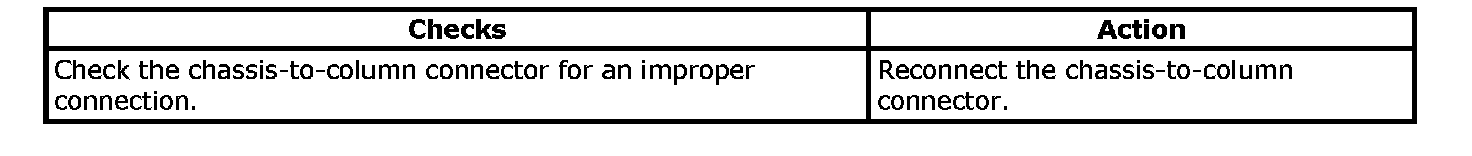

Front or Rear Turn Signal Lights Not Flashing

Turn Signal Lights Flash Very Slowly

Ignition Switch

Part 1:

Part 2:

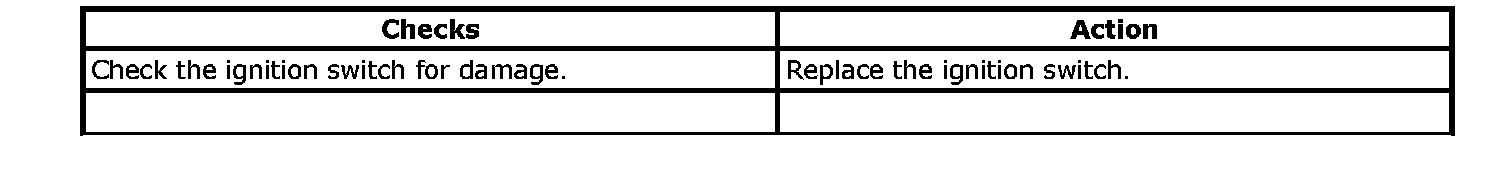

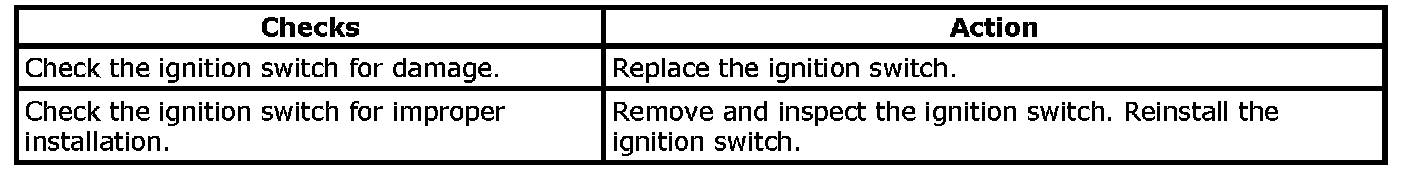

Electrical System Will Not Function

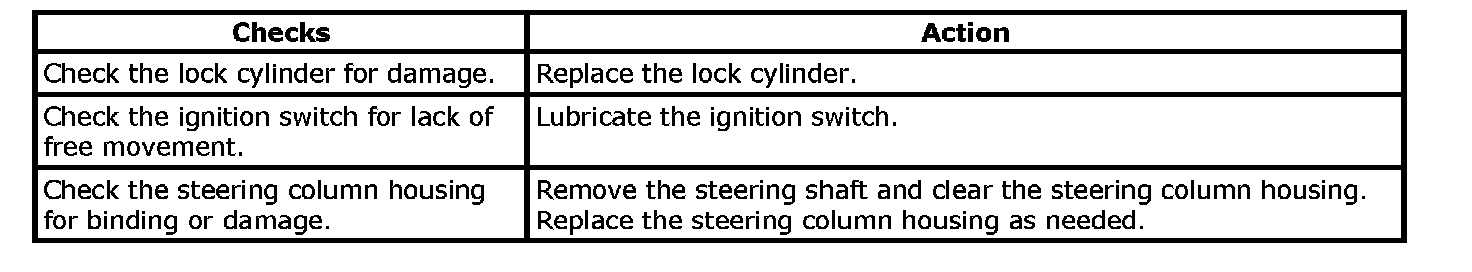

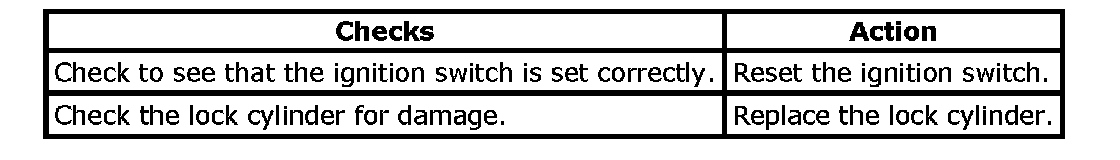

Ignition Switch Will Not Turn

Wiper / Cruise Control Switch and Lever

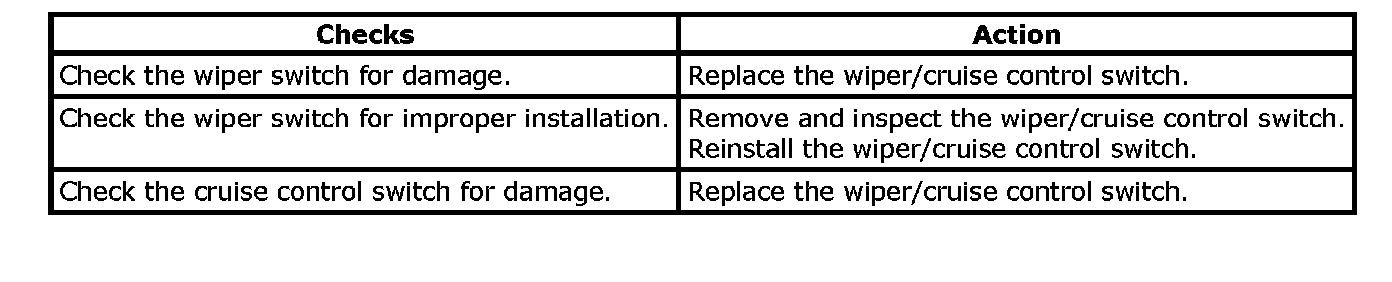

Switch Inoperative: No Low, High, Intermittent or Wash
