Transmission and Drivetrain: Tools and Equipment

Substitute Special Tool Table

The substitute special tools below are usable instead of the special tools described in this manual.

NOTE: "-" indicates the substitute special tool is not available.

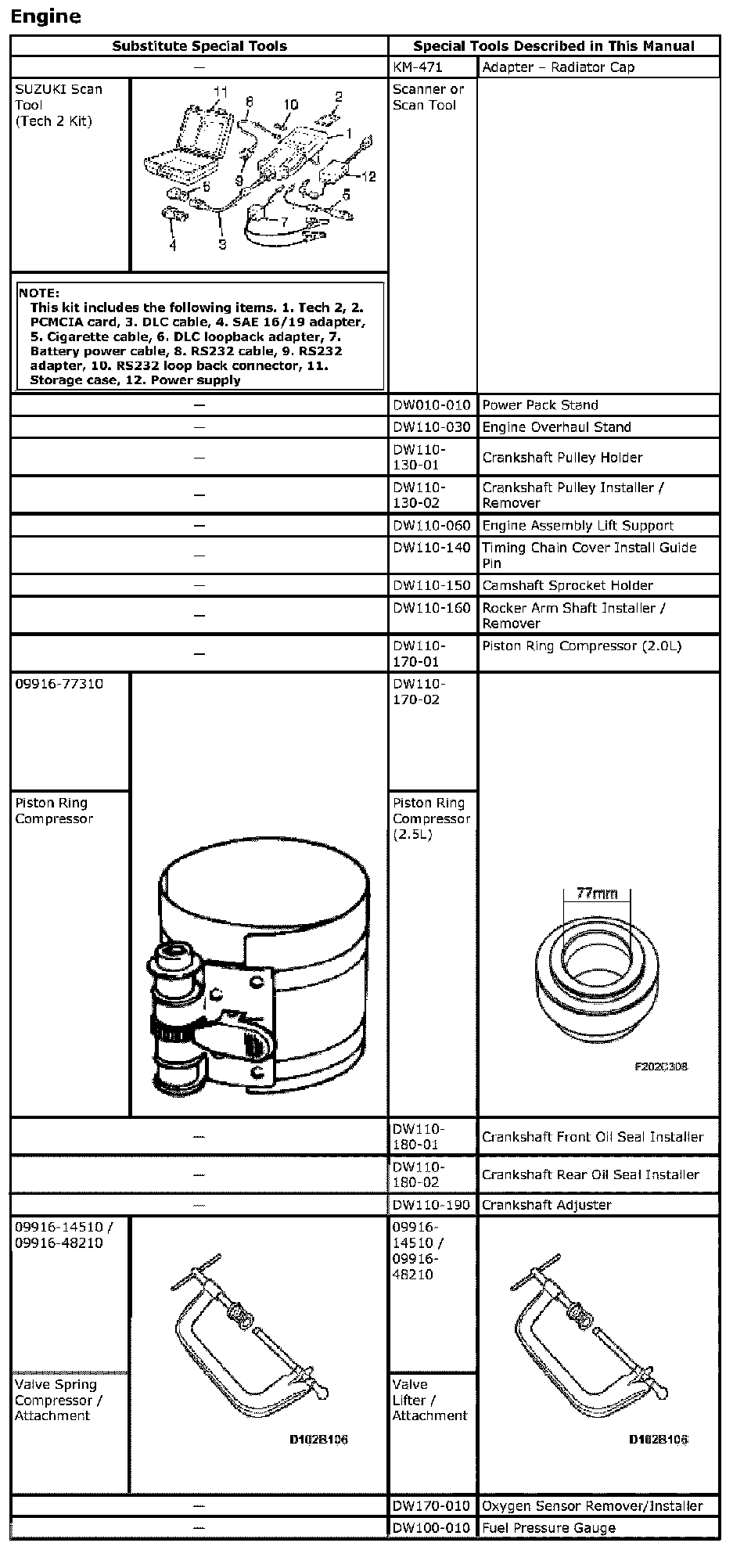

Engine









Front Suspension




Rear Suspension




Drive Line / Axle (Front Drive Axle)

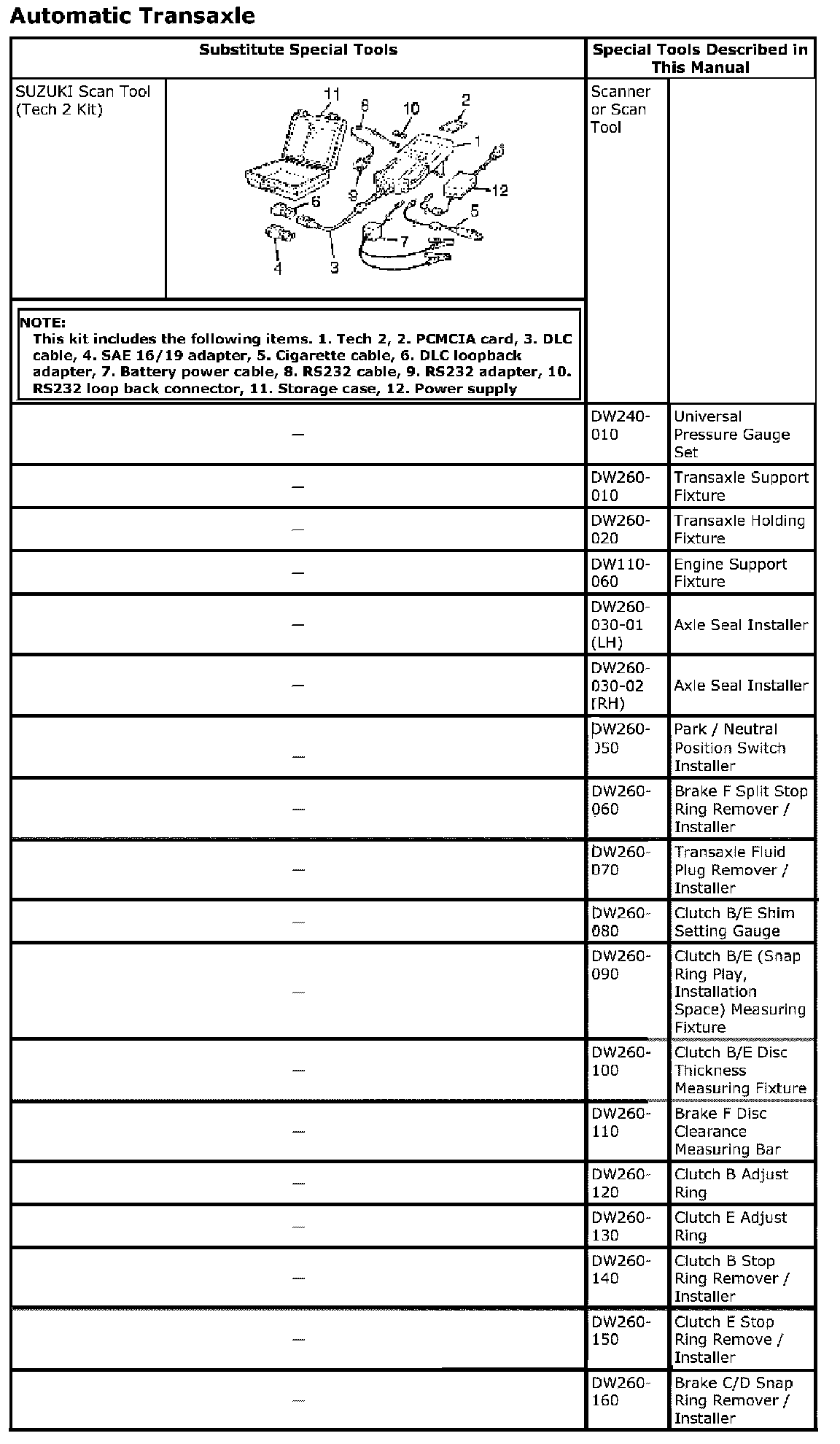

Automatic Transaxle




Steering

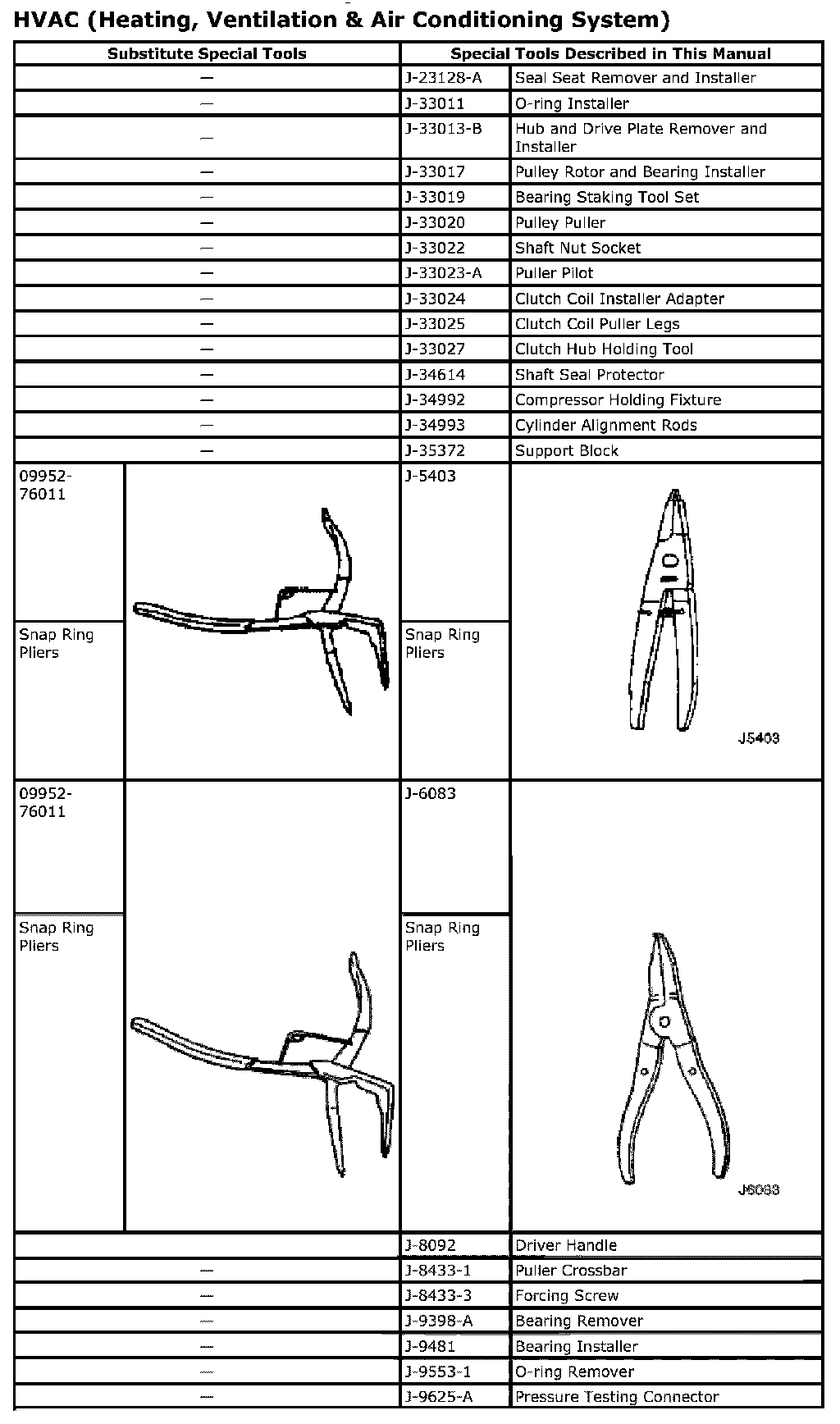

HVAC (Heating, Ventilation & Air Conditioning System)




Restraints




Body & Accessories




Control Systems
