Yaw Rate Sensor: Service and Repair

G Sensor Removal and Installation

Removal

1) Turn ignition switch to OFF position and disconnect battery negative cable.
2) Remove rear center console box.

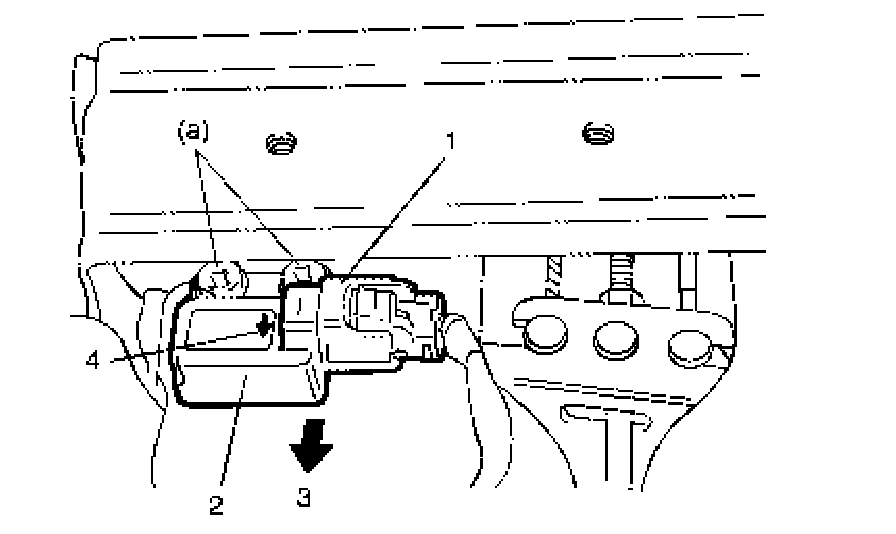

3) Disconnect connector (1) from sensor (2).
4) Remove G sensor (2) from floor.

CAUTION:
^ Sensor must not be dropped or shocked. It will affect its original performance.





Installation

Reference: G Sensor Inspection
1) Connect connector (1) to sensor (2) securely.
2) Install sensor (2) onto floor so that arrow mark (4) directs vehicle forward (3).

Tightening torque
G sensor mounting bolt a: 6.0 Nm (0.6 kg-m, 4.5 ft. lbs.)





3) Install rear console box.
