Outside Air Temperature Sensor Inspection

Outside Air Temperature Sensor Inspection
1. Remove front bumper referring to Front Bumper Components.
2. Disconnect outside air temperature sensor connector (1).

3. Remove outside air temperature sensor from front bumper member (2) .

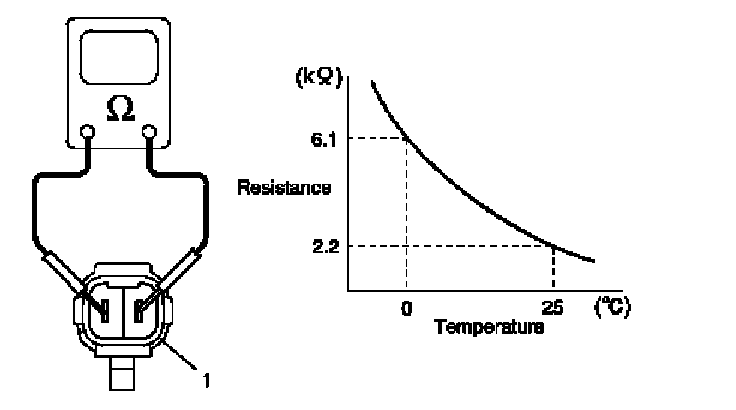

4. Immerse temperature sensing part of outside air temperature sensor (1) in ice water and measure resistance between sensor terminals while heating water gradually.
