Manual A/C

A/C Evaporator Temperature Sensor Removal and Installation
Reference: Heater and Cooling Unit Components:Manual Type

Removal

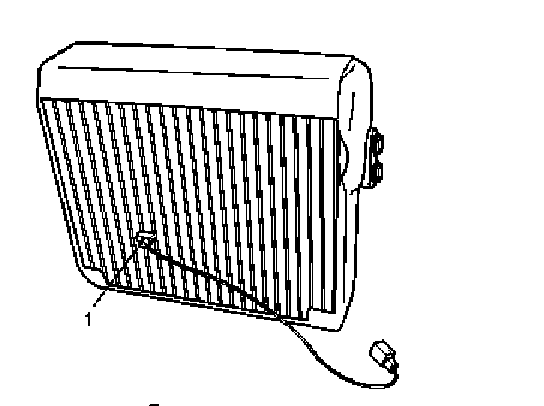

Remove A/C evaporator temperature sensor (1).

Installation
Reference: A/C Evaporator Temperature Sensor Inspection:Manual Type

1. Reverse removal sequence to install A/C evaporator temperature sensor.
2. Enable air bag system.
Refer to Enabling Air Bag System.

3. Evacuate and charge system according to Operation Procedure for Charging A/C with Refrigerant:Manual Type.
