Fuel Pressure: Testing and Inspection

Fuel Pressure Control System Inspection

Wiring Diagram:

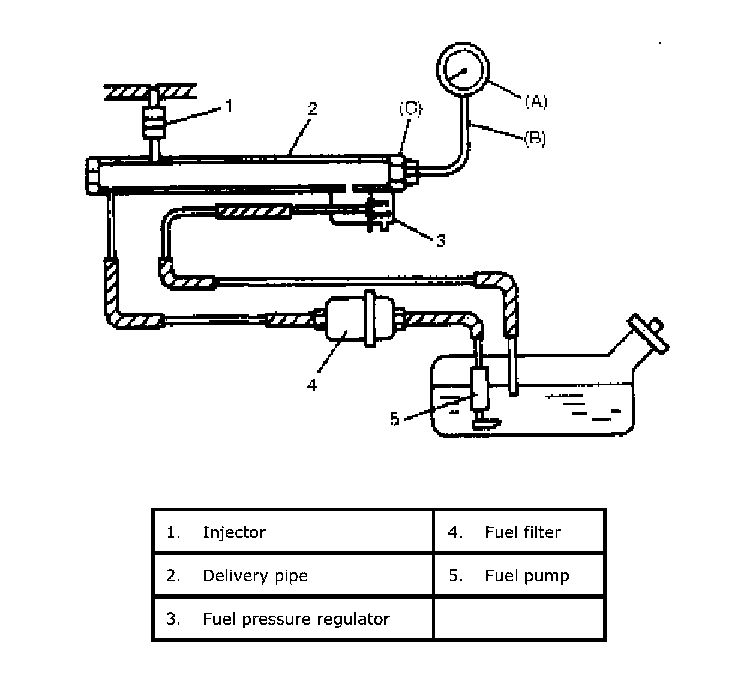

System Diagram

Special Tool
(A): 09912-58442 (Fuel pressure gauge)
(B): 09912-58432 (Fuel pressure gauge hose)
(C): 09912-58421 (Checking tool set)

Step 1:

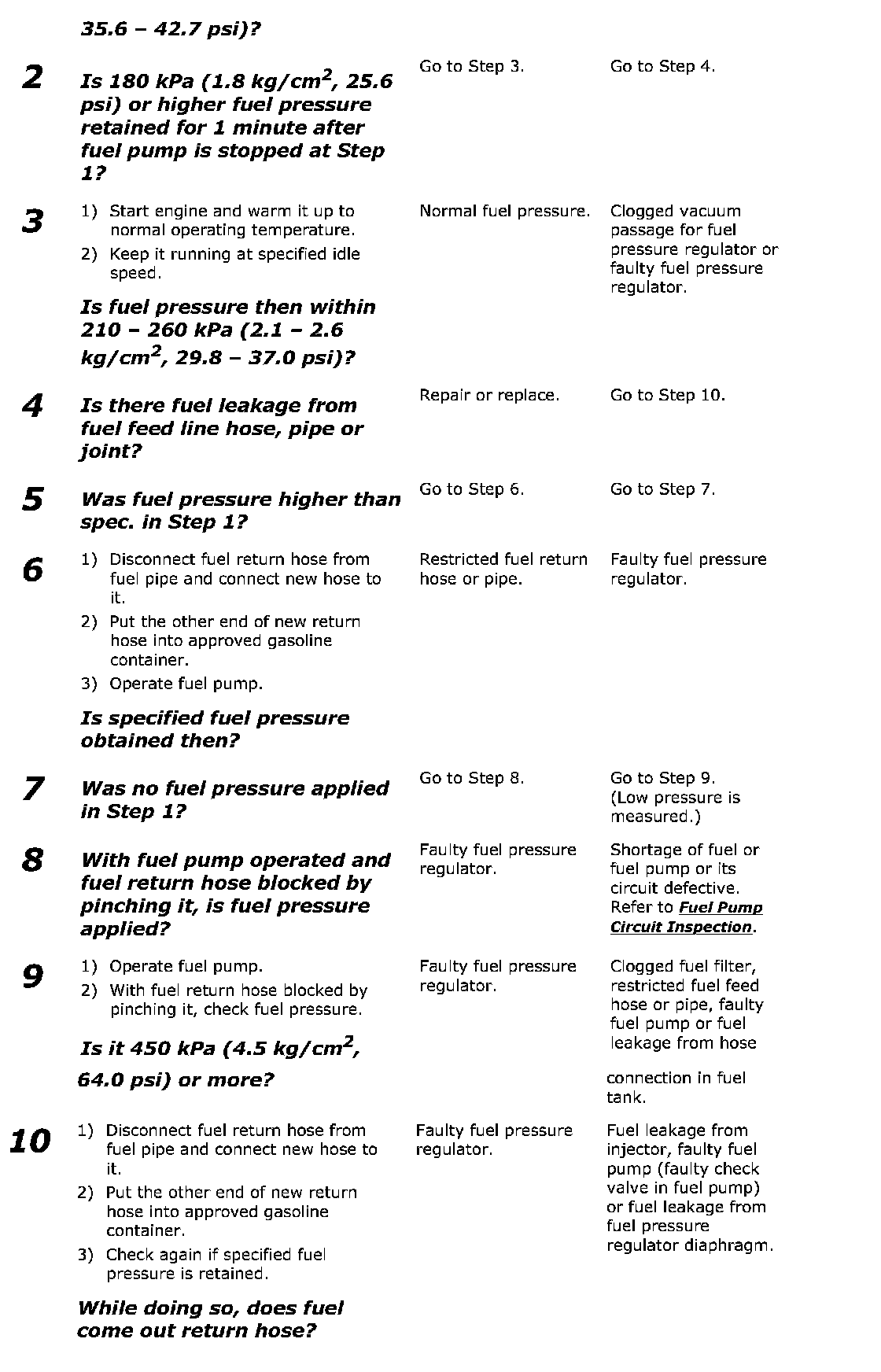

Step 1 (Continued) - 10:

Troubleshooting
