Evaporator Core: Service and Repair

A/C Evaporator Removal and Installation

Reference: HVAC Unit Components

Removal
1. Remove HVAC unit.

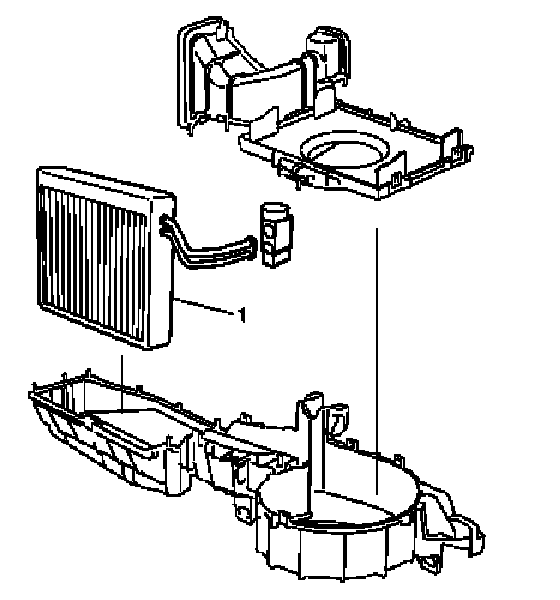

2. Remove evaporator (1) from HVAC unit by disassembling HVAC unit.
3. Remove evaporator temperature sensor from evaporator.

Installation

Reference: A/C Evaporator Inspection

Reverse removal procedure to install A/C evaporator nothing the following instructions.
- Install evaporator temperature sensor onto evaporator referring to A/C Evaporator Temperature Sensor Removal and Installation.
