A/T Fluid Change
A/T Fluid Change1. Lift up vehicle.
2. When engine is cool, remove drain plug (1) from oil pan and drain A/T fluid.
3. Install drain plug with new gasket.
4. Lower vehicle and fill proper amount of specified fluid.

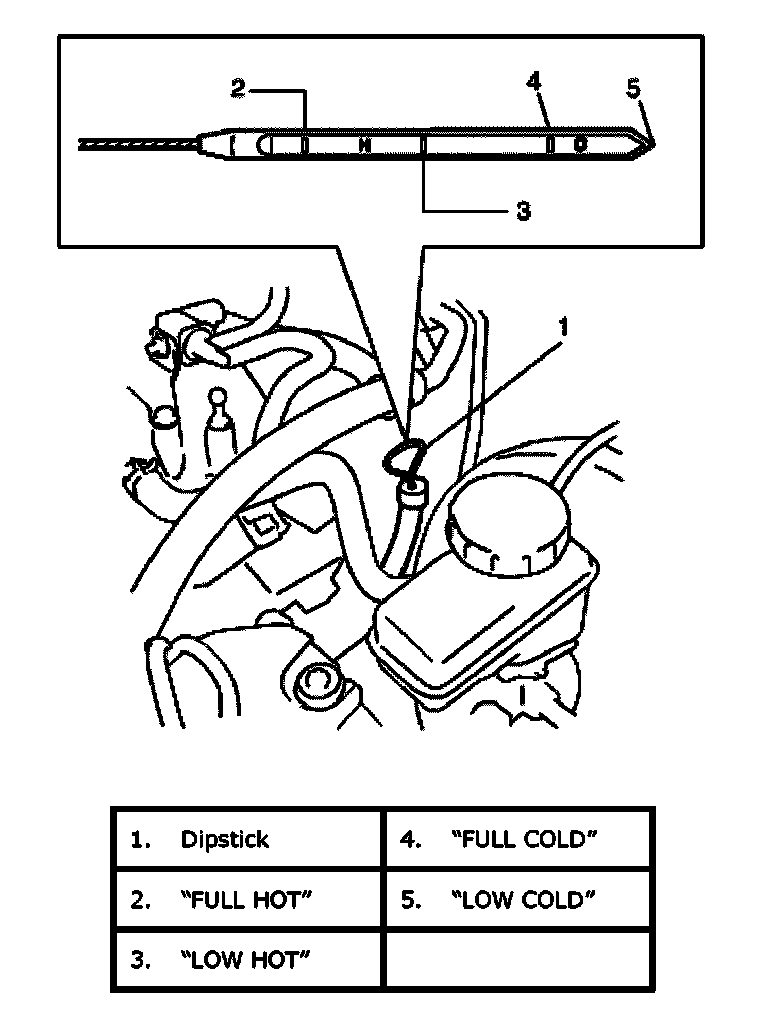

5. Check fluid level.
A/T fluid specification: SUZUKI ATF 3317 or Mobil ATF 3309
A/T fluid capacity reference value
When draining from drain plug hole: Approximately 3.0 liters (6.34/5.28 US/lmp. pt.)
When overhauling: Approximately 9.9 liters (20.92/17.42 US/lmp. pt.)
