Engine Basic Check

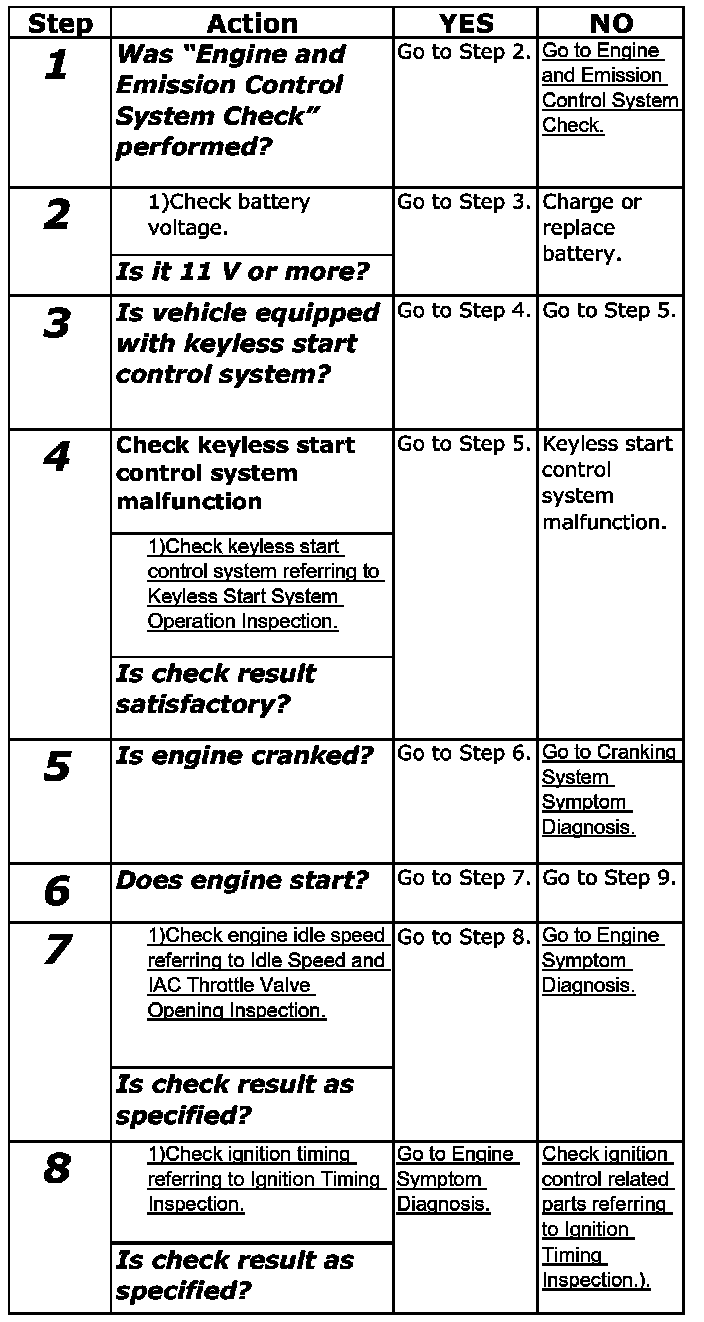

Engine Basic CheckStep 1-8:

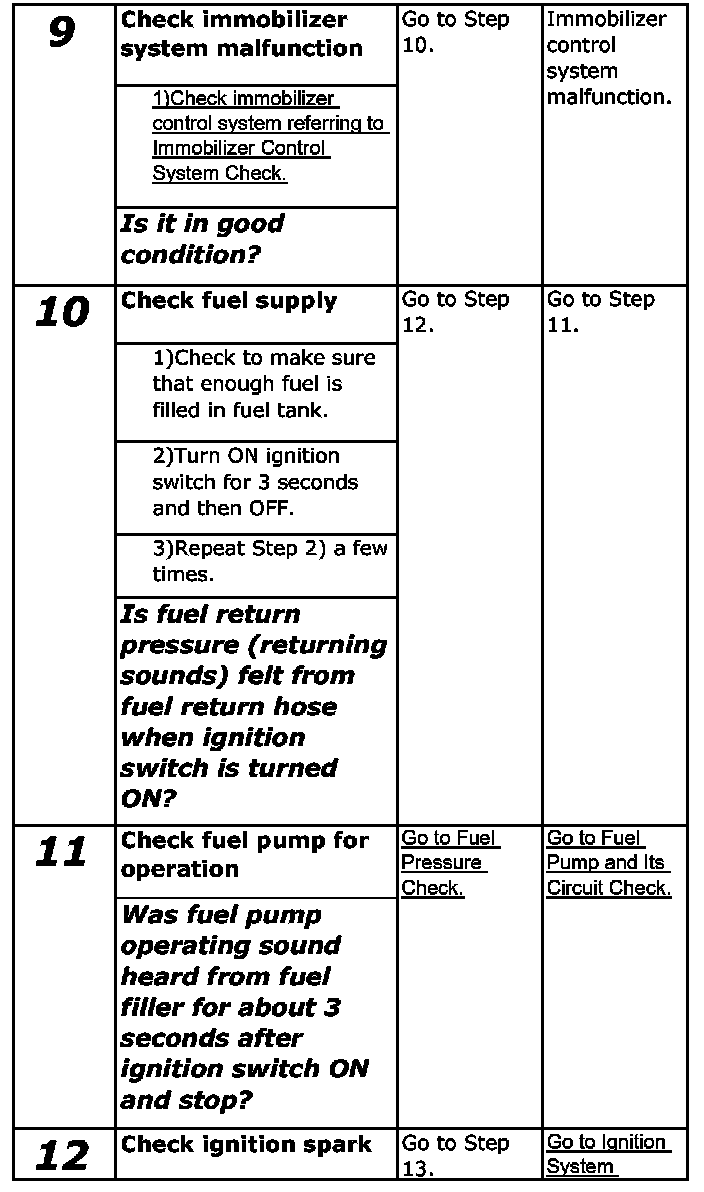

Step 9-12 (Continued):
Step 12 (Continued)-13:
This check is very important for troubleshooting when ECM has detected no DTC and no abnormality has been found in Visual Inspection.
Follow the flow carefully.
