Spark Plug: Service and Repair

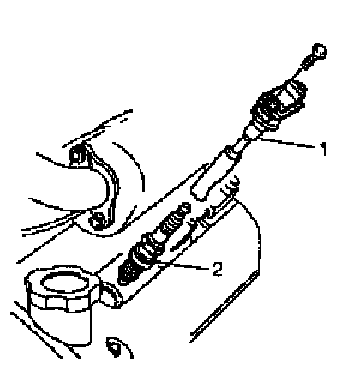

Spark Plug Removal and InstallationREMOVAL 1.
Remove ignition coil assembly (1).
2.
Remove
spark plug (2).

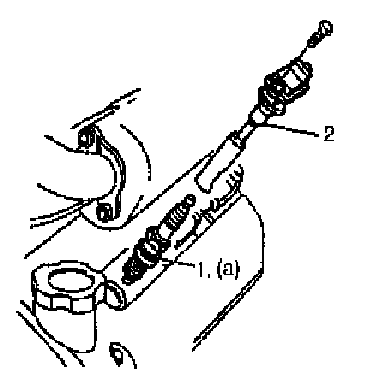

INSTALLATIONReference:
Spark Plug Inspection
1.
Install
spark plug (1) and tighten them to specified torque.
Tightening torque
Spark plug a: 25 N.m (2.5 kg-m, 18.0 lb-ft) 2.
Install ignition coil assembly (2).
