Tightening Torque Specifications

Tightening Torque Specifications

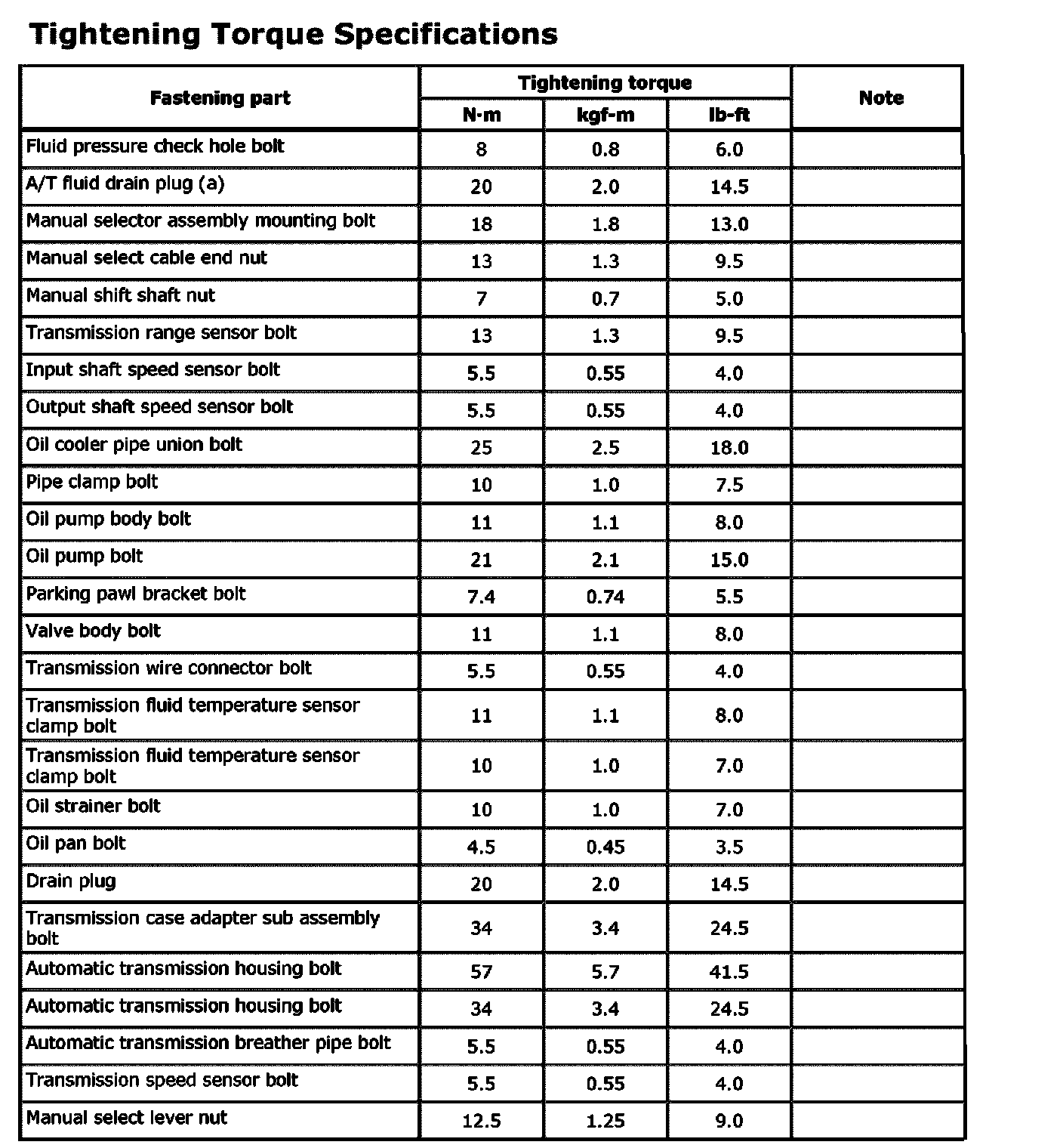

Tightening Torque Specifications:





NOTE: The specified tightening torque is also described in the following.
Oil Cooler Hoses Replacement
Manual Selector Assembly Components
Select Cable Component
Automatic Transmission Unit Components
Automatic Transmission Unit Components
Oil Pump Assembly Components
Valve Body Assembly Components

Reference:
For the tightening torque of fastener not specified in this section, refer to Fastener Information.
