Oil Pan, Engine

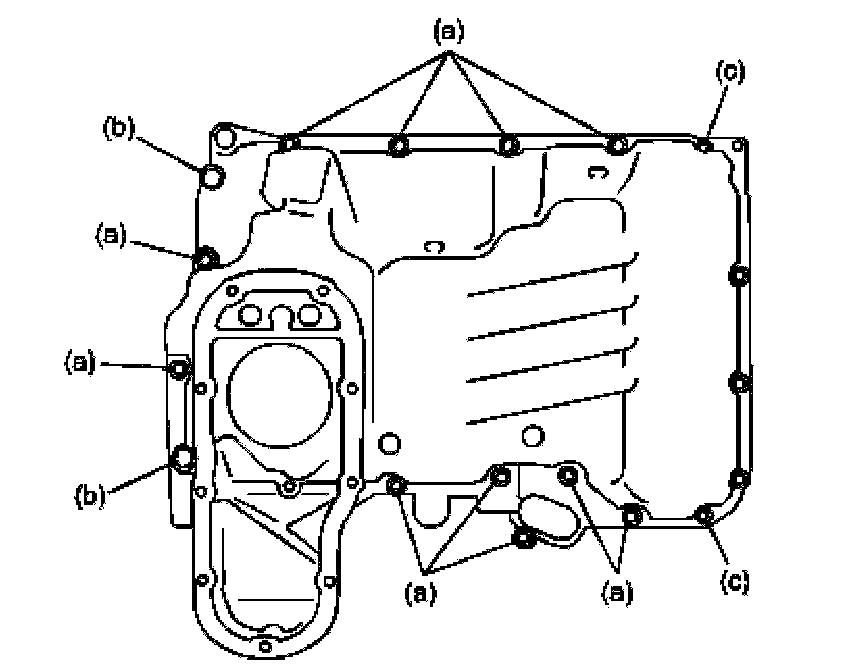

Oil PanUpper oil pan:

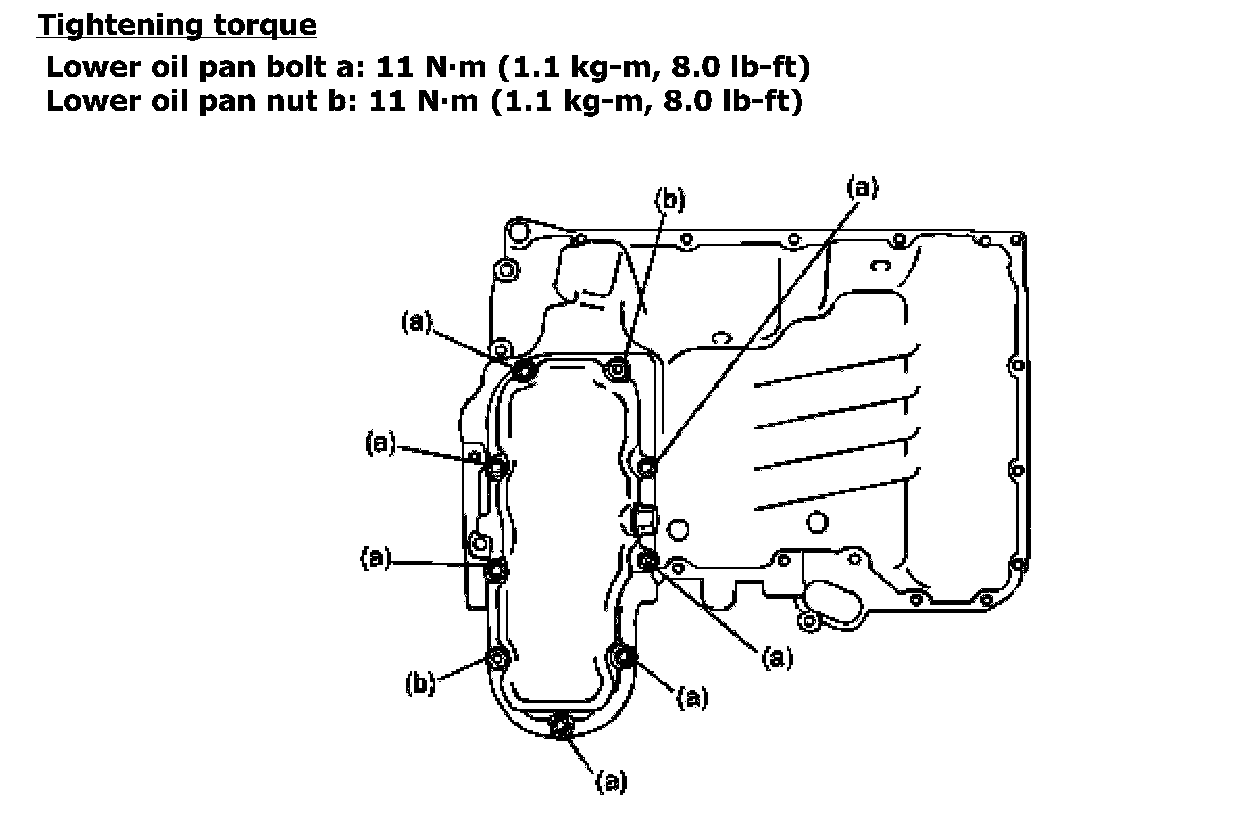

Lower oil pan:
Tighten bolts and nuts to specified torque.
Tightening torque
Upper
oil pan bolt (M6) a:
11 Nm (1.1 kg-m, 8.0 ft. lbs.)
Upper
oil pan bolt (M8) b:
25 Nm (2.5 kg-m, 19.5 ft. lbs.)
Upper
oil pan nut c:
11 Nm (1.1 kg-m, 8.0 ft. lbs.)
