Transmission Temperature Sensor/Switch: Testing and Inspection

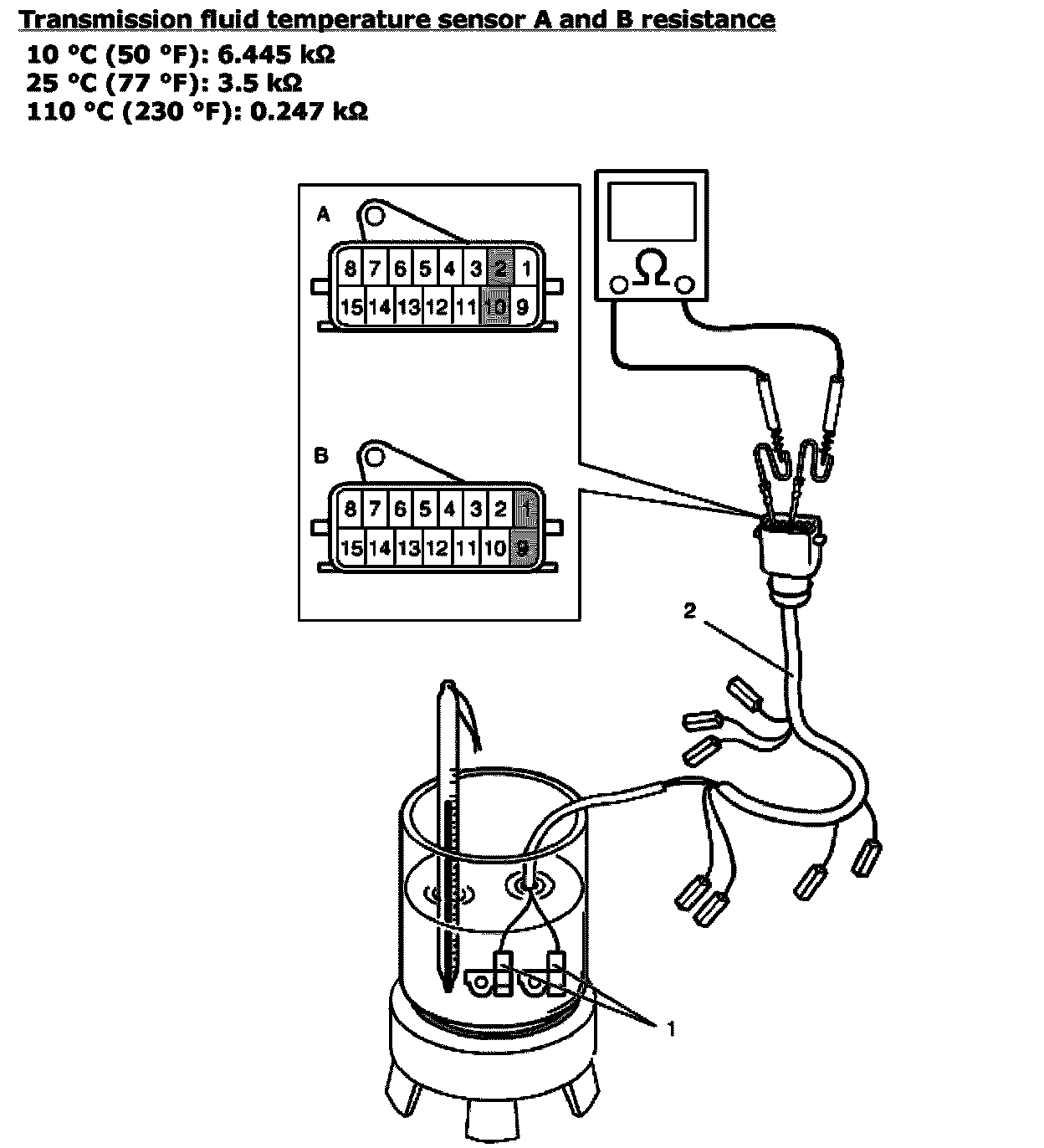

Transmission Fluid Temperature Sensor A and B Inspection Immerse transmission fluid temperature sensor A and B (1) in water or oil. Check transmission fluid temperature sensor A or B resistance between terminals of connector. Thus make sure its resistance decreases as temperature rises.
