Front Door Window Glass: Service and Repair

Front Door Glass Removal and Installation

Reference: Front Door Window Components

REMOVAL

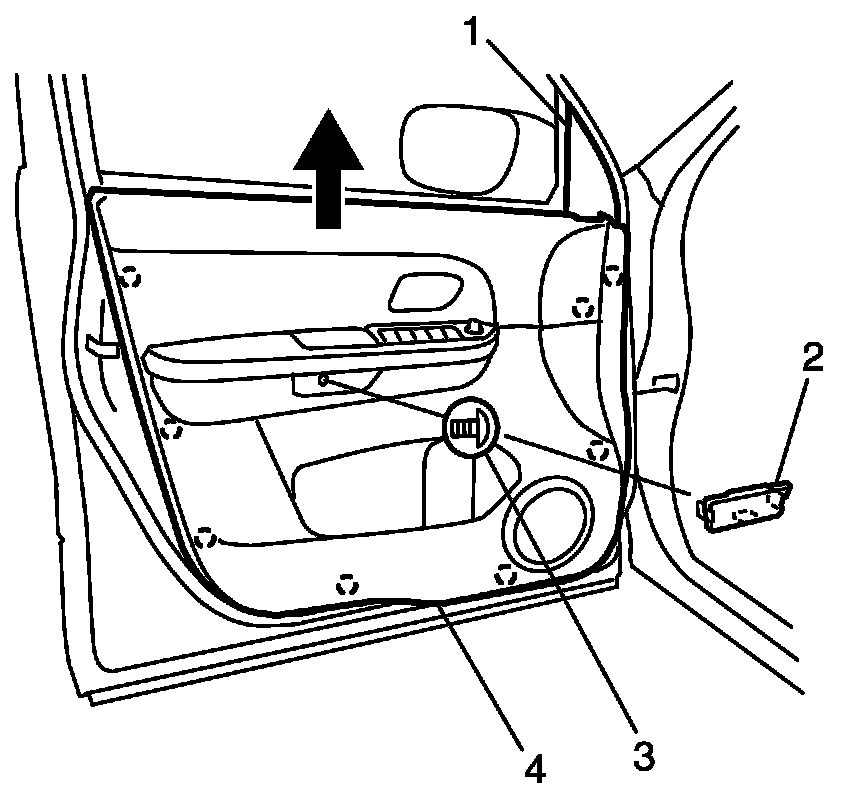

1. Remove door mirror trim (1. and door trim screw cover (2).
2. Remove door trim screw (3).
3. Remove door trim (4) as shown.
And disconnect power window switch lead wire and door illumination light lead wire at coupler.

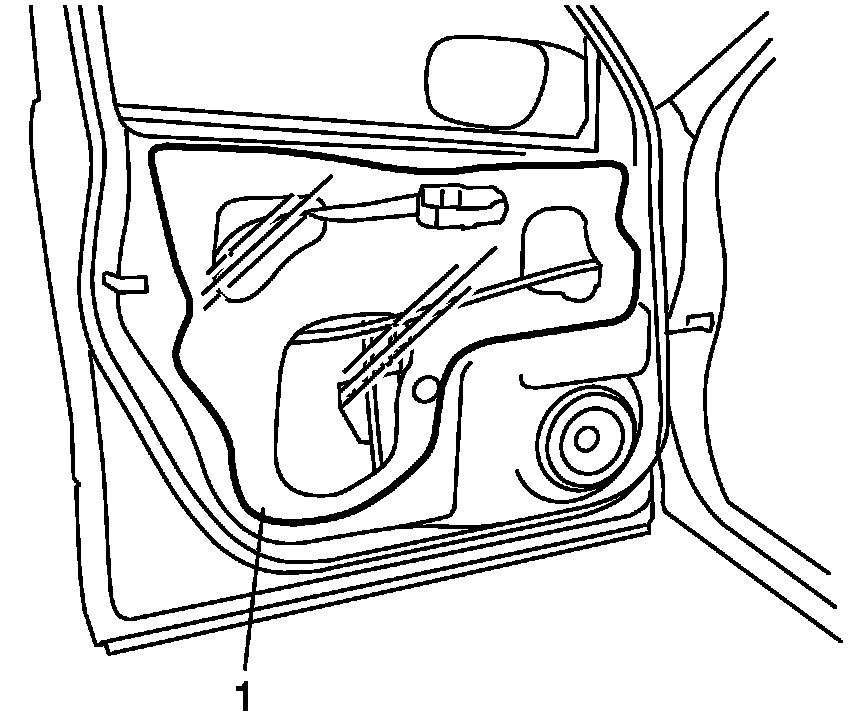

4. Remove door sealing cover (1).

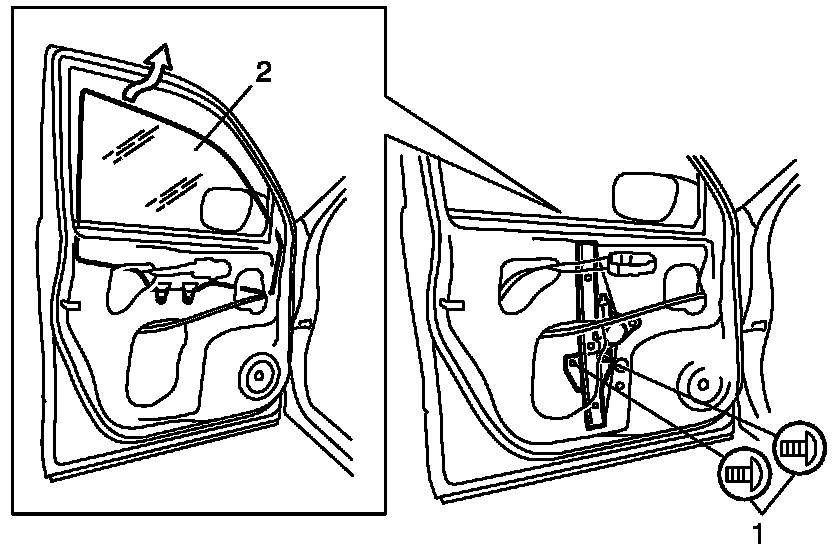

5. Remove door glass mounting screws (1).
6. Remove door glass (2) while tilting it as shown.






INSTALLATION
Reverse removal procedure noting the following instructions.
- If there is deformity for glass run, replace it with a new one.

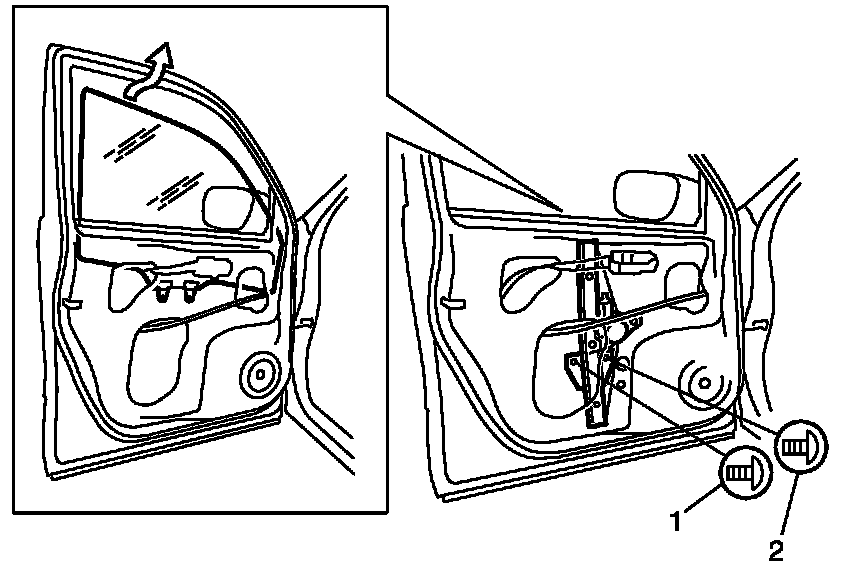

- Tighten door glass rear mounting screw (1) first, and then tighten door glass front mounting screw (2).

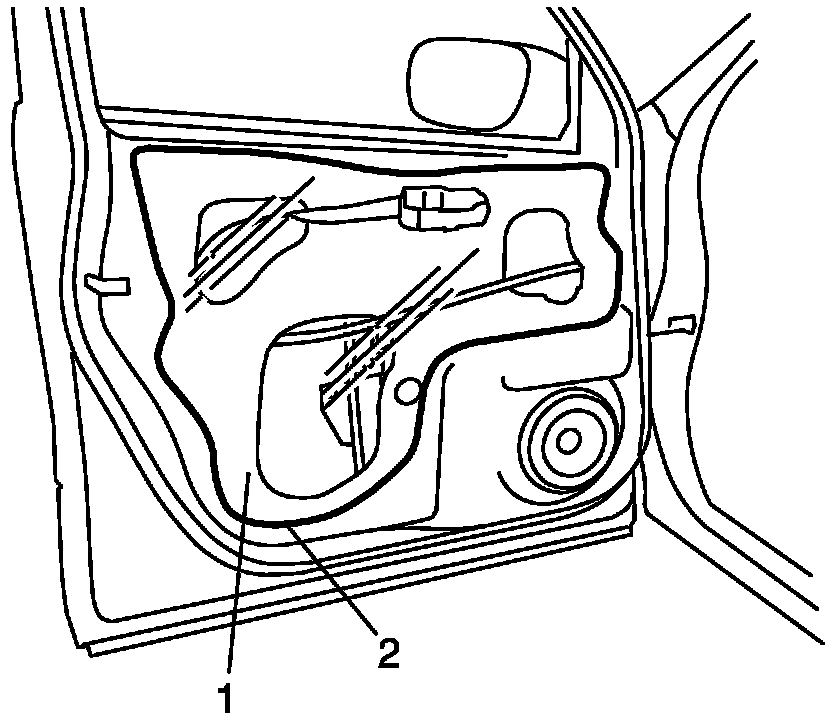

- Secure door sealing cover (1) with adhesive (2).






- Install front door trim.

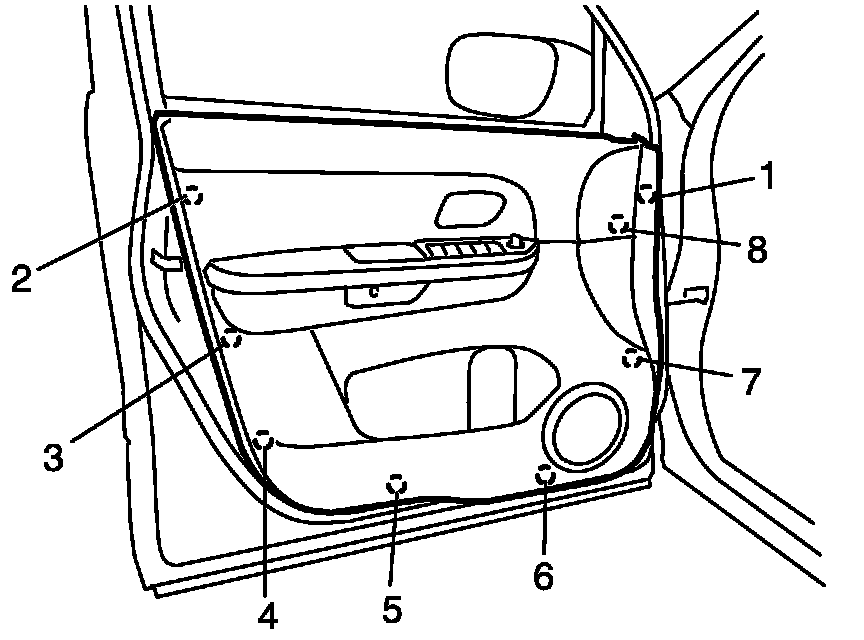

Front door trim attaching order
(1)--> (2) -->(3) -->(4) --> (5) --> (6) --> (7) --> (8)
