Windshield Washer Pump: Service and Repair

Washer Tank and Washer Pump Removal and Installation

Reference: Wipers and Washers Components

Removal
1. Disconnect negative (-) cable at battery.
2. Remove front bumper.
3. Remove right side headlight housing from vehicle body.

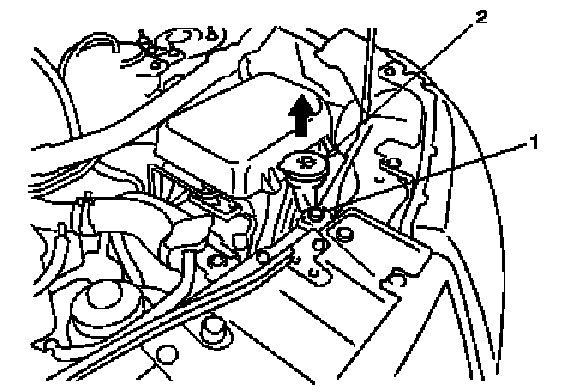

4. Remove grommet (1) and upper part (2) of washer tank.
5. Remove washer tank attaching bolts (4).
6. Disconnect washer pump lead wire couplers and hoses.

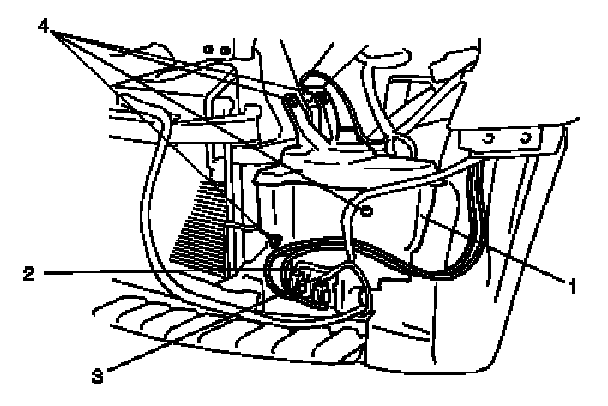

7. Remove washer tank (1).




8. Remove windshield washer pump (2) and rear washer pump (3) (if equipped) from washer tank (1).

Installation

Reference: Washer Pump Inspection
Install washer tank and washer pump by reversing removal procedure, noting the following instructions.
- Connect washer pump connector(s) securely.

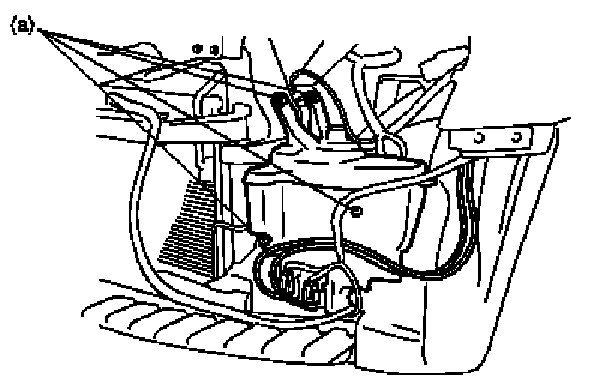

- Tighten washer tank bolts to specified torque.




Tightening torque
Washer tank bolt a: 4 Nm (0.4 kg-m, 3.0 lb-ft)

- After installing headlight housing be sure to inspect and adjust aiming referring to Headlight Aiming Adjustment with Screen.
