Fuel Pressure Check

Fuel Pressure Check

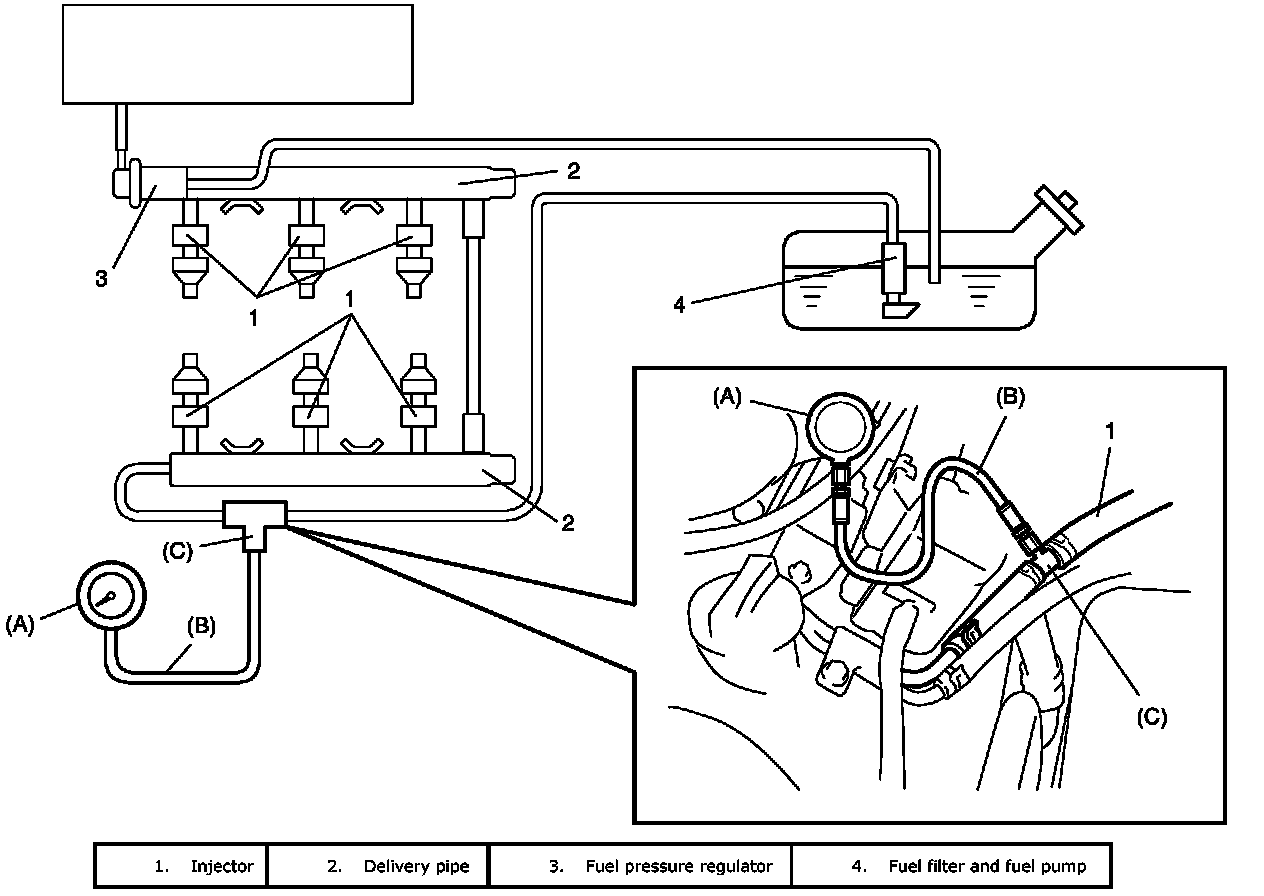

System Diagram:

System Diagram

Special Tool
(A): 09912 58442
(B): 09912 58432
(C): 09912 58490

Step 1-5:

Step 6-8:

Troubleshooting

NOTE: Before using following flow, check to make sure that battery voltage is higher than 11 V. If battery voltage is low, pressure becomes lower than specification even if fuel pump and line are in good condition.
