Front Disc Brake Pad Removal and Installation

Front Disc Brake Pad Removal and Installation

NOTE: When replacing brake pad, replace it on the right and left.

Removal
1. Hoist vehicle and remove front wheel.

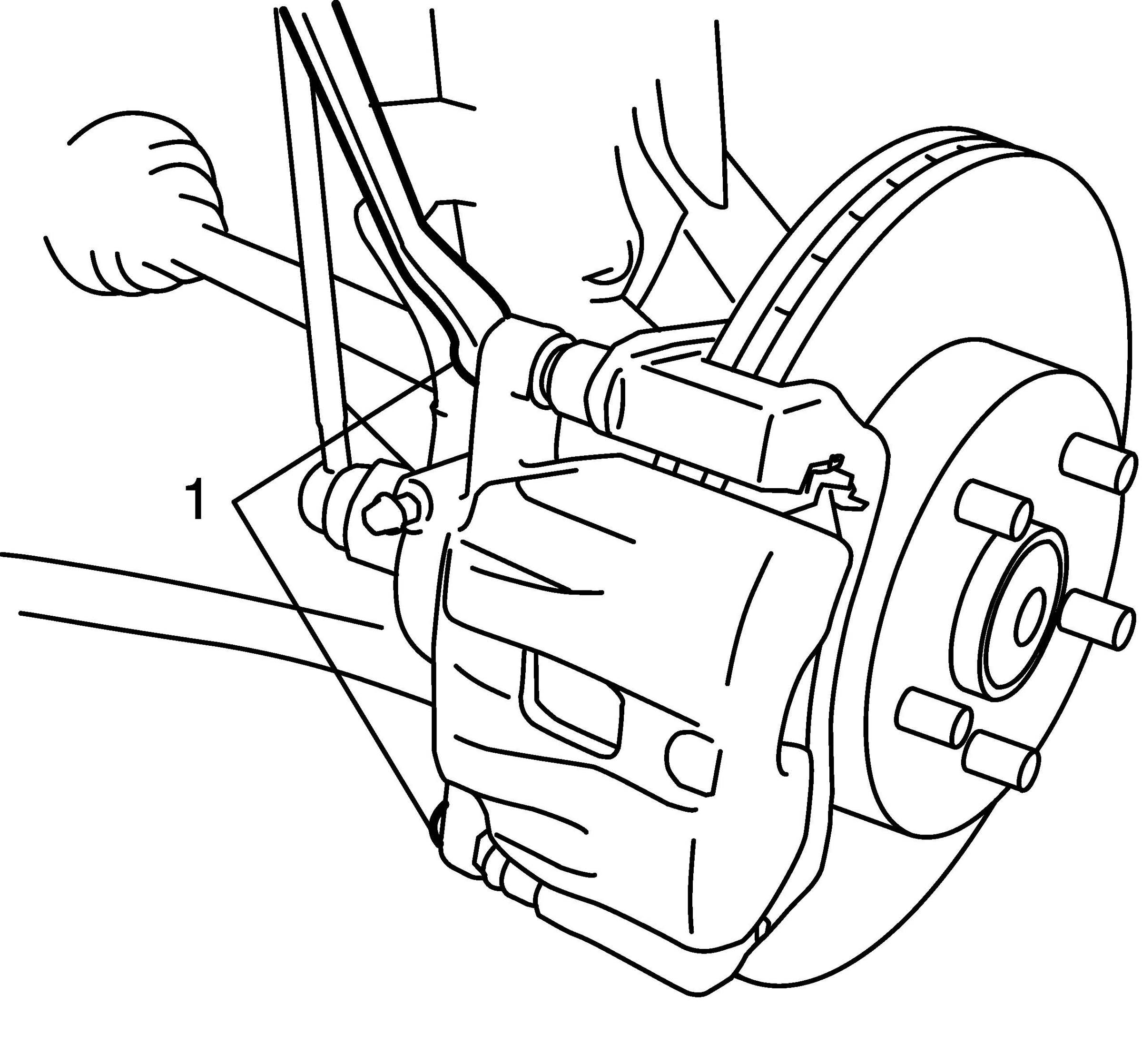

2. Remove caliper pin bolts (1).

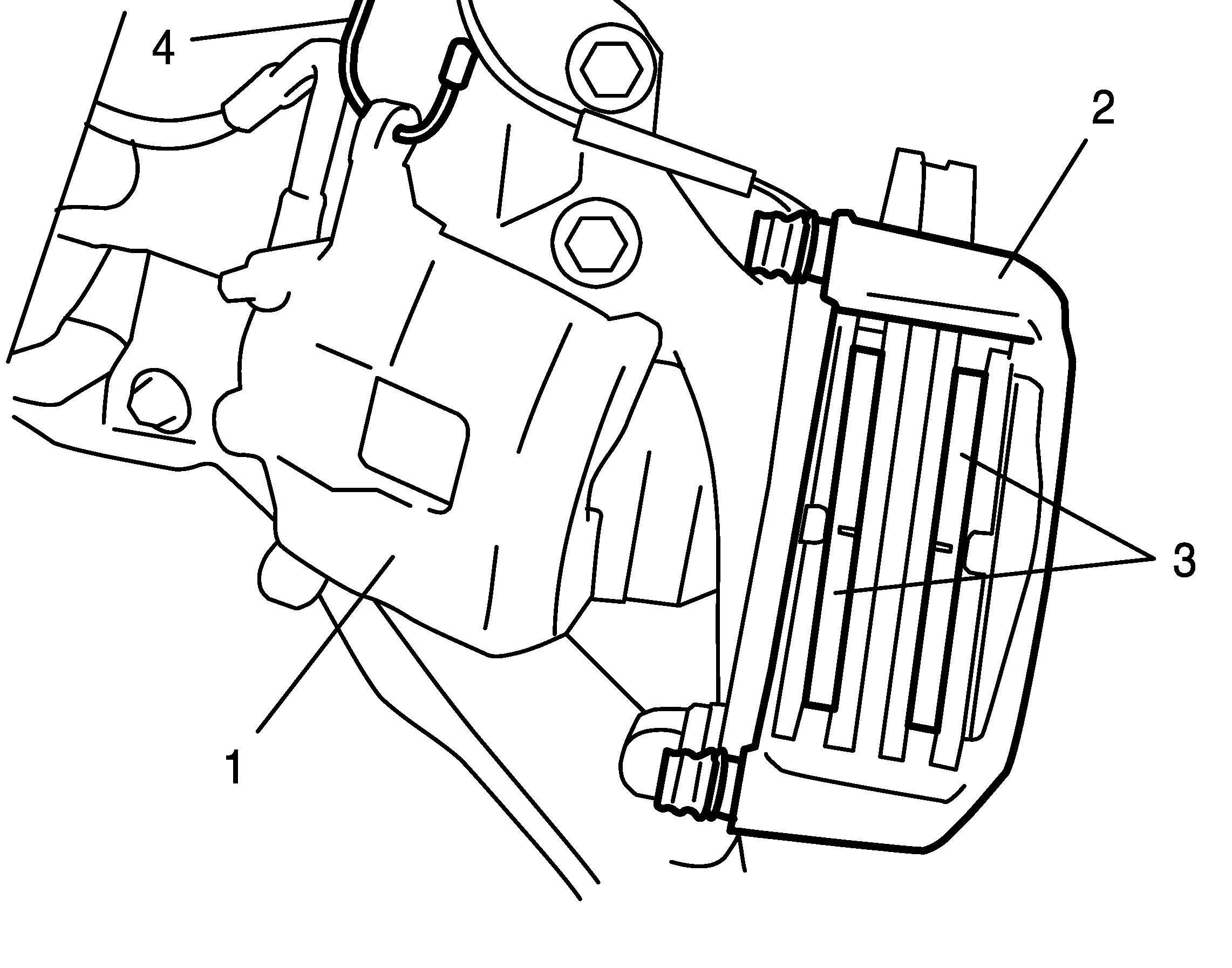

3. Remove caliper (1) from caliper carrier (2).

NOTE: Hang removed caliper (1) with a wire hook (4) or the like so as to prevent brake hose from bending and twisting excessively or being pulled. Don't operate brake pedal with brake pads removed.

4. Remove brake pads (3).

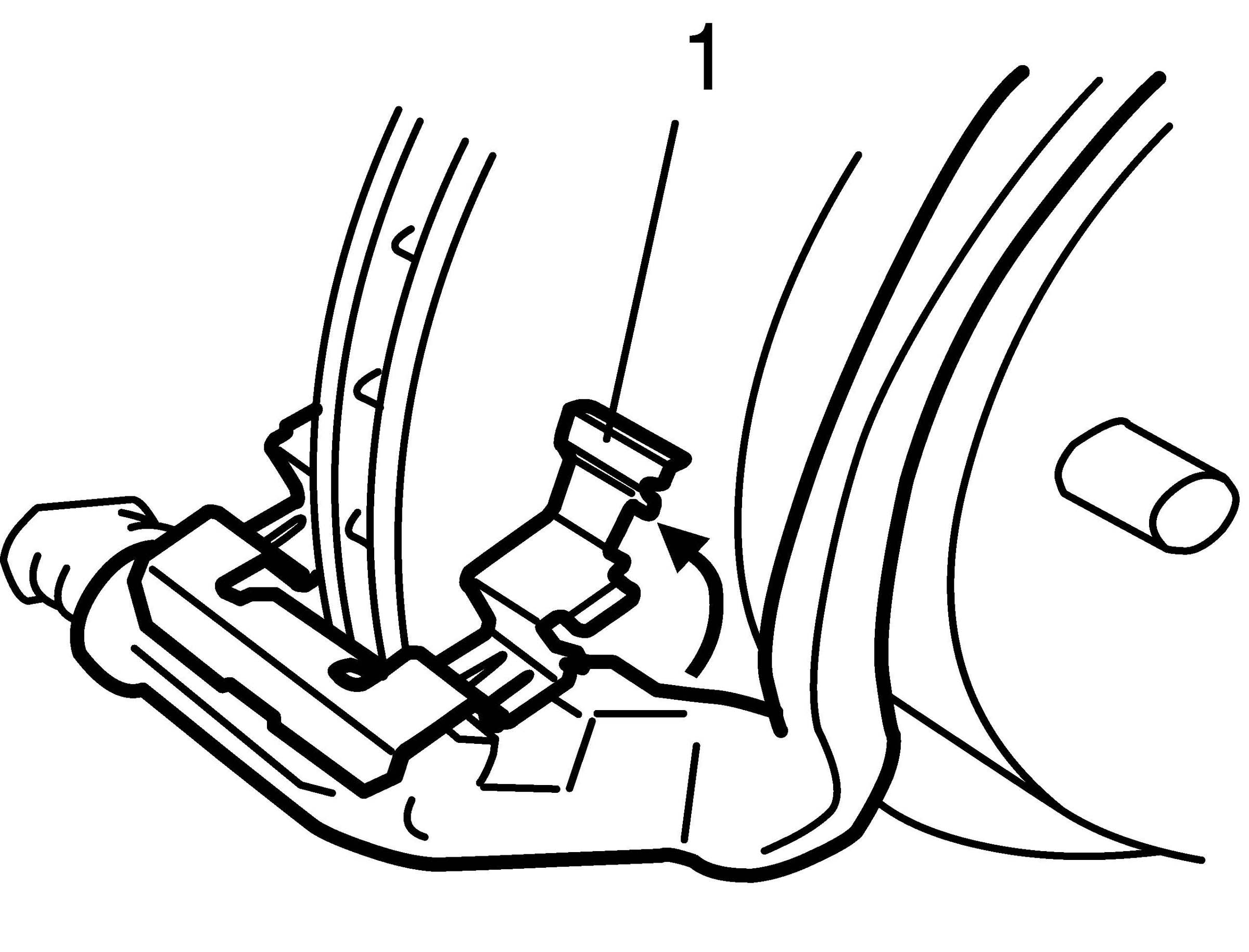

5. Remove brake pad spring (1) as show in figure.





Installation

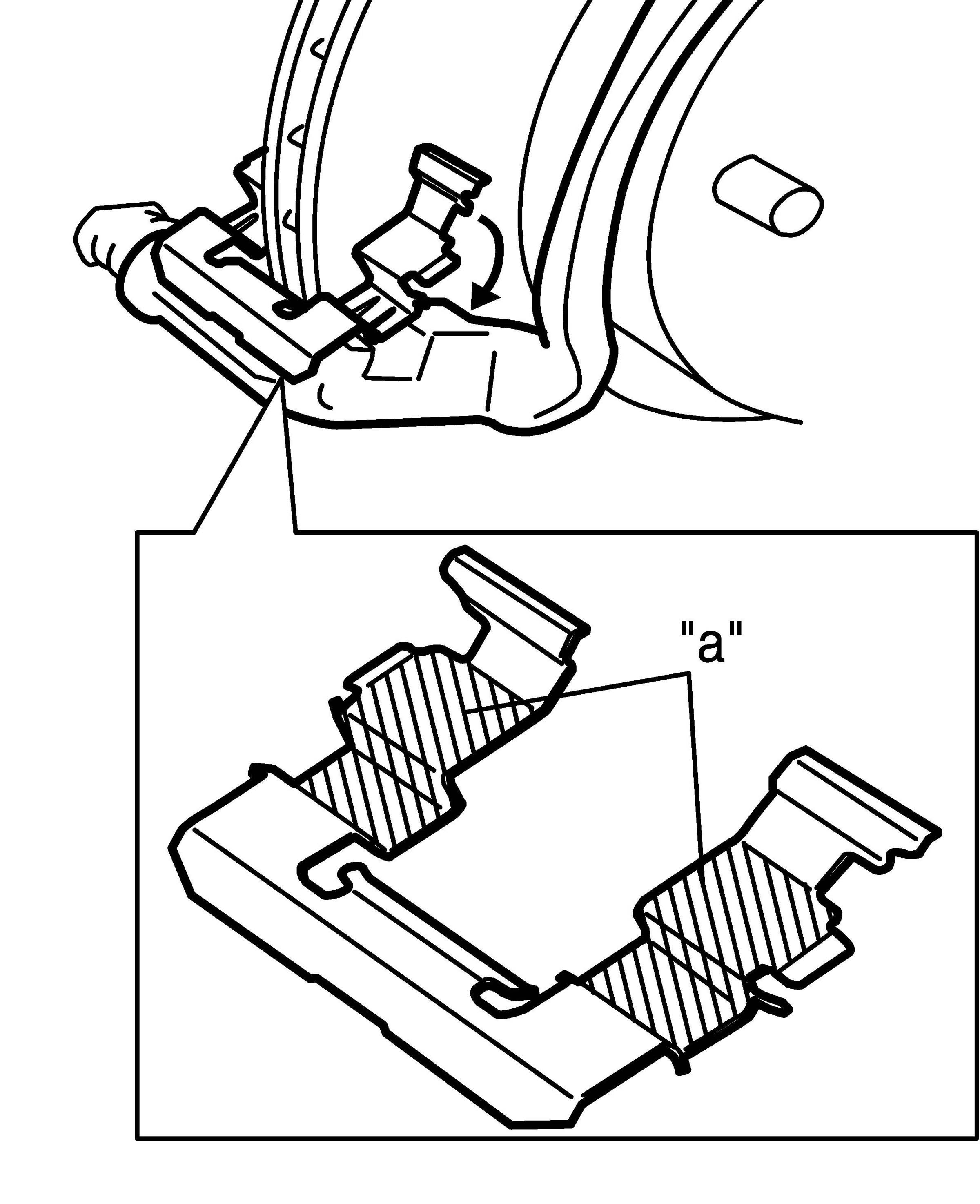

1. Apply small amount of pad grease "a" (included in spare parts) to pad spring and set brake pad spring as shown in figure.

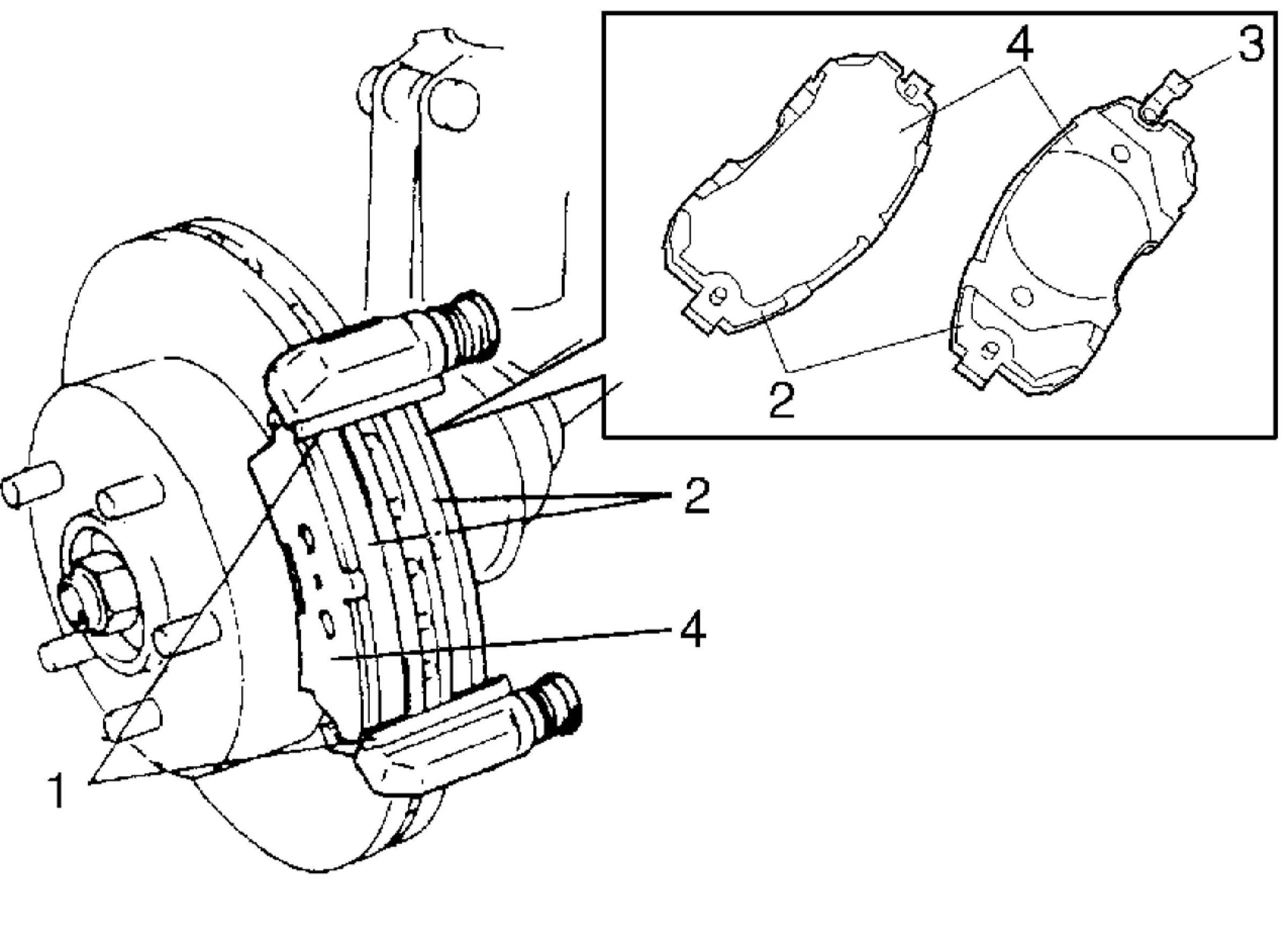

2. Set brake pad springs (1), and install brake pads (2) and shim (4).

NOTE: Install the brake pad with wear indicator (3) to the vehicle center side of front right brake pad.





3. Install caliper and tighten caliper pin bolts to specified torque.

Tightening torque

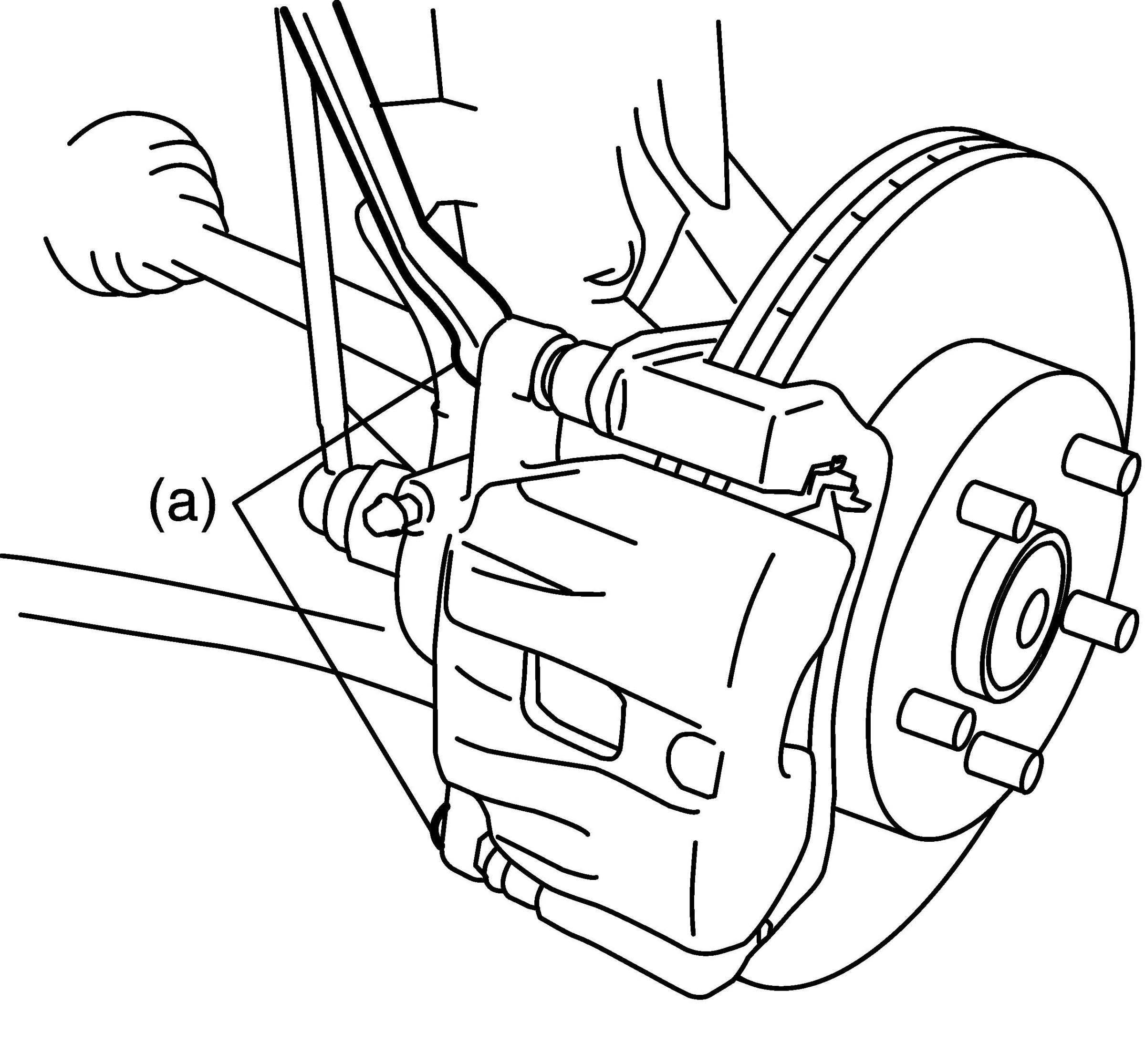

Caliper pin bolt a: 26 Nm (2.6 kgf-m, 19.0 ft. lbs.)





4. Install front wheel.
5. Check brake effectiveness.
