Shift Cable: Adjustments

Gear Select Control Cable Adjustment

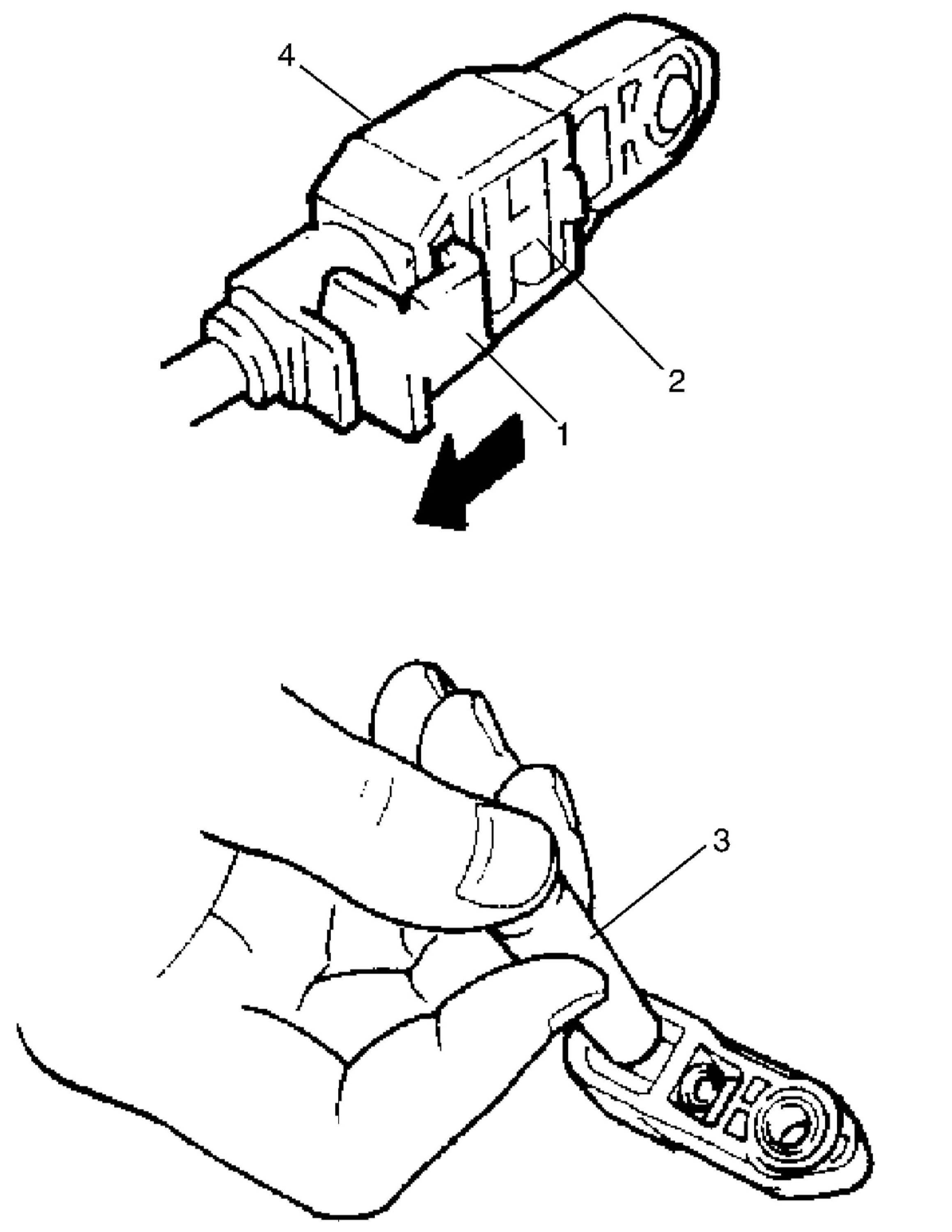

1. Release lock plate (1) which restricts moving of cable end holder (2).
2. Push cable end holder (2) out from adjuster (4) using appropriate tool (3) to disengage cable.

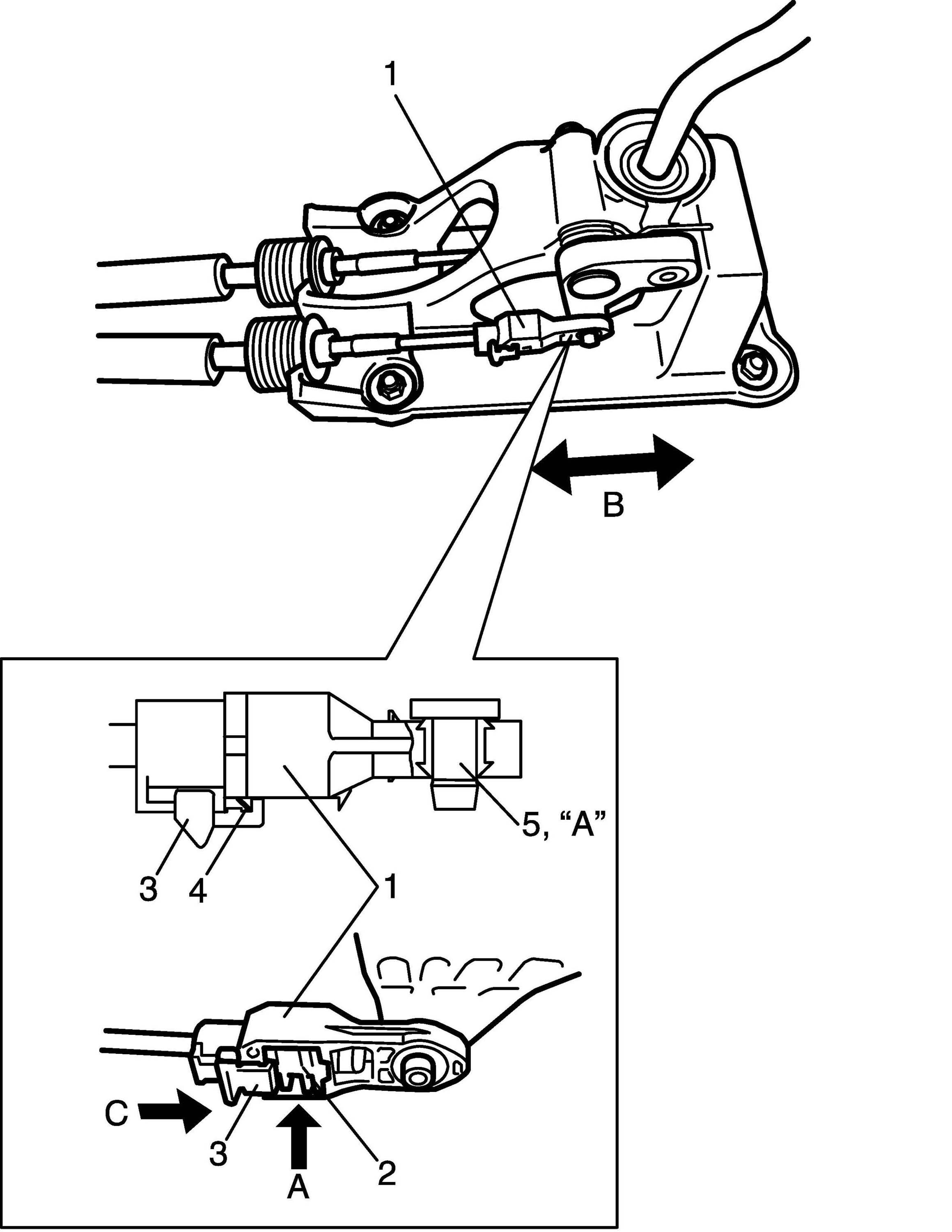

3. Apply grease to pin (5) of gear shift control lever, and then install adjuster (1) into pin of gear shift control lever securely.
"A": Grease 99000-25010SUZUKI Super Grease A
4. Push cable end holder (2) in the direction of A.

NOTE: At this time, do not apply force in the cable operation direction B to adjuster.

5. Slide lock plate (3) in the direction of C, until it gets over the claw (4) of cable end holder.
