Blower Motor Controller Removal and Installation




Blower Motor Controller Removal and Installation

Blower Unit and Heater Unit Components

Removal

1) Disconnect negative (-) cable at battery.
2) Disable air bag system referring to Disabling Air Bag System Disabling Air Bag System:Advanced Air Bag
or Disabling Air Bag System Disabling Air Bag System:Except Advanced Air Bag.
3) Remove glove box.
4) Remove passenger side instrument panel under cover Service and Repair.

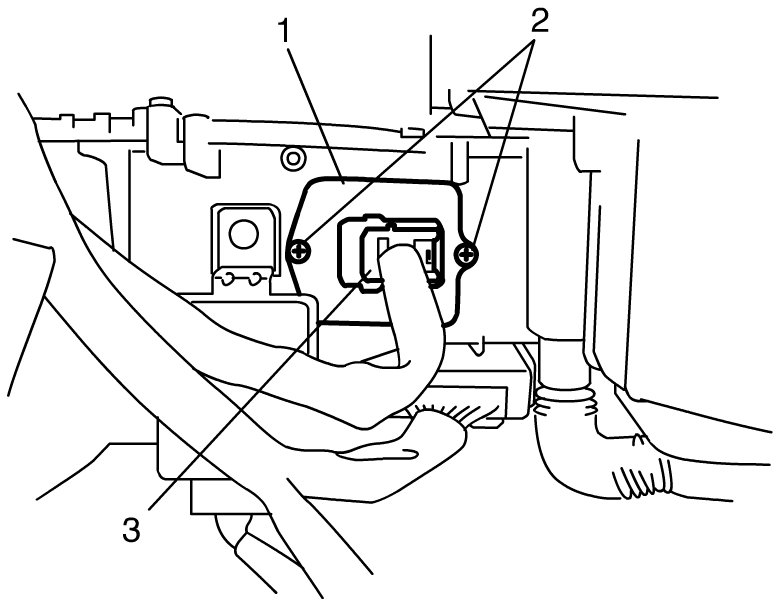

5) Disconnect blower motor controller coupler (3).
6) Remove blower motor controller (1) by loosening its fastening screws (2).






Installation

Blower Motor Controller Inspection
1) Reverse removal procedure.
2) Enable air bag system referring to Enabling Air Bag System Enabling Air Bag System:Advanced Air Bag or Enabling Air Bag System Enabling Air Bag System:Except Advanced Air Bag.
