License Plate Lamp: Service and Repair

License Light Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) For vehicle without spare tire, remove rear end door trim from rear end door referring to Rear End Door Assembly Components Rear End Door Assembly Components.

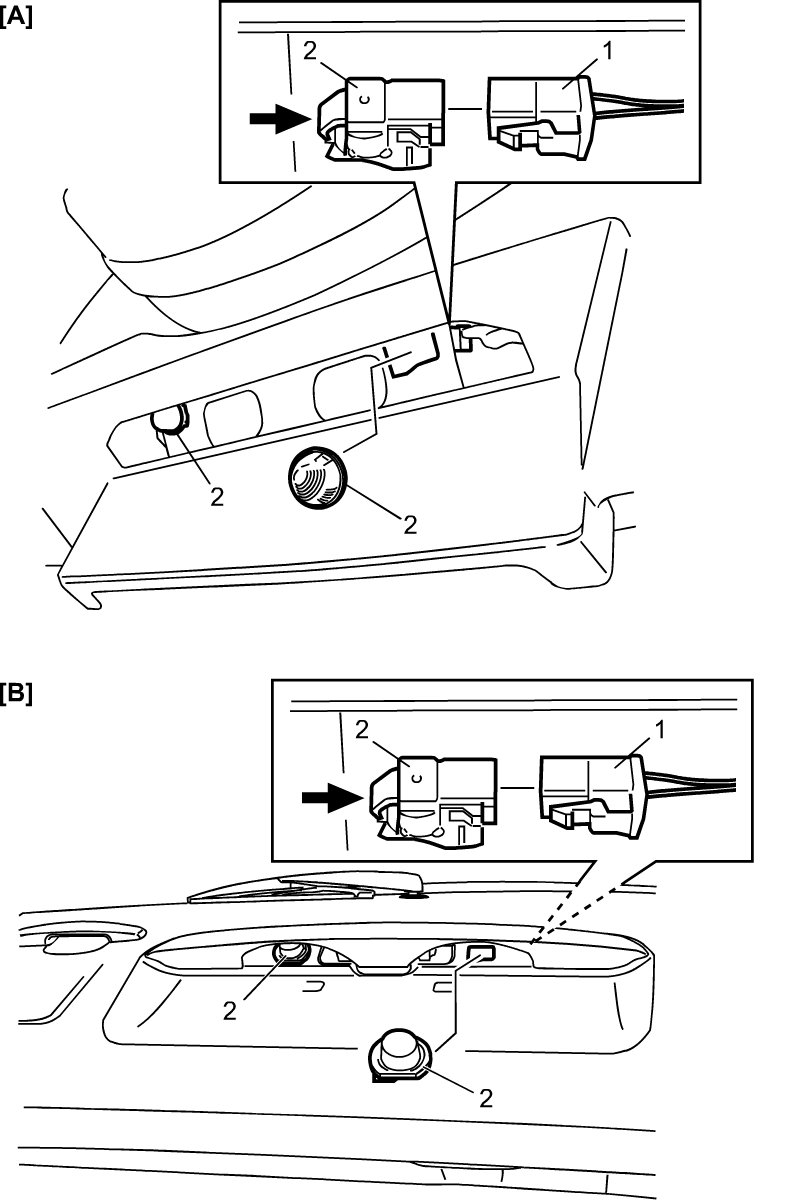

3) Disconnect coupler (1) from license light (2).
4) Push locking part to arrow direction, and then remove license light (2).

Installation

Reverse removal procedure for installation.
