Auxiliary Input / Output Jack: Service and Repair
USB Socket Removal and InstallationRemoval 1)
Remove instrument panel center lower box.
Service and Repair 2)

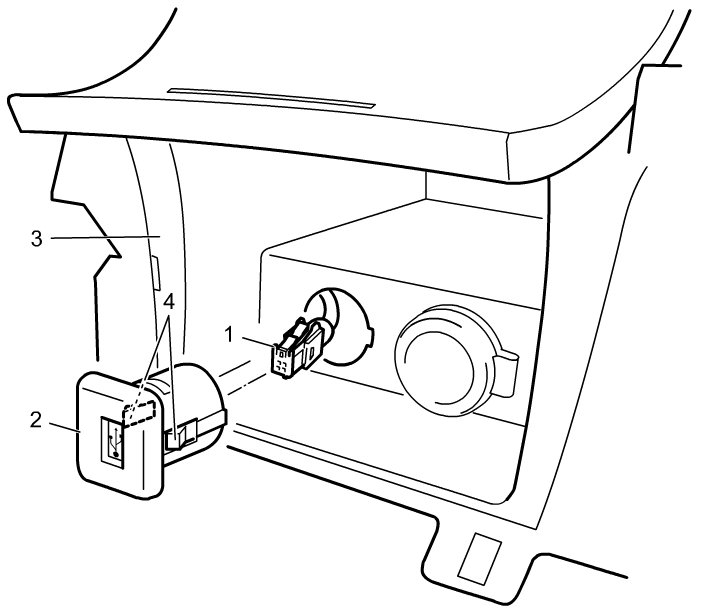

Disconnect USB socket connector (1), and then remove USB socket (2) from instrument panel center lower box (3) while releasing the locks (4).
Installation USB Socket Inspection
Reverse removal procedure.
