Brake Pad: Specifications

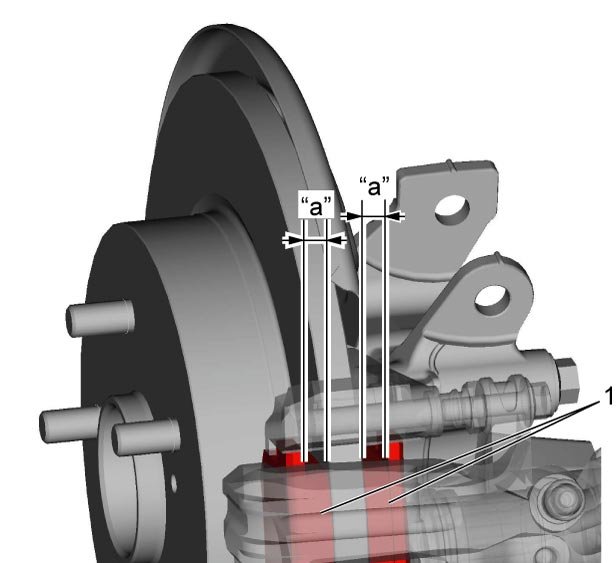

Brake Pad Minimum ThicknessFront
brake pad thickness (lining thickness) "a"
Standard:
11 mm (0.43 in.)
Limit:
2 mm (0.08 in.)

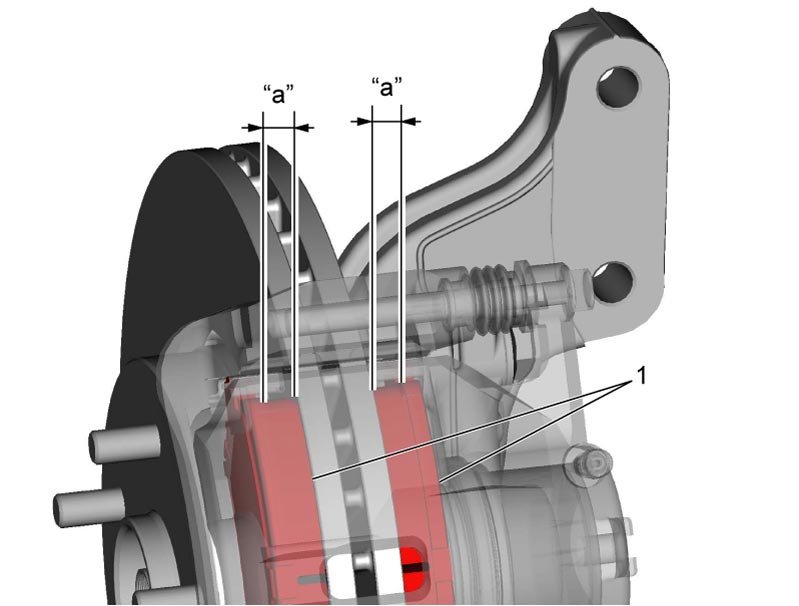

Rear
brake pad thickness (lining thickness) "a"
Standard:
9 mm (0.35 in.)
Limit:
1.5 mm (0.06 in.)
