Brake Fluid Inspection

Brake Fluid Inspection

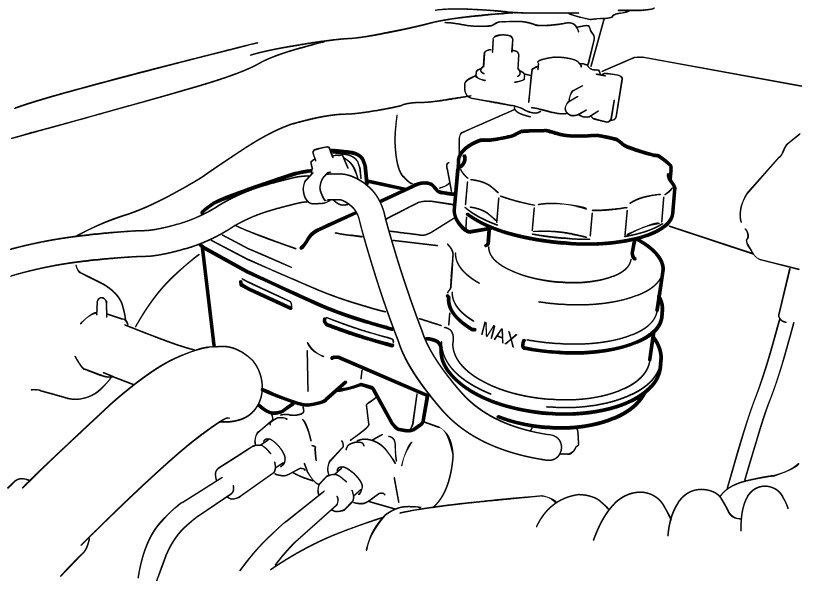

1) Check parts around master cylinder and reservoir for fluid leakage. If any sign of leakage is found, correct defects.
2) Check fluid level.

If fluid level is lower than the minimum level of reservoir, refilling is necessary. Fill reservoir with specified brake fluid.

For the details, refer to Brake Fluid Level Inspection Brake Fluid Level Inspection.

NOTE:
The brake system of this vehicle is factory-filled with brake fluid of the type indicated on the reservoir tank cap. If any other type of fluid is used in place of or mixed in with the original fluid, the brake system components will be seriously damaged.

Do not use brake fluid that is different from that indicated on the reservoir cap. In addition, never use old or used brake fluid, or fluid from an unsealed container.

Brake fluid
Refer to reservoir cap of brake master cylinder.
