OBD System Description - EVAP Control System Monitor




OBD System Description - EVAP Control System Monitor

NOTE:

For "Ignition mode" described in the following table, it means power supply mode in keyless push start system.

For more details of ignition mode, refer to Description of Keyless Engine Start Function Description of Keyless Engine Start Function.

System Description / Monitoring Procedure

Refer to Description and Operation EVAP Leak Check System Description.

DTC Description / Detecting Condition / Confirmation Procedure

P0441

Refer to P0441 DTC P0441.

P0456

Refer to P0456 DTC P0456.

P2404

Refer to P2404 DTC P2404.

EVAP Control System Monitor

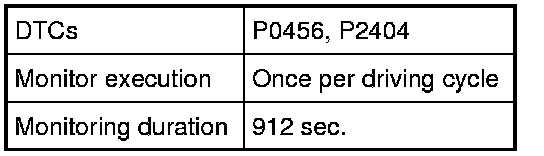

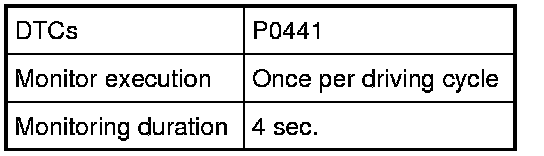

Operation

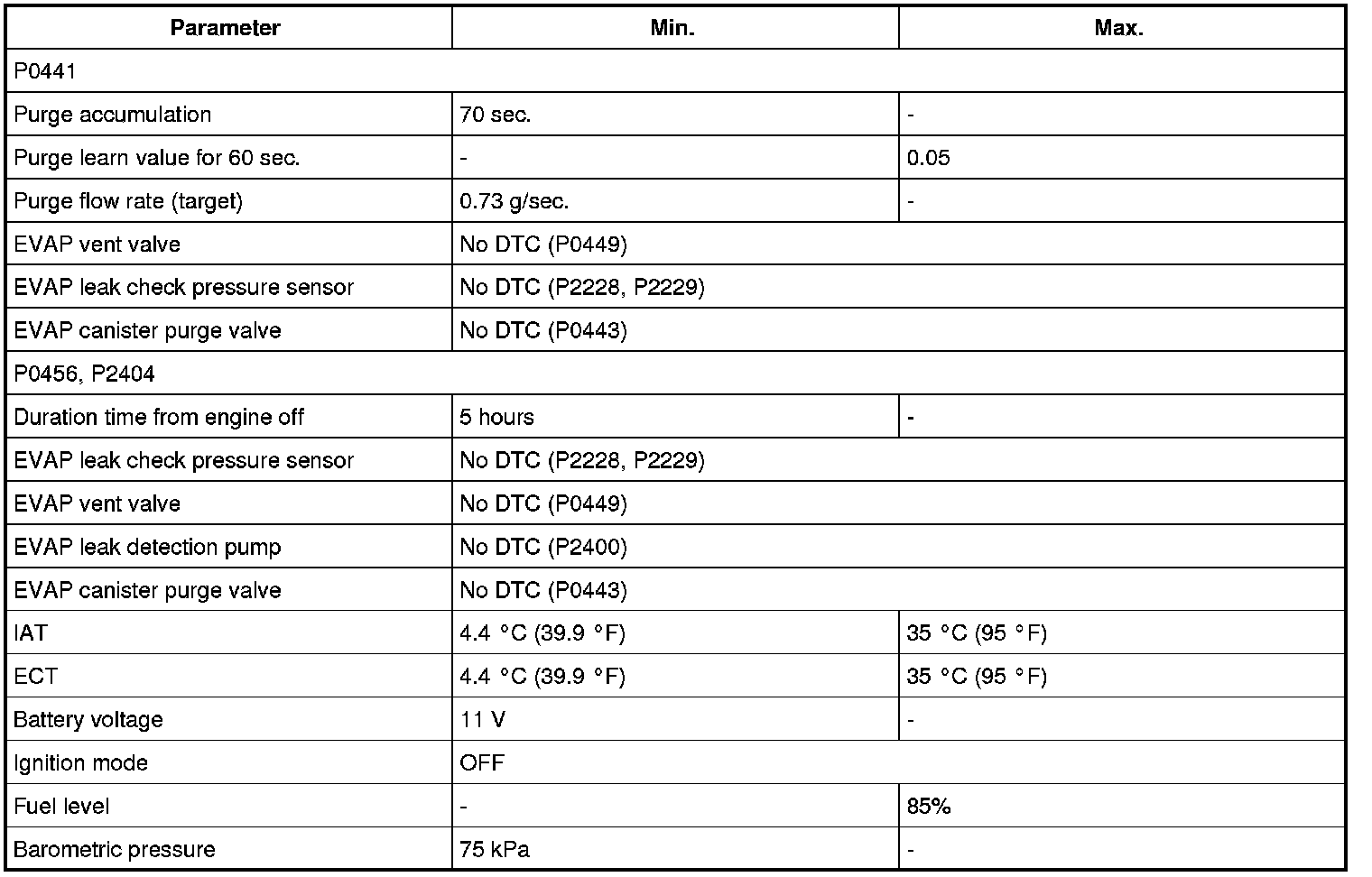

Enabled conditions

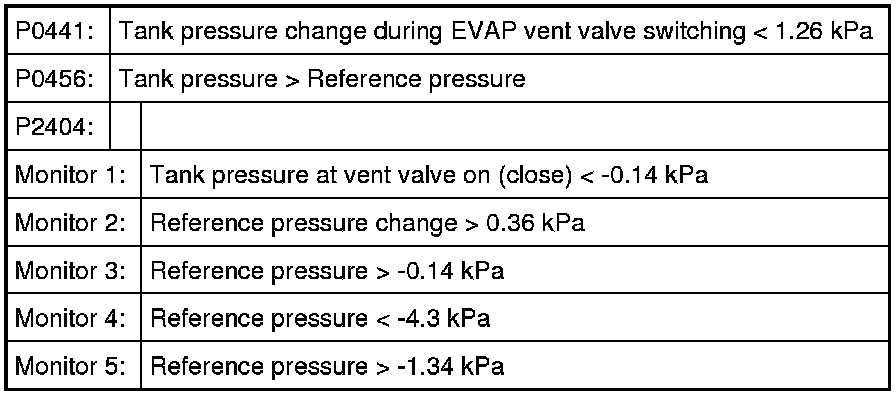

Typical malfunction thresholds






MODE $06 Data
