Ignition Control Module: Locations

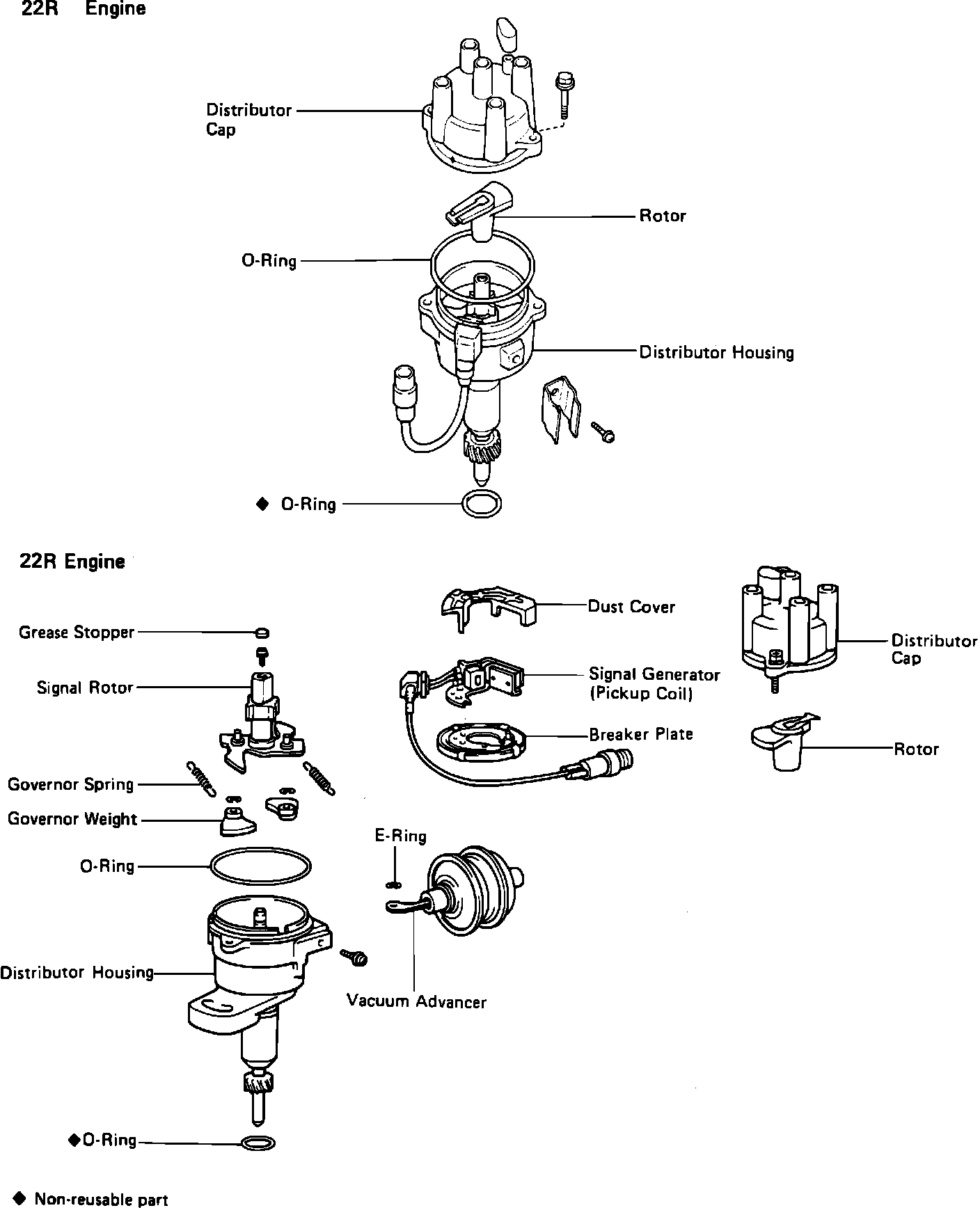

Distributor, Exploded View:





DISTRIBUTOR:
Located on front of exhaust side of cylinder head

ECM Location:





ELECTRONIC CONTROL UNIT (ECU):
Located behind right kick panel

IGNITER:
Mounted on ignition coil

Primary Coil Test:





IGNITION COIL:
Located on left side of engine compartment

SIGNAL GENERATOR PICKUP COILS:
Located inside distributor

SPARK PLUGS:
Located on the exhaust side of cylinder head

Tachometer Connector:





TACHOMETER CONNECTOR:
Located near distributor
