Air Conditioning Control

DISASSEMBLY

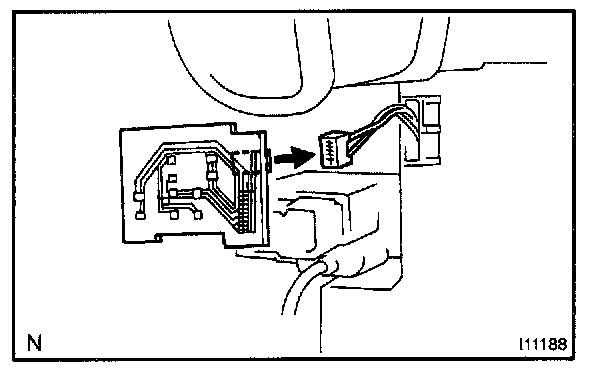

1. REMOVE AIRBAG INDICATOR CIRCUIT
Release the 2 claws and remove the indicator circuit, then disconnect the connector.

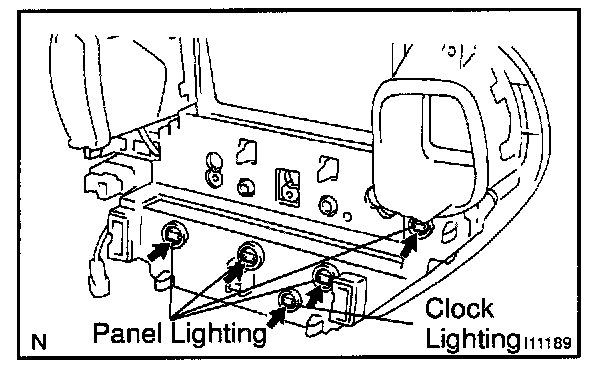

2. REMOVE BULBS
Remove the 5 bulbs.

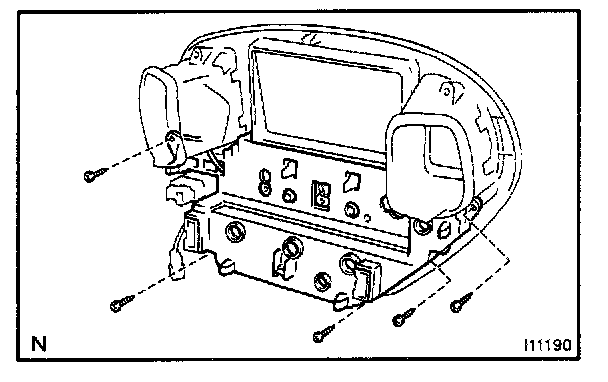

3. REMOVE HEATER CONTROL HOUSING
a. Remove the 5 screws.
b. Remove the heater control housing.

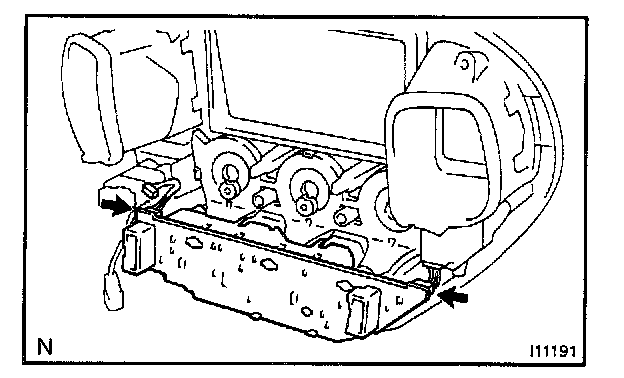

4. REMOVE INTEGRATION CIRCUIT
a. Disconnect the 2 connectors.
b. Remove the circuit.

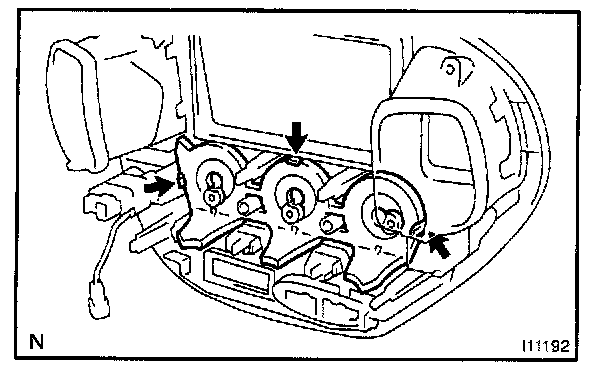

5. REMOVE LENS
Release the 3 claws, then remove the lens.

REASSEMBLY




1. INSTALL LENS
Install the lens.

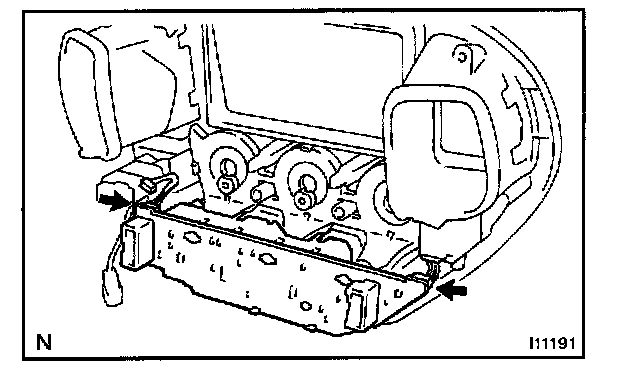

2. INSTALL INTEGRATION CIRCUIT
a. Connect the 2 connectors.
b. Install the circuit.




3. INSTALL HEATER CONTROL HOUSING
a. Connect the connector
b. Install the heater control housing.
c. Install the 5 screws.




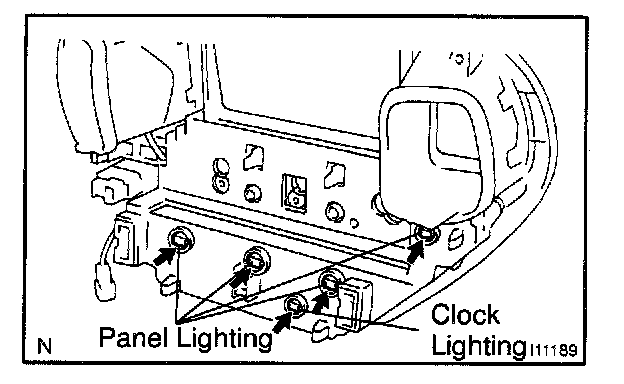

4. INSTALL BULBS
Install the 5 bulbs.

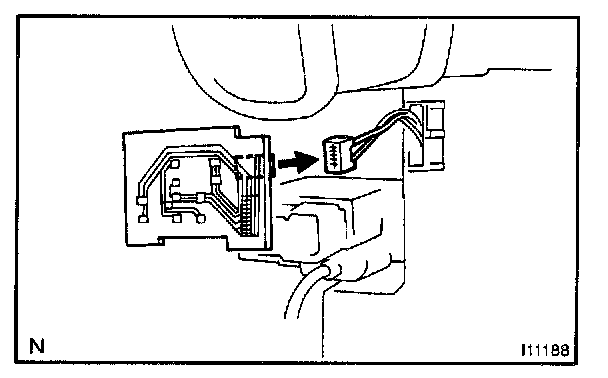

5. INSTALL AIRBAG INDICATOR CIRCUIT
a. Connect the connector.
b. Install the circuit.
