Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

Terminals Of ECU/Pinouts:

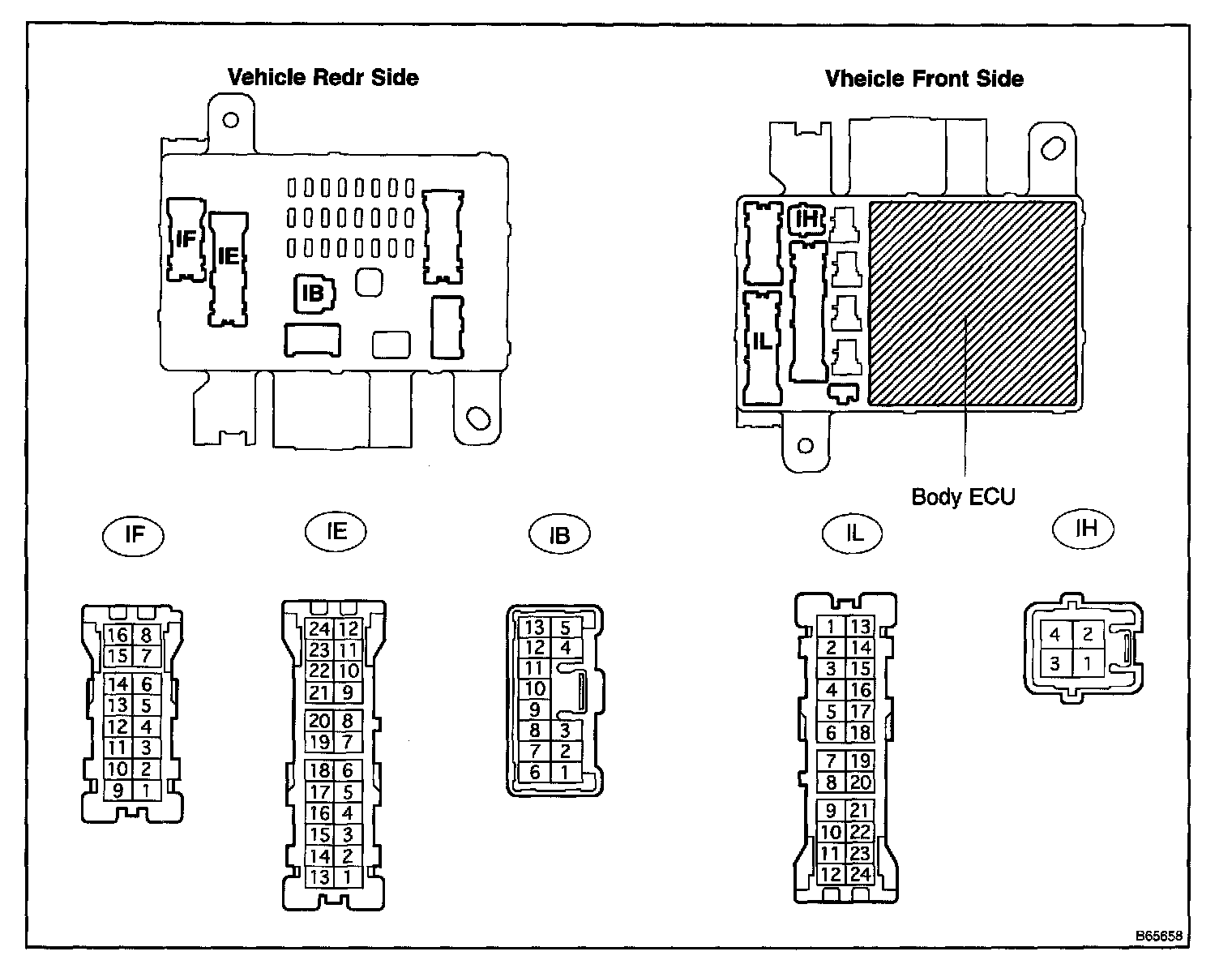

1. CHECK DRIVER SIDE JUNCTION BLOCK ASSY (BODY ECU)
a. Disconnect the IB, IE, IF, IH and IL J/B connectors.
b. Check the voltage or continuity of each terminal of the wire harness side connectors.

Standard:

If the result is not as specified, there may be a malfunction on the wire harness side.

Terminals Of ECU/Pinouts:

2. CHECK THEFT WARNING ECU ASSY (THEFT DETERRENT ECU)
a. Disconnect the T5 ECU connector.
b. Check the voltage or continuity of each terminal of the wire harness side connector.

Standard:

If the result is not as specified, there may be a malfunction on the wire harness side.

Terminals Of ECU/Pinouts:

3. CHECK MULTIPLEX NETWORK DOOR ECU BACK (BACK DOOR ECU)
a. Disconnect the B8 ECU connector.
b. Check the voltage or continuity of each terminal of the wire harness side connector.

Standard:

If the result is not as specified, there may be a malfunction on the wire harness side.
