Oil Pan, Engine
Oil pan sub-assy No.2 x Drain plug
39 Nm (398 kgf-cm, 29 ft. lbs.)
Oil pan sub-assy x Cylinder block

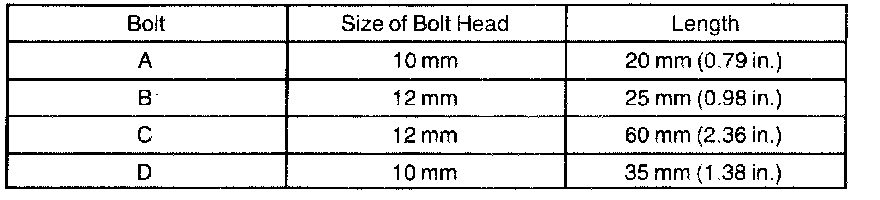

Bolt A and D
7.5 Nm (76 kgf-cm, 66 inch lbs.)
Bolt B. C and nut
28 Nm (286 kgf-cm, 21 ft. lbs.)
Oil pan baffle plate x Oil pan sub-assy
7.5 Nm (80 kgf-cm, 66 inch lbs.)
On pan sub-assy No.2 x
Oil pan sub-assy
7.5 Nm (76 kgf-cm, 66 inch lbs.)
