ABS Warning Light Circuit
ABS Warning Light CircuitCIRCUIT DESCRIPTION
If ECU detects trouble, it turns on the ABS warning light, and prohibit the ABS control at the same time. At this time, the ECU records a DTC in memory.
Connect terminal Tc and CG of the DLC3 to make the ABS warning light blink and output DTC.

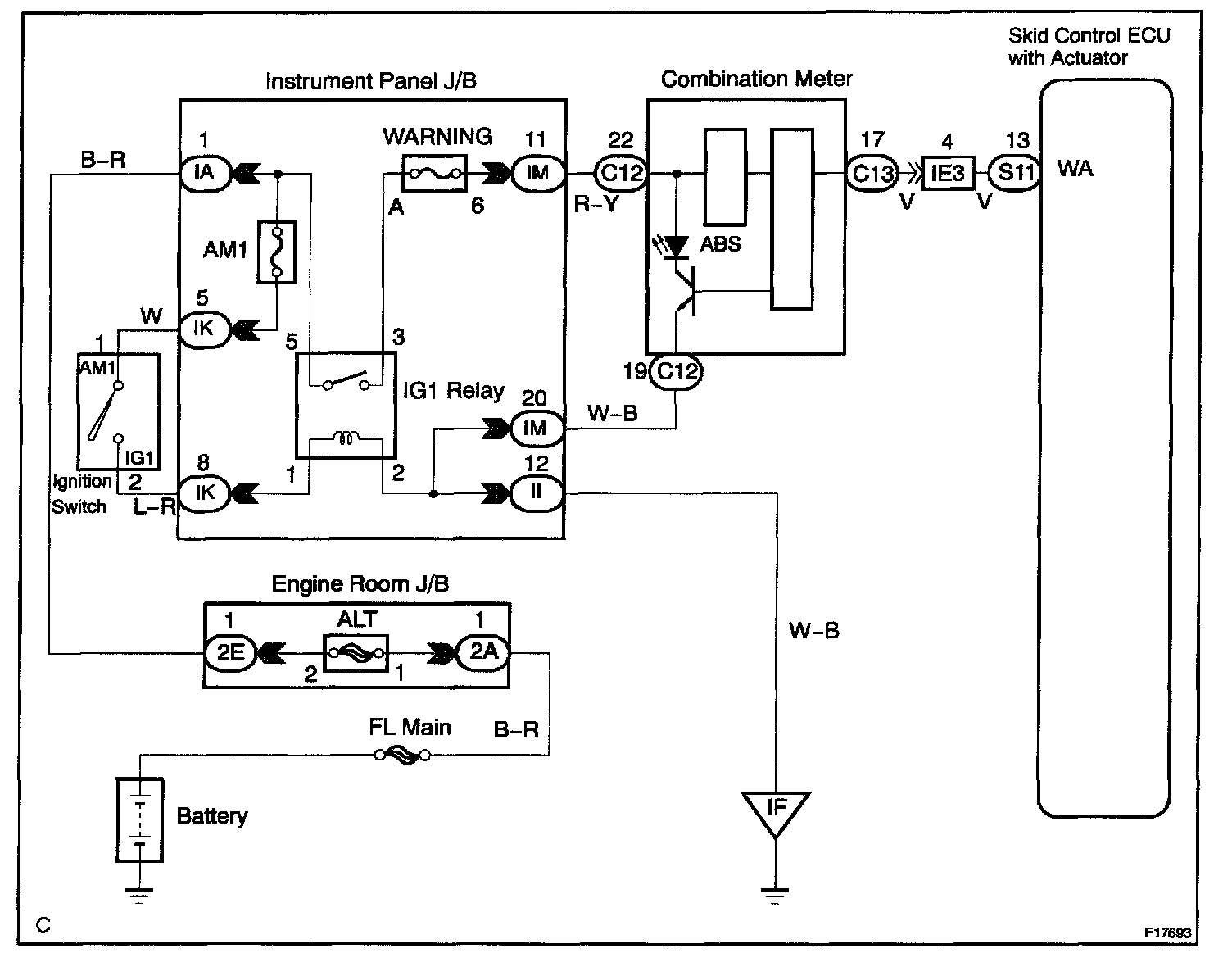

Wiring Diagram:

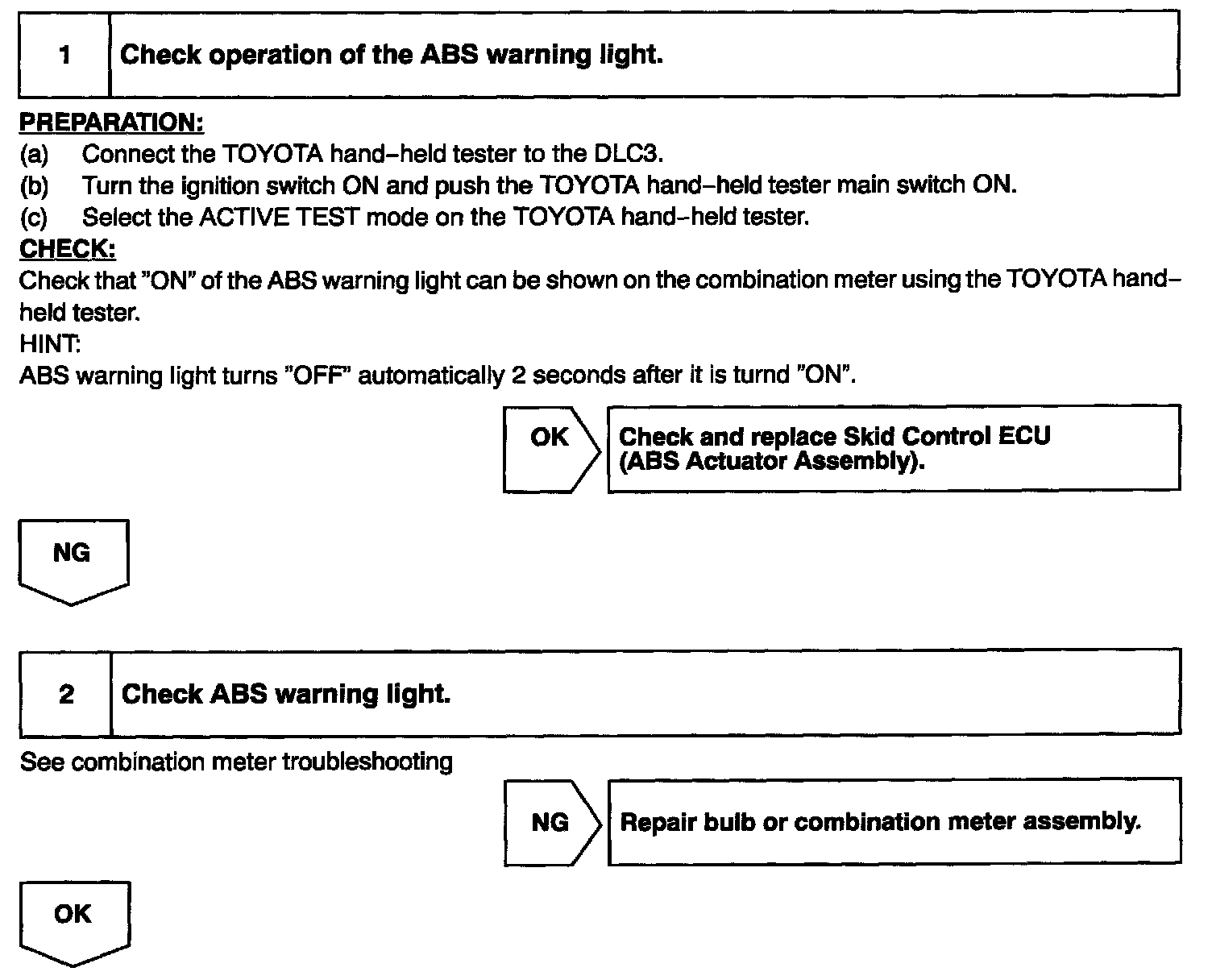

Step 1 - 2:

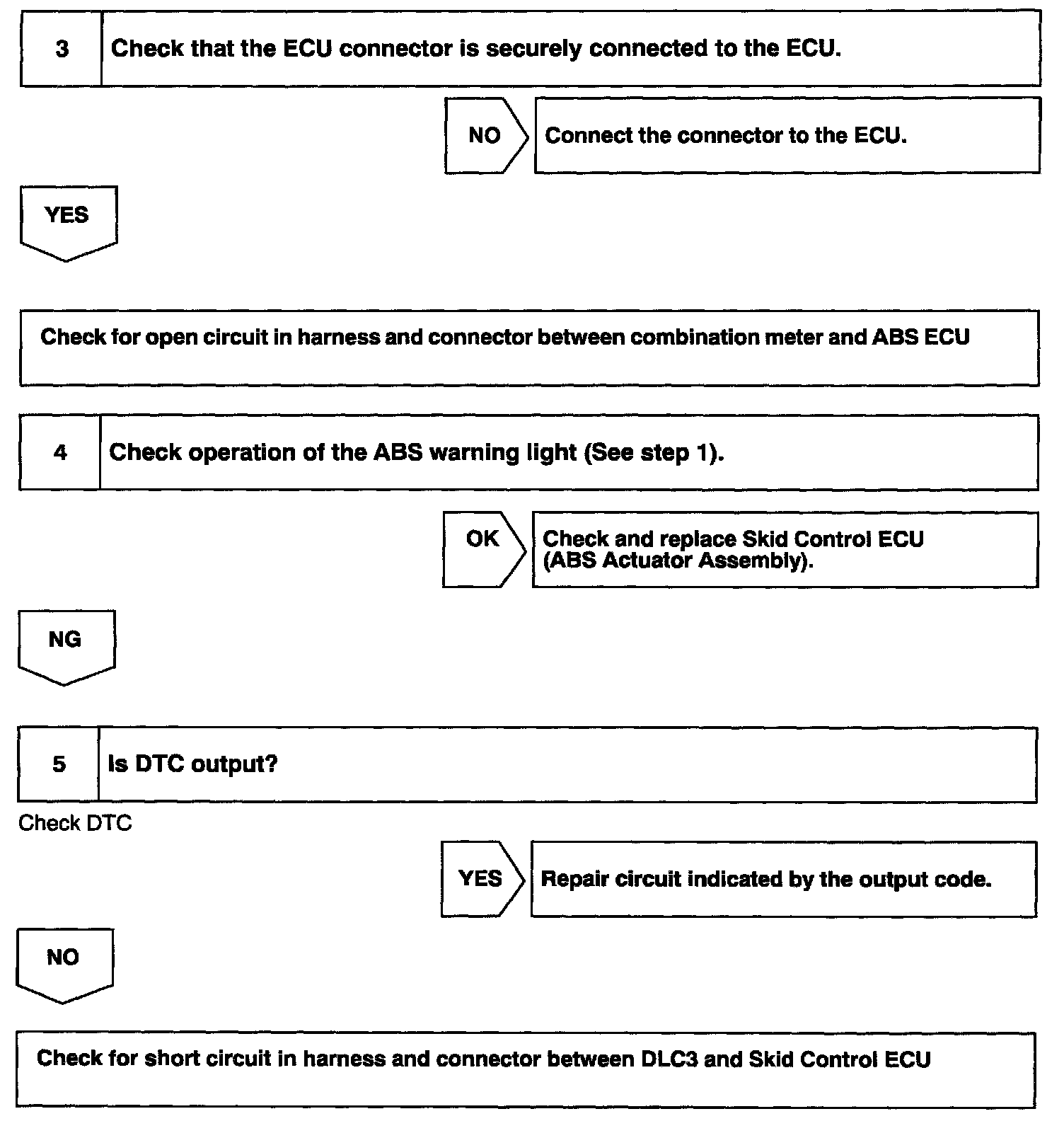

Step 3 - 5:
INSPECTION PROCEDURE

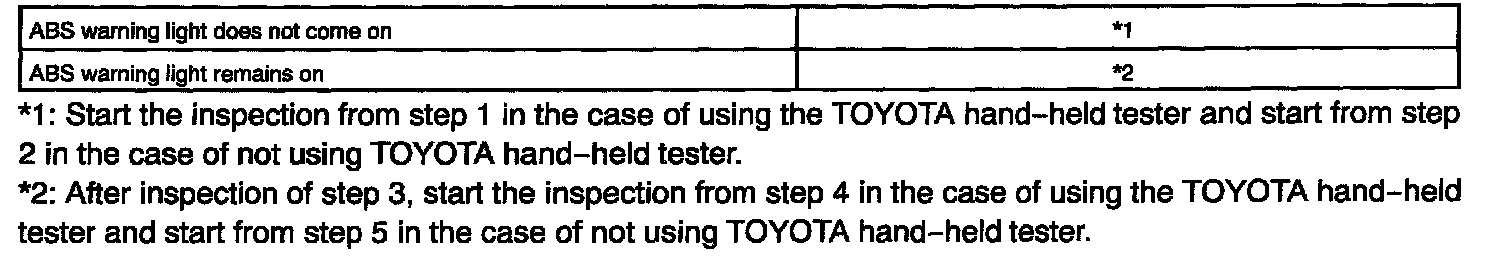

HINT: Troubleshoot in accordance with the chart for each trouble symptom.
