Without Scan Tool

b. Check the indicator.

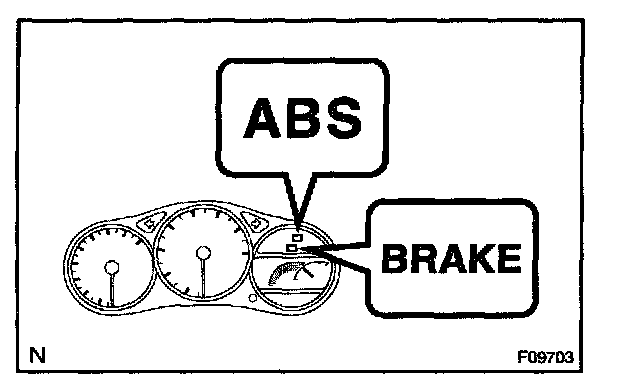

When the ignition switch is turned ON, check that the ABS warning light and the BRAKE warning light come on for approx. 3 seconds.

HINT:
- When the parking brake is applied or the level of the brake fluid is low, the BRAKE warning light come on.
- If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light circuit or BRAKE warning light circuit .

c. In the case of not using TOYOTA hand-held tester:
Check DTC.

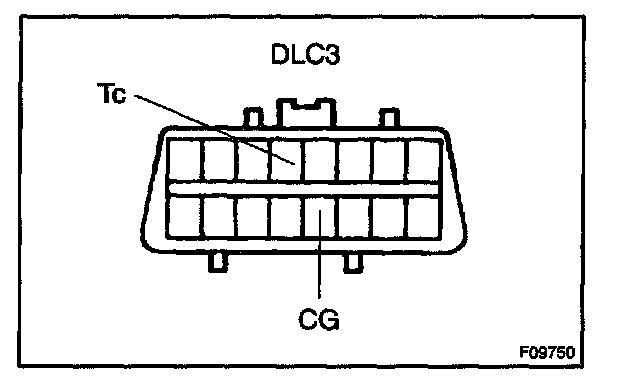

1. Using SST, connect terminal Tc and CG of DLC3.
SST 09843-18040

2. Turn the ignition switch to ON.
3. Read DTC from the ABS warning light on the combination meter.

HINT:
- If no code appears, inspect the diagnostic circuit or ABS warning light circuit.

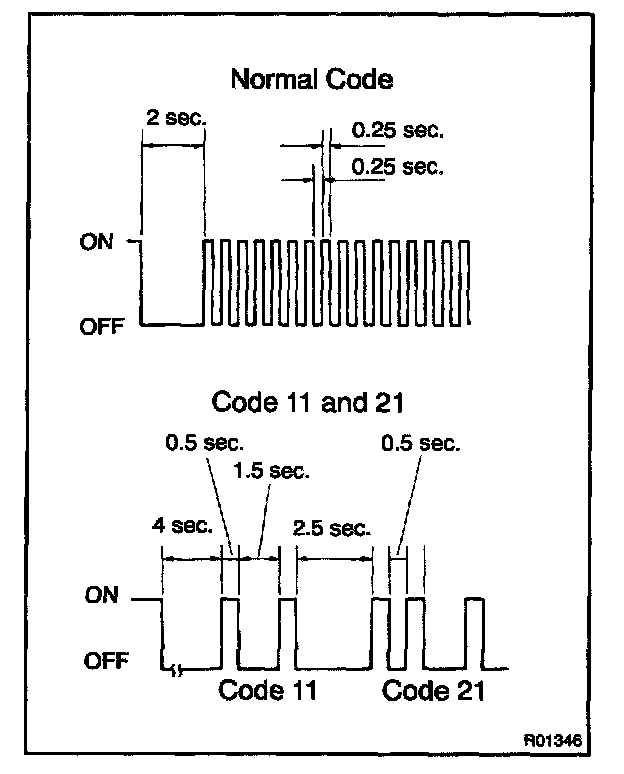

- As an example, the blinking patterns for normal code and codes 11 and 21 are shown.

4. Codes are explained in the code table.
5. After completing the check, disconnect terminal Tc and CG, and turn off the display.

If 2 or more malfunctions are indicated at the same time, the lowest numbered DTC will be displayed first.
