Active Test

ACTIVE TEST

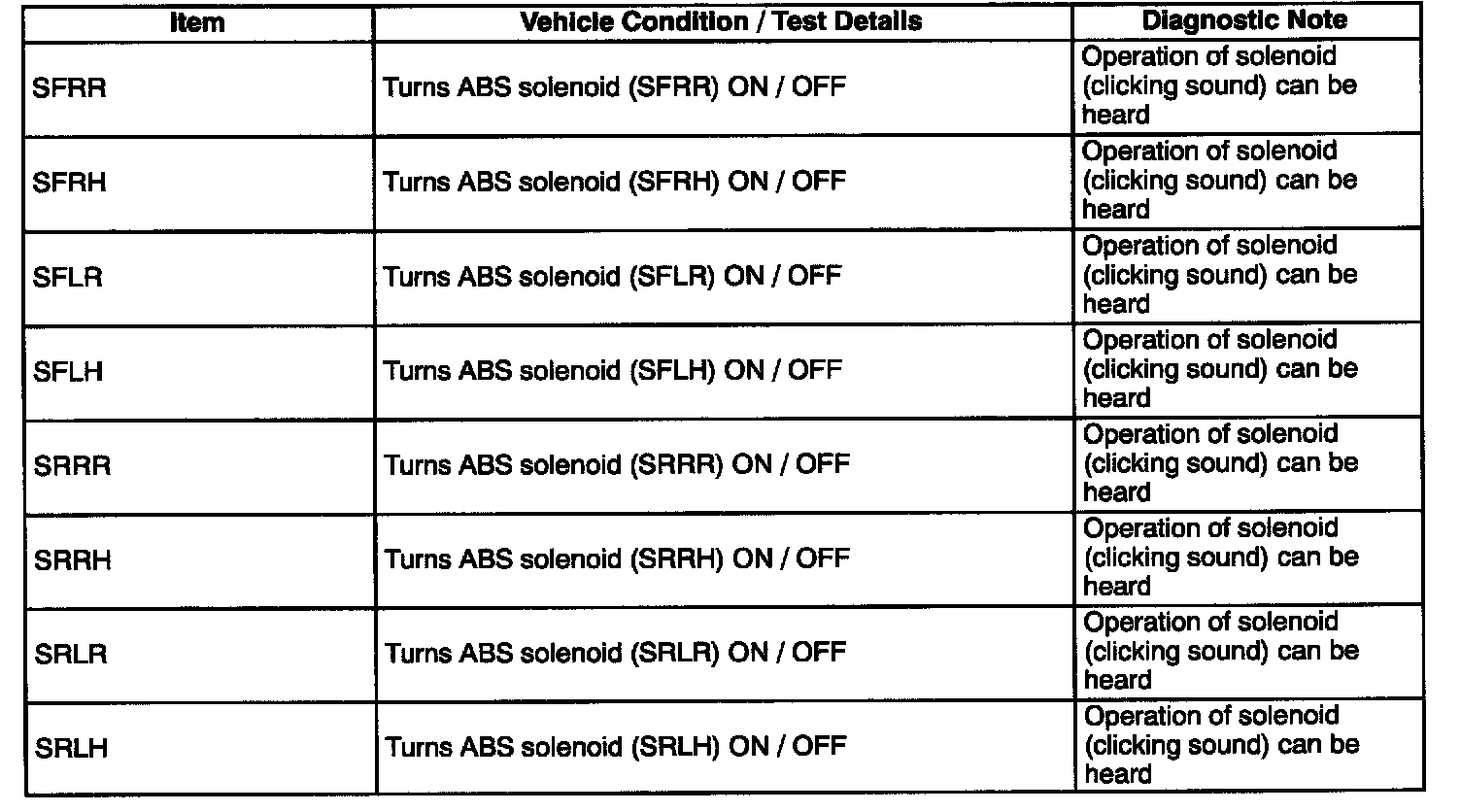

Part 1:

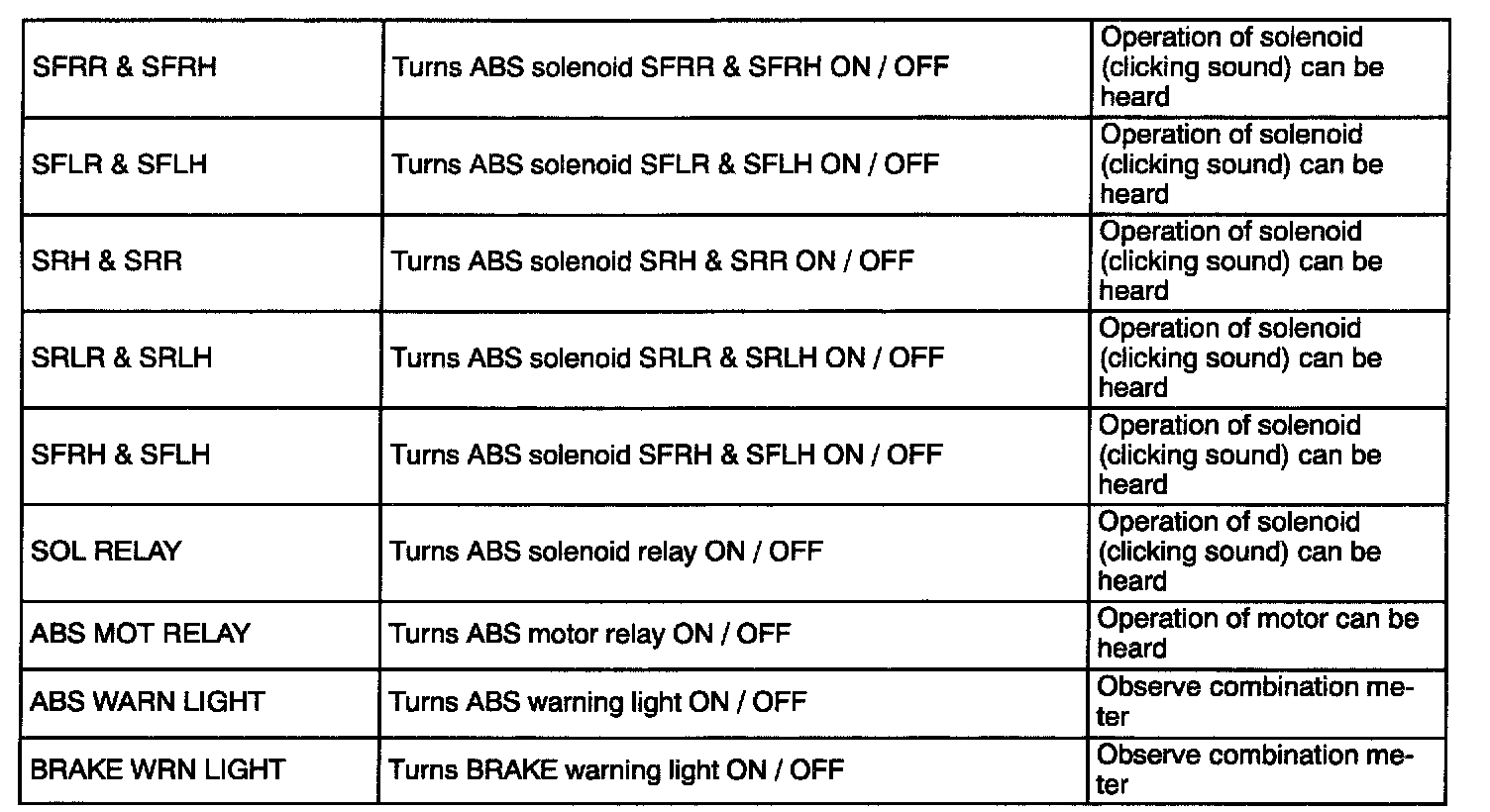

Part 2:

HINT:
Performing the ACTIVE TEST using the TOYOTA hand-held tester allows the relay, the actuator and so on to operate without parts removal. Performing the ACTIVE TEST as a first step of troubleshooting is one of the method to shorten the labor time.
It is possible to display the DATA LIST during the ACTIVE TEST.
a. Connect the TOYOTA hand-held tester to the DLC3.
b. Turn the ignition switch ON.
c. According to the display on tester, perform the "ACTIVE TEST".
