Data List

DATA LIST






HINT:
- By using the DATA LIST displayed by the hand-held tester, you can read the value of the switch, the sensor and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.
a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch ON.

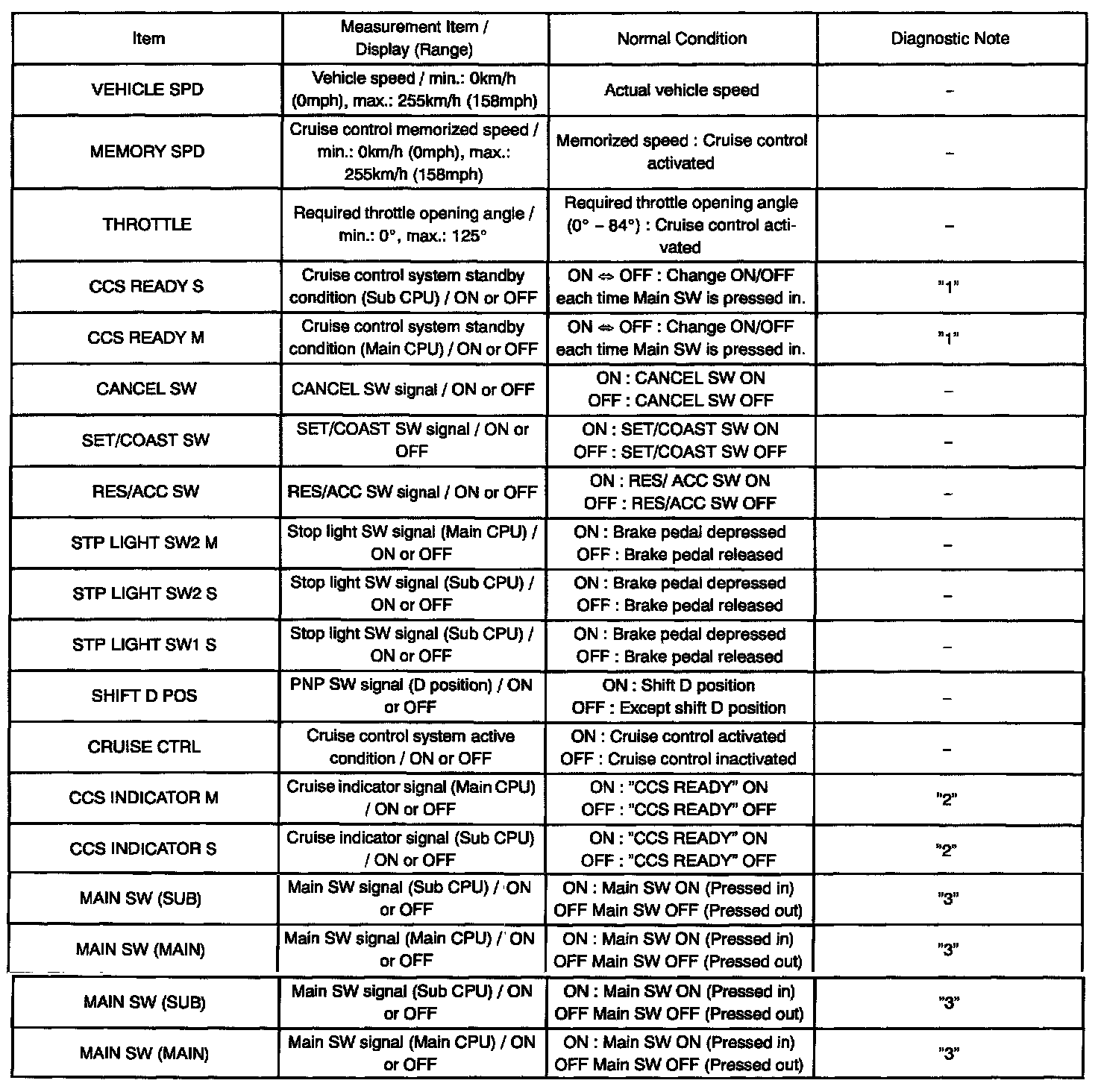

c. According to the display on tester, read the "DATA LIST".
- "3" is OK but "1" is NG -> ECM failure
- "1" is OK but "2" is NG -> DTC output or ECM failure
- "3" is OK but the cruise indicator does not turn on -> Indicator or W/H or ECM failure
